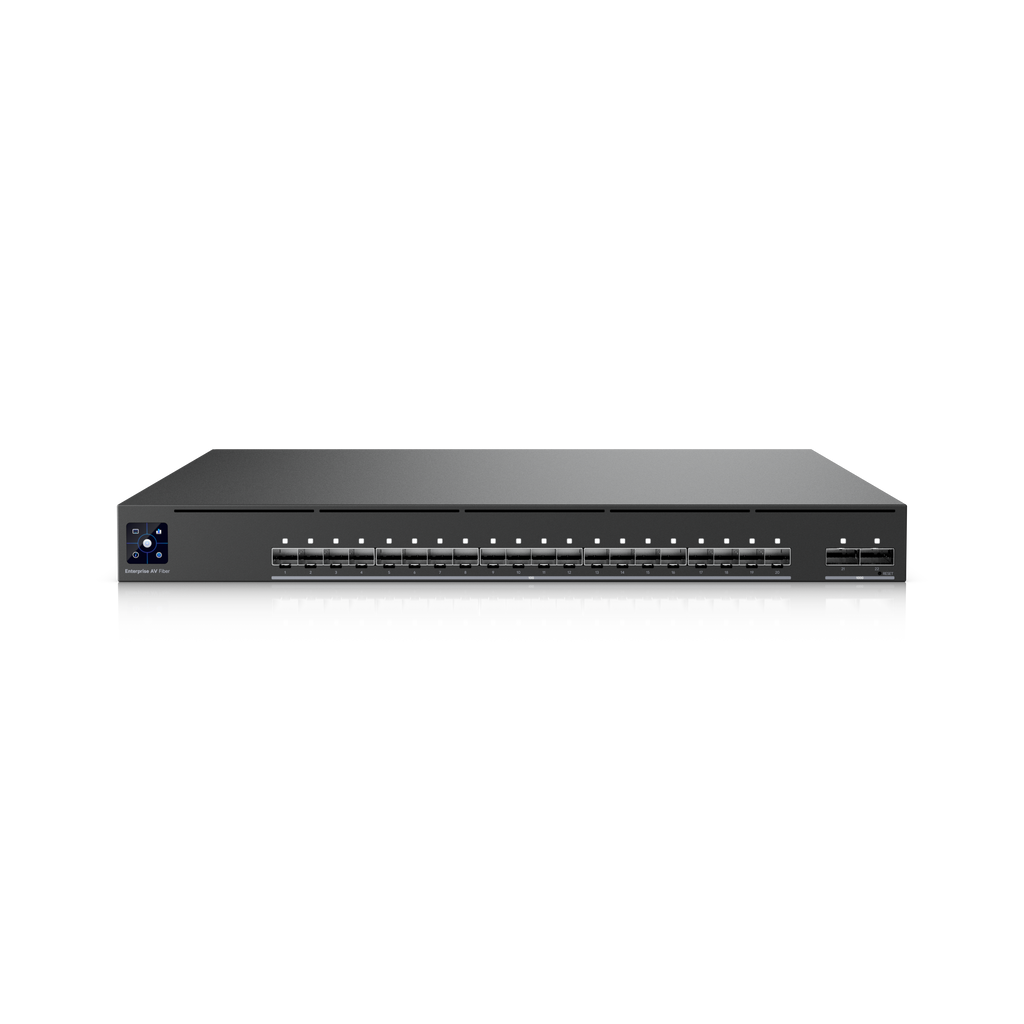

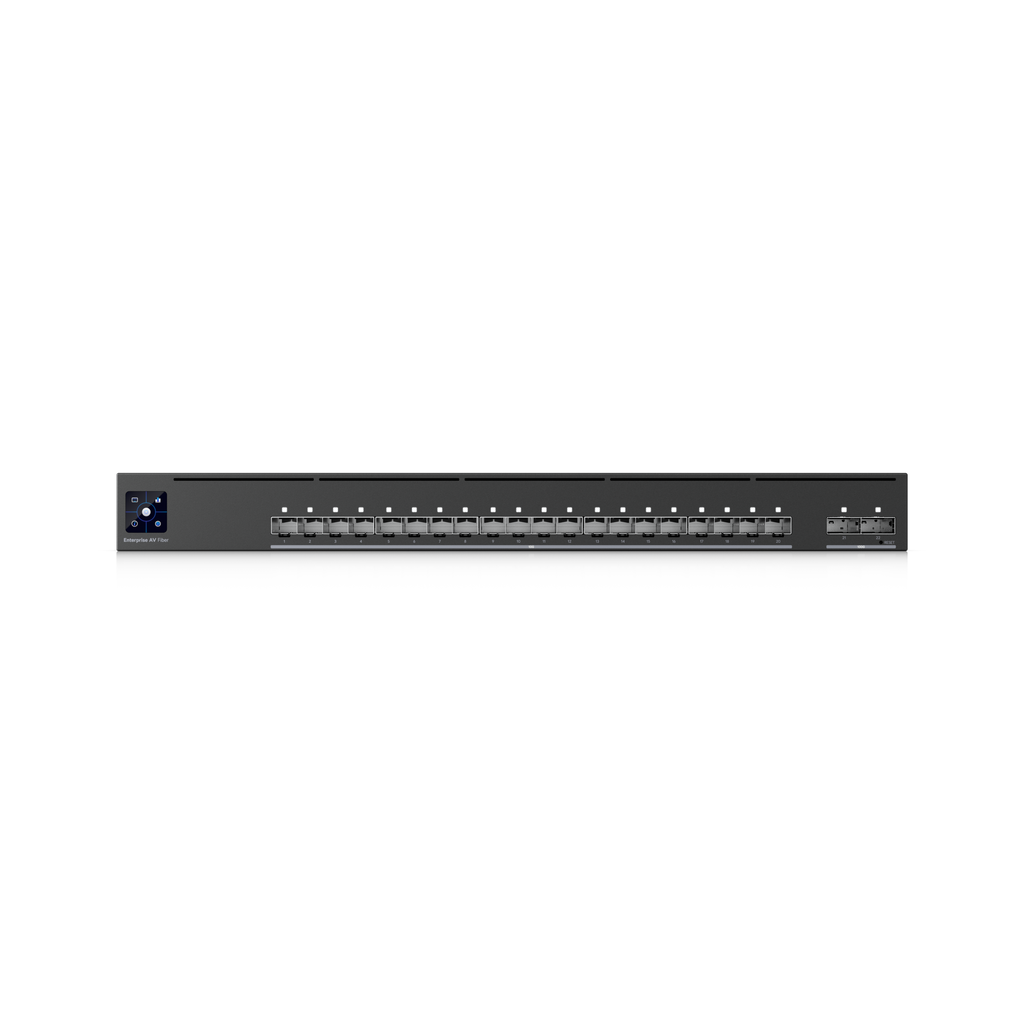

Switch Enterprise Audio/Video Fiber
EAV-Fiber
Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Enterprise Audio/Video switch with (20) 10G SFP+ and (2) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.
Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
EAV-Fiber was previously named EAV-Aggregation. This is a naming update only; no hardware changes have been made.
Specifications
Overview
| Dimensions | 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10G SFP+ | 20 (10G/1G) |
| 100G QSFP28 | 2 (100G/40G) Breakout cables are not supported |
| Console | 1 |
| SMA | 1 GPS input for Grandmaster clock mode |
| Redundancy | (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support |
Performance
| Switching Capacity | 800 Gbps |
| Total Non-Blocking Throughput | 400 Gbps |
| Forwarding Rate | 595 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Hardware
| Max. Power Consumption | 150W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 150W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR Serial Console |
| Heat Dissipation | 512 BTU/hr |
| Weight | Without mounting brackets: 8.95 kg (19.7 lb) With mounting brackets: 9.05 kg (20 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules Fan modules operate with 3 + 1 redundancy |
| ESD Protection | Air: ± 12KV, contact: ± 8KV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Downloads & documents
Build around the Switch Enterprise Audio/Video Fiber.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.

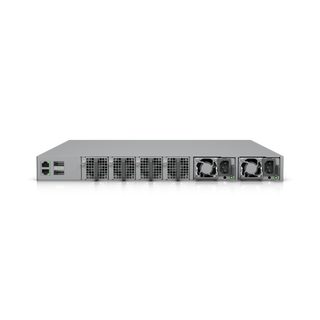

Switch Enterprise Campus 24S PoE

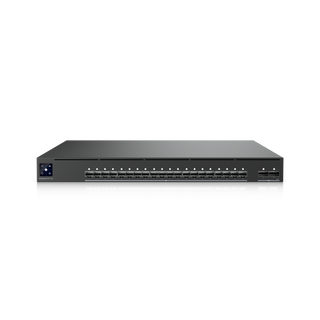

Switch Enterprise Audio/Video Fiber

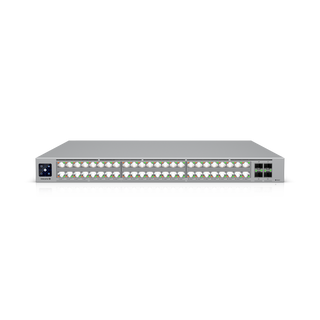

Switch Enterprise Campus 48 PoEAsked before checkout
