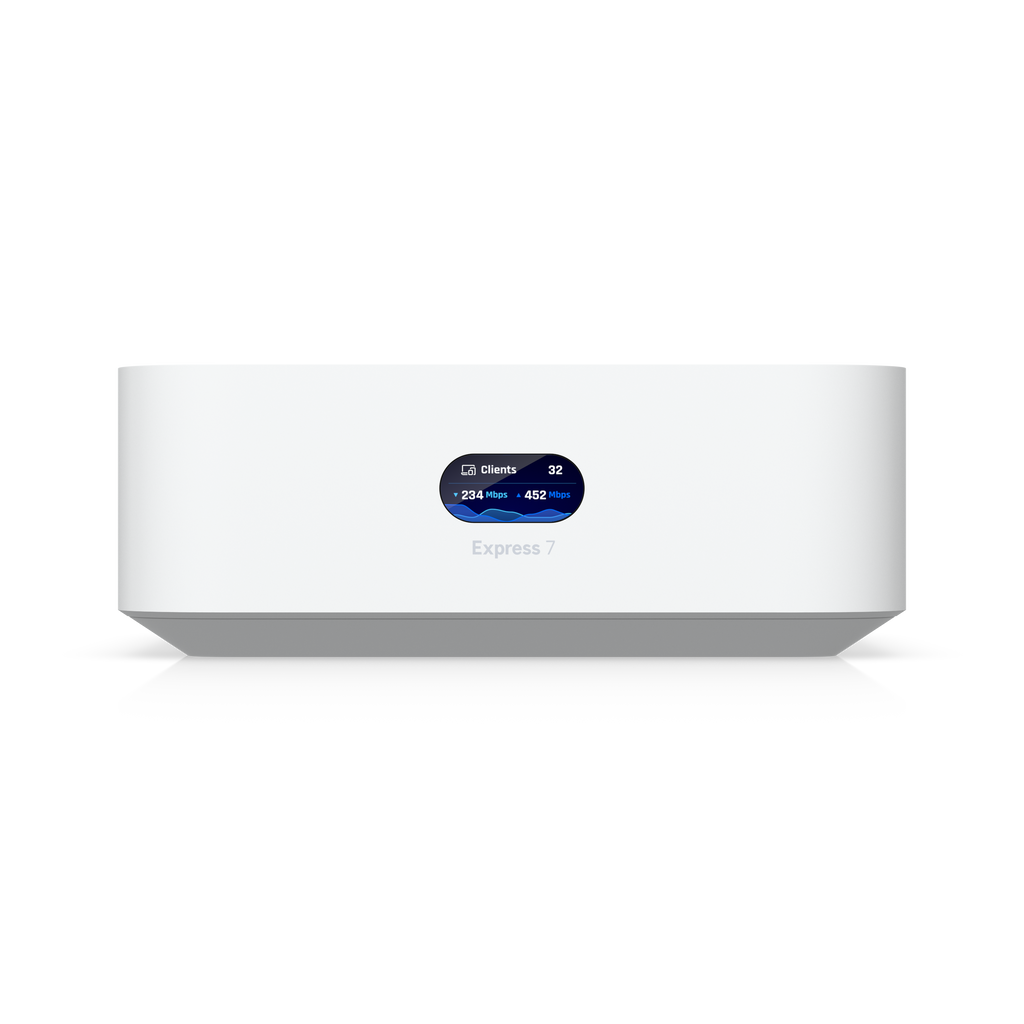

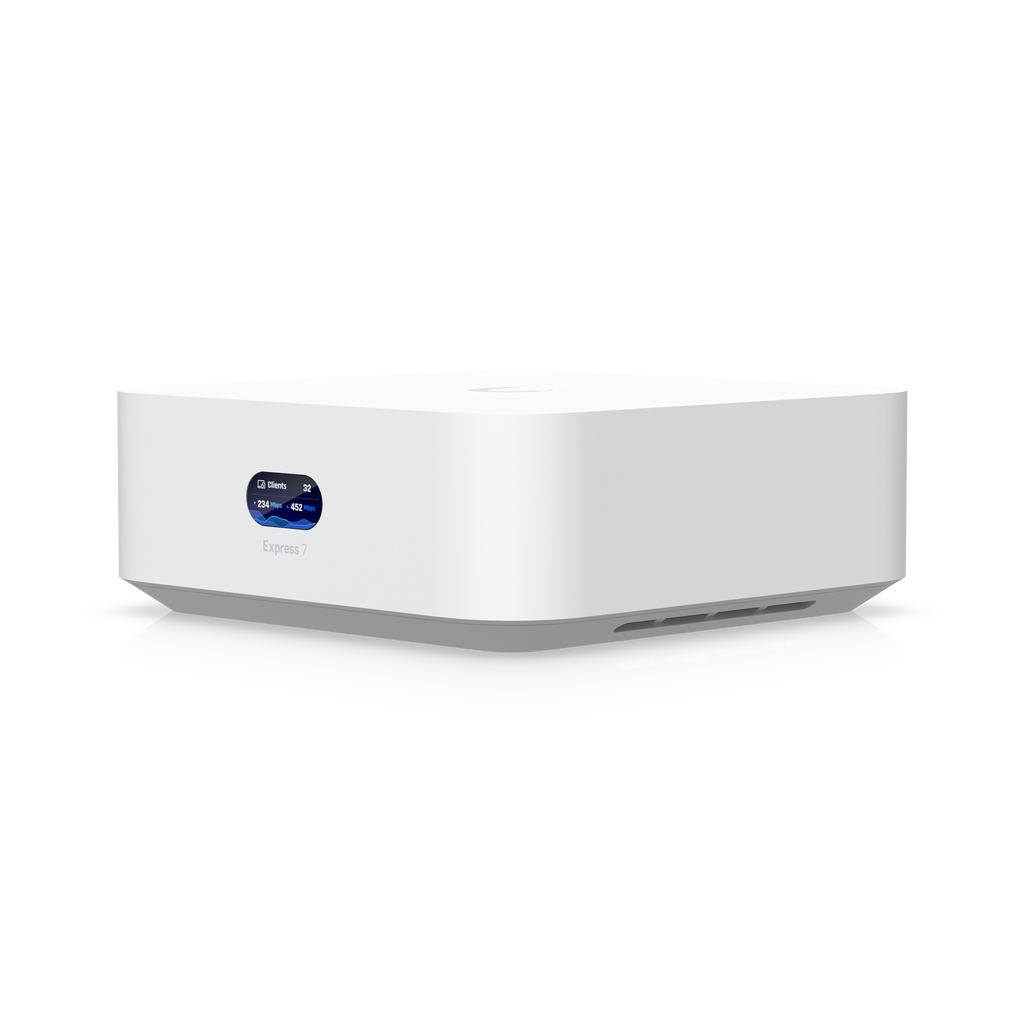

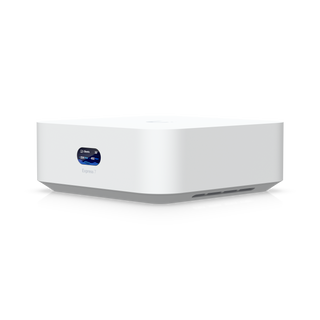

UniFi Express 7
UX7-US · US Version
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.Key features Integrated 6-stream WiFi 7 with 6 GHz support Optionally adopted as wired or meshed Layer 2 UniFi AP to extend...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Key features
Integrated 6-stream WiFi 7 with 6 GHz support
Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage
160 m² (1,750 ft²) coverage
Manages 30+ UniFi devices and 300+ clients
(1) 10 GbE RJ45 WAN port
(1) 2.5 GbE RJ45 LAN port to extend network
Specifications
Overview
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
Security
| IDS/IPS Signatures | 20,000+ with CyberSecure |
Integrated WiFi
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 6 dBi |
| 5 GHz | 7 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Hardware
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 75 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 443 g (1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06656-25-08356 |
Software
| VLAN | 802.1Q |
| UniFi Network | Version 9.0.108 and later |
Downloads & documents
Build around the UniFi Express 7.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cloud gateways. Most buyers reading this page should buy the middle column.

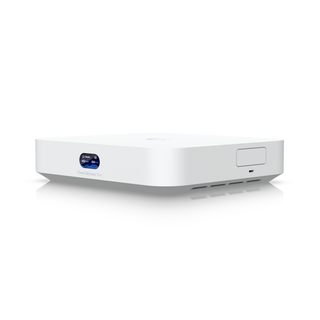

Cloud Gateway Max NS
UniFi Express 7

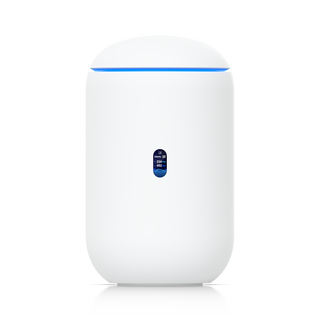

Dream Router 7Asked before checkout
