Switch Flex Mini
USW-Flex-Mini · US Version / Single Unit
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.Note. USB-C adapter included with single unit purchases.Key features (4) GbE ports (1) GbE...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.

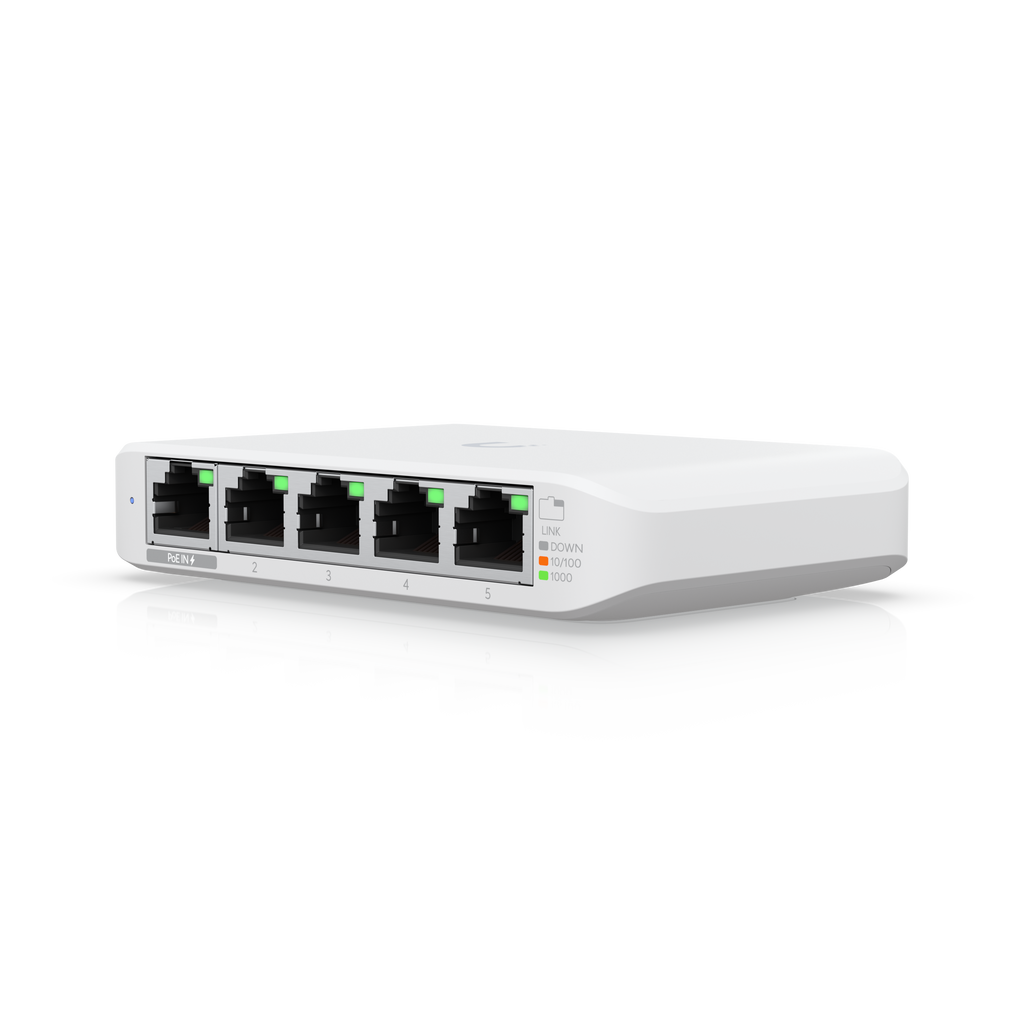

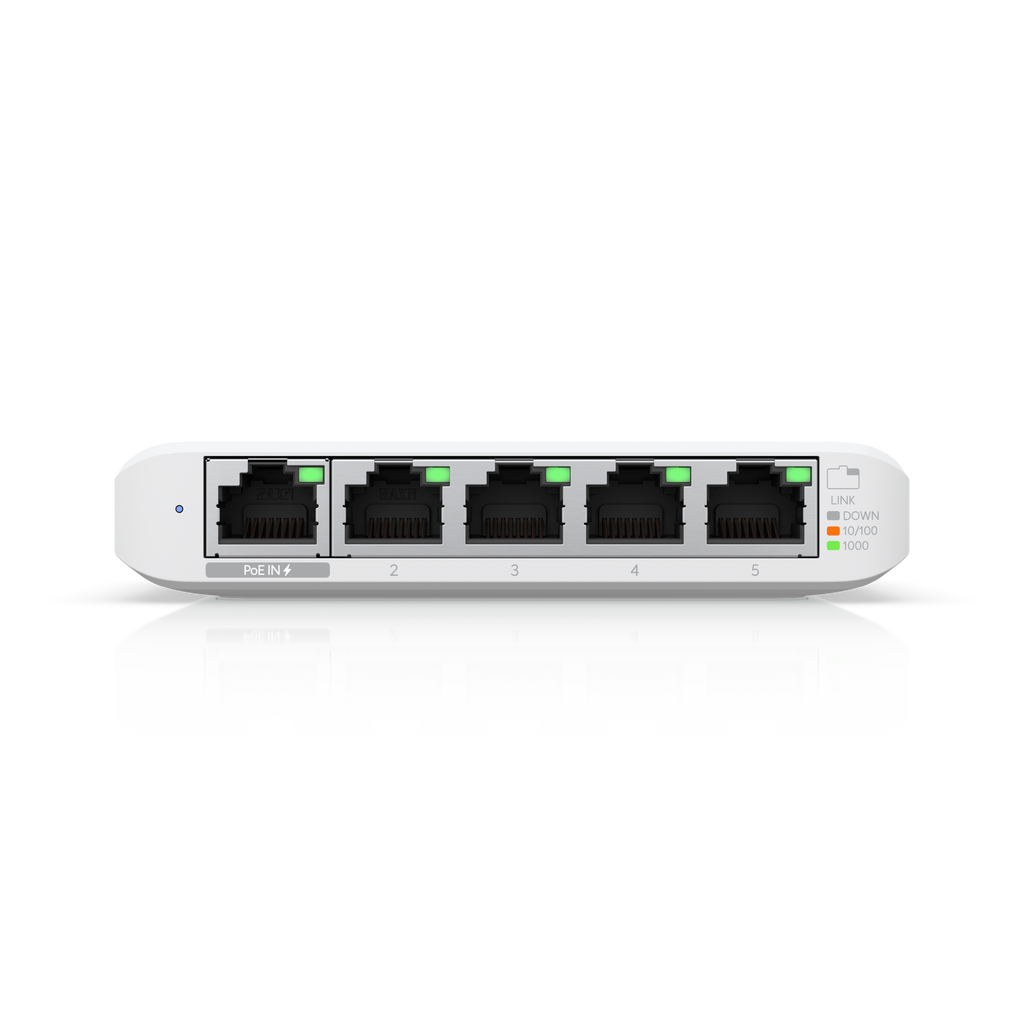

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
Note. USB-C adapter included with single unit purchases.
Key features
(4) GbE ports
(1) GbE PoE input port for power

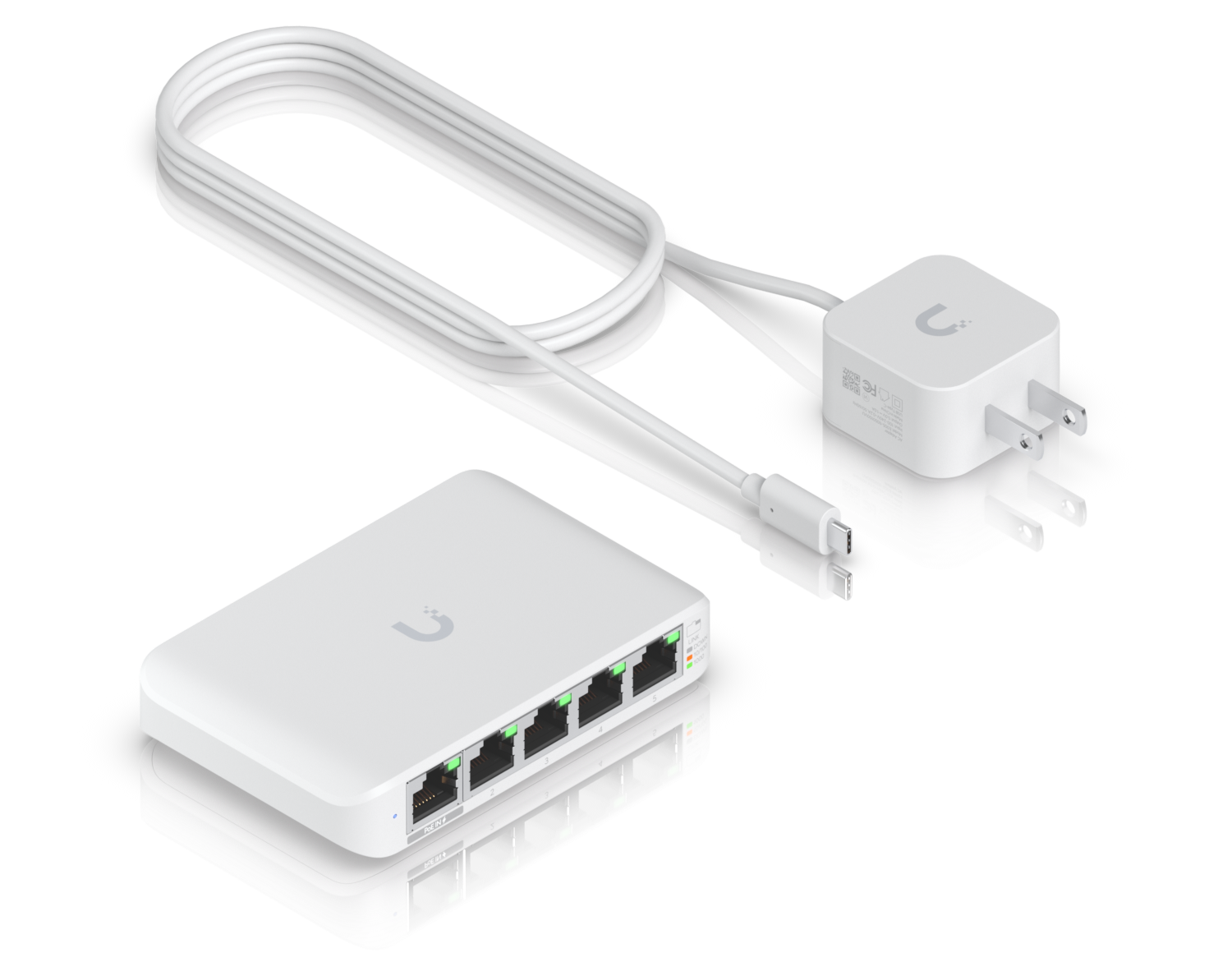

Optional powering with included 5V, 1A USB-C adapter*
*Adapter included with single unit purchases.
Specifications
Overview
| Dimensions | 107 x 70 x 21 mm (4.2 x 2.8 x 0.8") |
| 1 GbE RJ45 | 5 (1G/100M/10M) |
| Form Factor | Compact desktop |
Performance
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
Hardware
| Max. Power Consumption | 2.5W |
| Power Method | (1) USB Type-C, 5V DC, 1A (1) PoE |
| Power Input Method | USB Input PoE |
| Power Supply | AC/DC, external, 5W |
| Supported Voltage Range | 4.8—5.2V DC/USB 44V—57V PoE |
| Management | Ethernet |
| Heat Dissipation | 6.8 BTU/hr |
| Weight | 150 g (5.3 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 14501-20-08356 |
Software
| UniFi Network | Version 5.12.5 and later |
Downloads & documents
Build around the Switch Flex Mini.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.
Switch Flex Mini

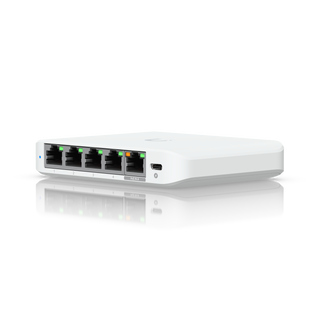

Switch Flex Mini 2.5GAsked before checkout
