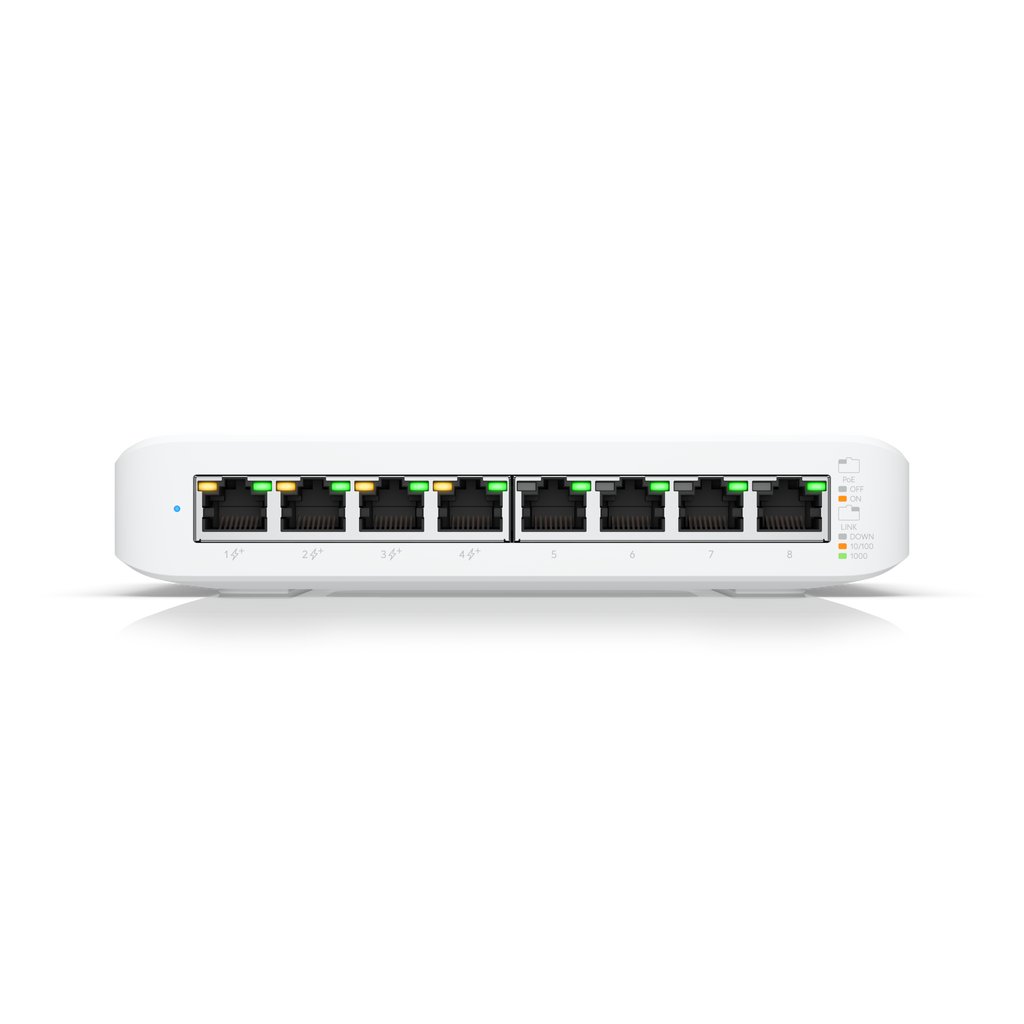

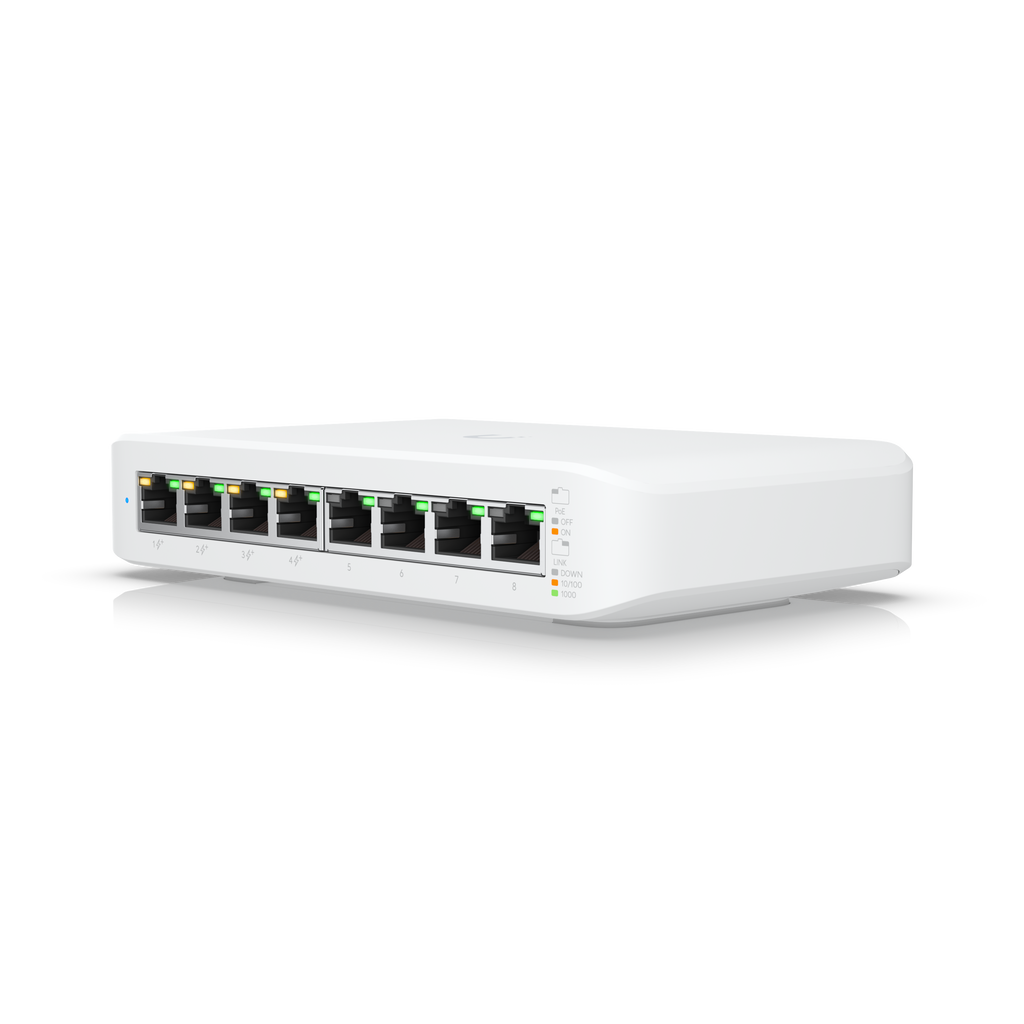

Switch Lite 8 PoE
USW-Lite-8-POE · US Version
An 8-port, Layer 2 PoE switch supporting silent fanless cooling.Note. 52W total PoE availability with an external 60W power adapter.Key features (4) GbE PoE+, (4) GbE ports 52W total PoE...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
An 8-port, Layer 2 PoE switch supporting silent fanless cooling.
Note. 52W total PoE availability with an external 60W power adapter.
Key features
(4) GbE PoE+, (4) GbE ports
52W total PoE availability*
Wall mountable
*With an external 60W power adapter.
Specifications
Overview
| Dimensions | 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3") |
| 1 GbE RJ45 | 8 (4 PoE+) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 52W With an external 60W power adapter |
| Form Factor | Compact desktop, wall |
Performance
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE+ | 4 |
| PoE+ | 30W |
| Max. Power Consumption | 8W (Excluding PoE Output) 60W (Including PoE Output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50–57V DC |
| Management | Ethernet |
| Heat Dissipation | 27.3 BTU/hr (Excluding PoE Output) |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
Software
| UniFi Network | Version 7.2.94 and later |
Downloads & documents
Build around the Switch Lite 8 PoE.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.

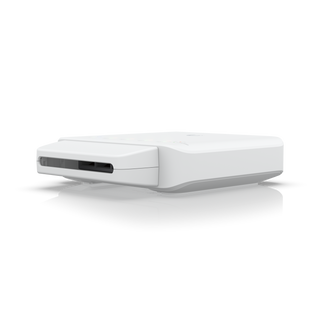

Switch Flex
Switch Lite 8 PoE

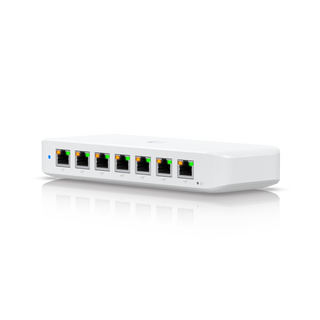

Switch UltraAsked before checkout
