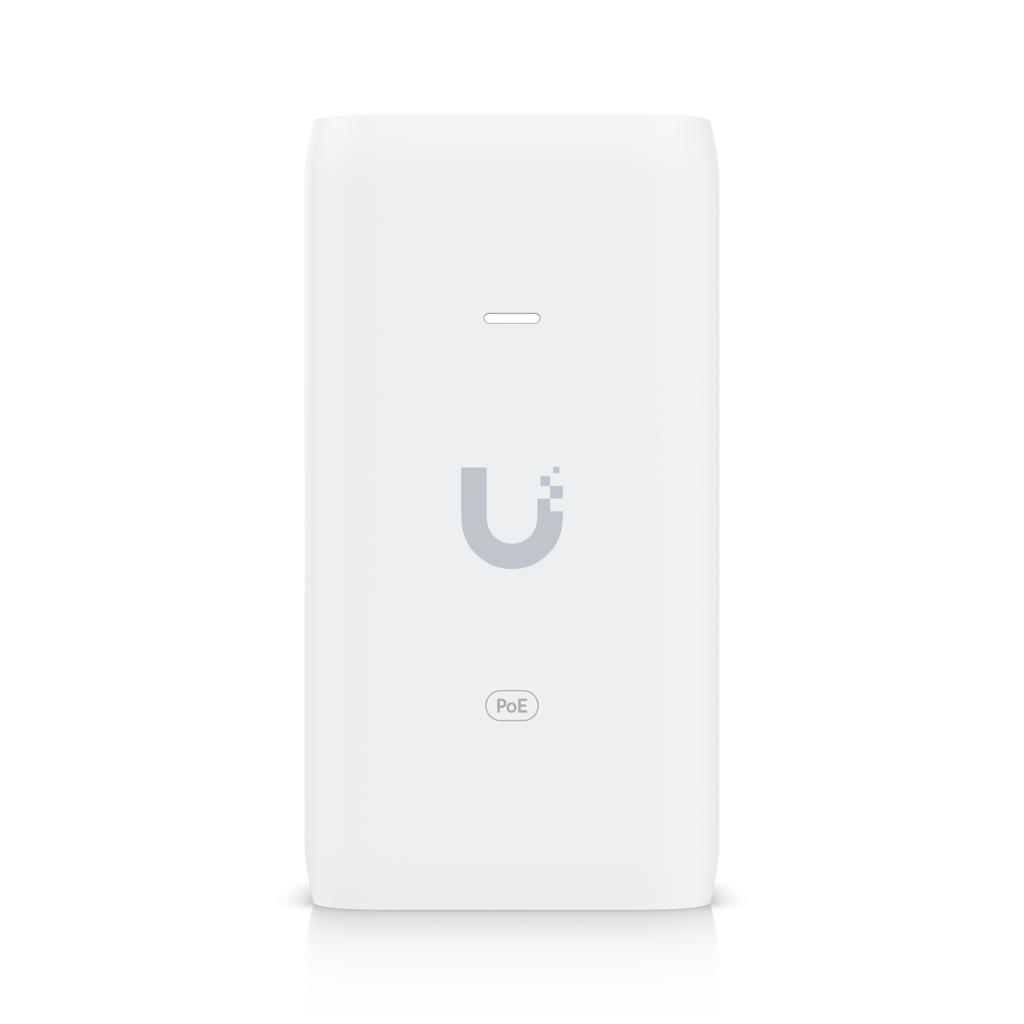

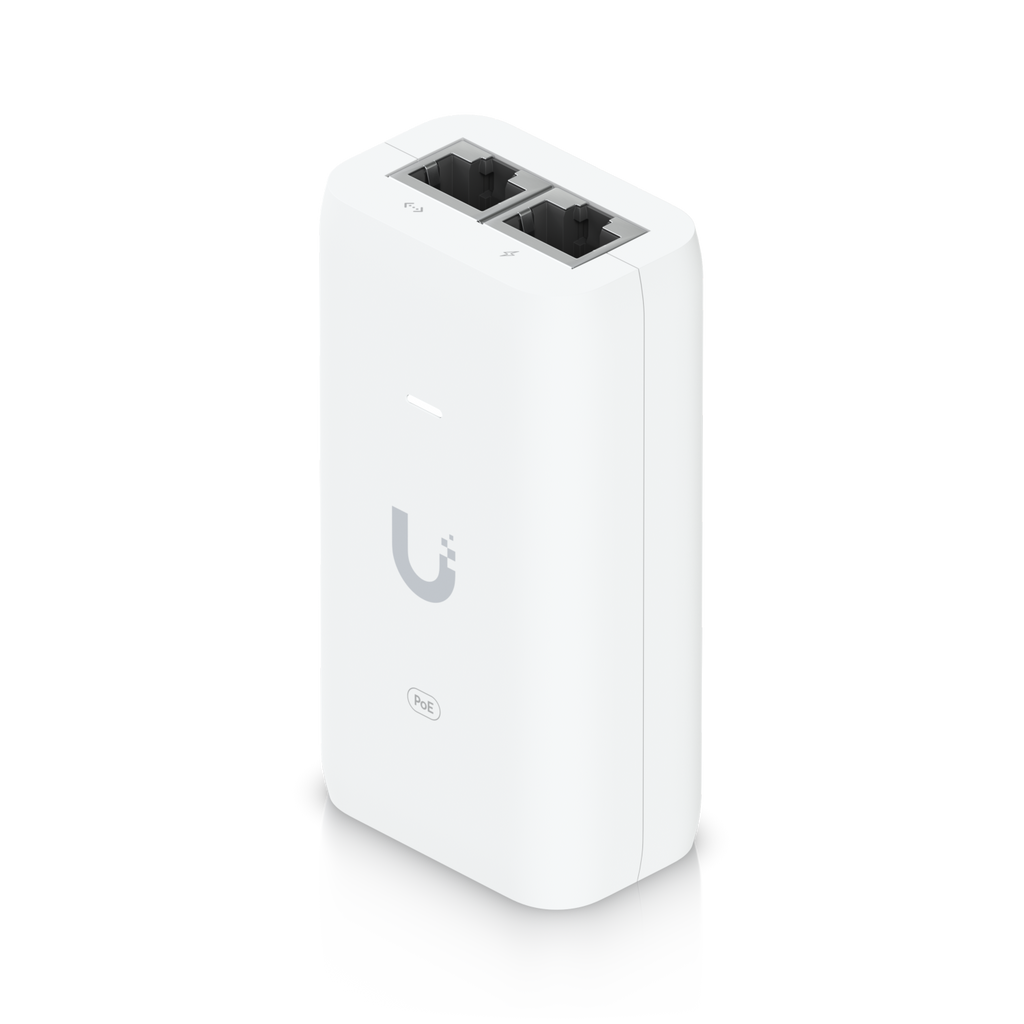

UniFi PoE Adapter (15W)
U-PoE
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.Key features Delivers up to 15W of PoE Surge, peak pulse,...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Key features
Delivers up to 15W of PoE
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
Specifications
Overview
| Dimensions | 86 x 46 x 33 mm (3.4 x 1.8 x 1.3") |
| Weight | 100 g (3.5 oz) |
| Power Cable | Included |
| Output Voltage | 48V DC @ 0.32A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V Power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 500mA Max. |
| Inrush Current | <100A peak at 25°C |
| Efficiency | 84.25+% |
| Switching Frequency | 65 kHz |
| Output Ripple | 200mV pp |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, CCC |
Downloads & documents
Build around the UniFi PoE Adapter (15W).
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from accessories & cables. Most buyers reading this page should buy the middle column.

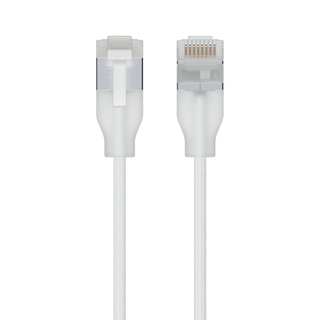

UniFi Premium Patch Cable
UniFi PoE Adapter (15W)

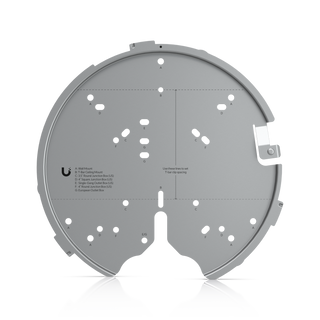

Flagship AP Replacement Mounting SystemAsked before checkout
