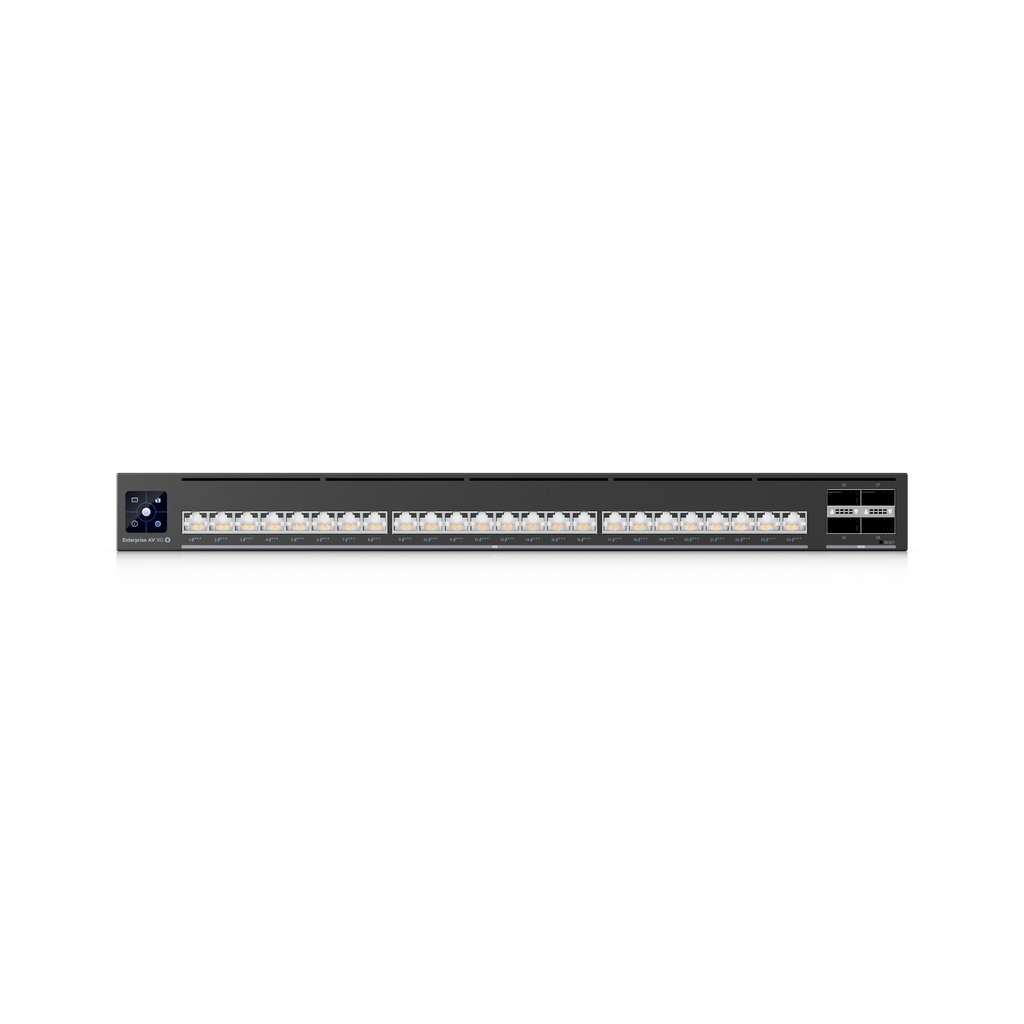

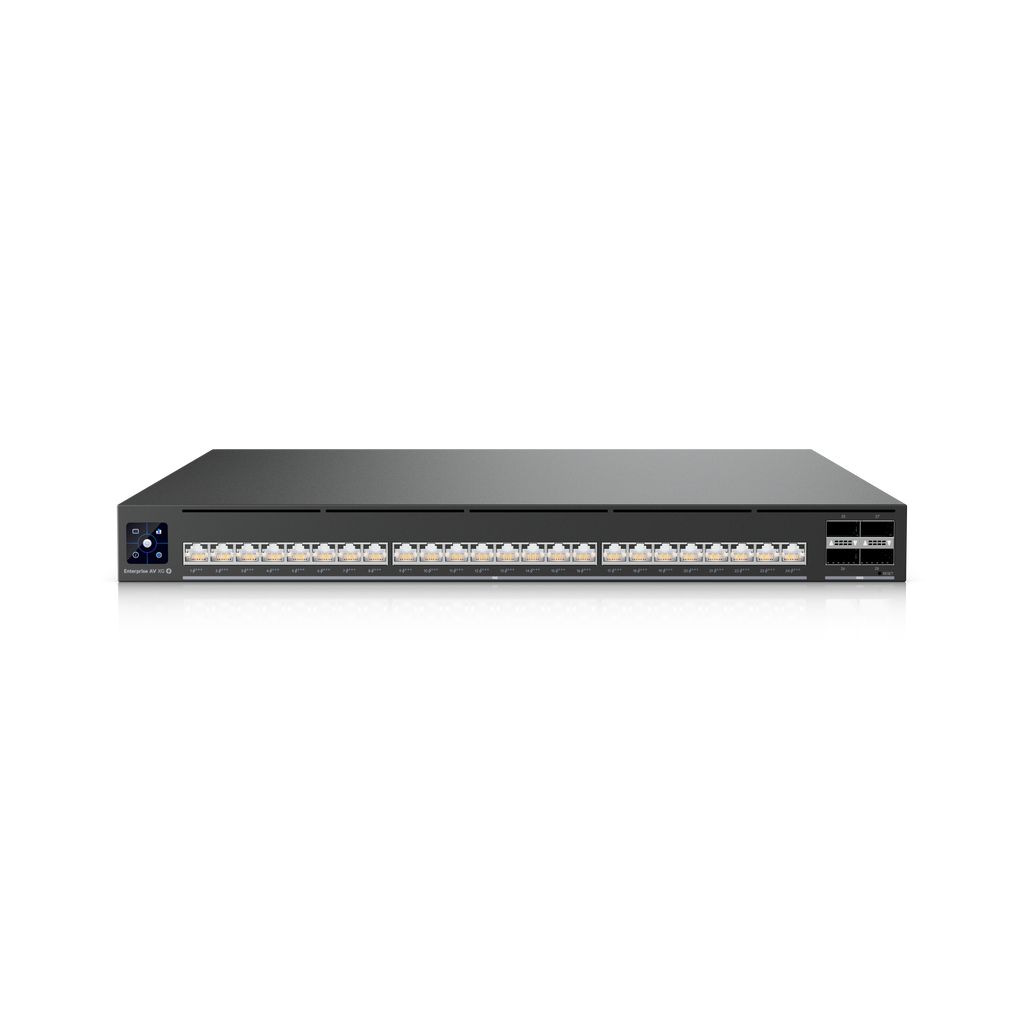

Switch Enterprise Audio/Video XG 24 PoE
EAV-XG-24-PoE
Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support.
Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
EAV-XG-24-PoE was previously named EAV-24-PoE. This is a naming update only; no hardware changes have been made.
Specifications
Overview
| Dimensions | 442.4 x 480 x 43.7 mm (17.4 x 18.9 x 1.7") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10 GbE RJ45 | 24 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 10/100M half-duplex not supported |
| 100G QSFP28 | 4 (100G/40G) Breakout cables are not supported |
| Console | 1 |
| SMA | 1 GPS input for Grandmaster clock mode |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules |
| Redundancy | (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support |
Performance
| Switching Capacity | 1,280 Gbps |
| Total Non-Blocking Throughput | 640 Gbps |
| Forwarding Rate | 810 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Hardware
| PoE+++ | 24 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR Serial Console |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.85 kg (21.7 lb) With mounting brackets: 9.95 kg (21.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules Fan modules operate with 3 + 1 redundancy |
| ESD Protection | Air: ± 2KV, contact: ± 8KV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
