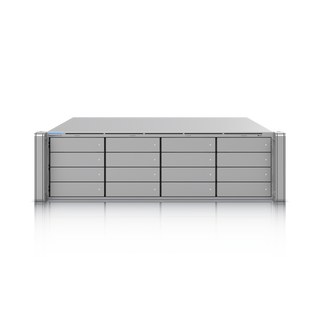

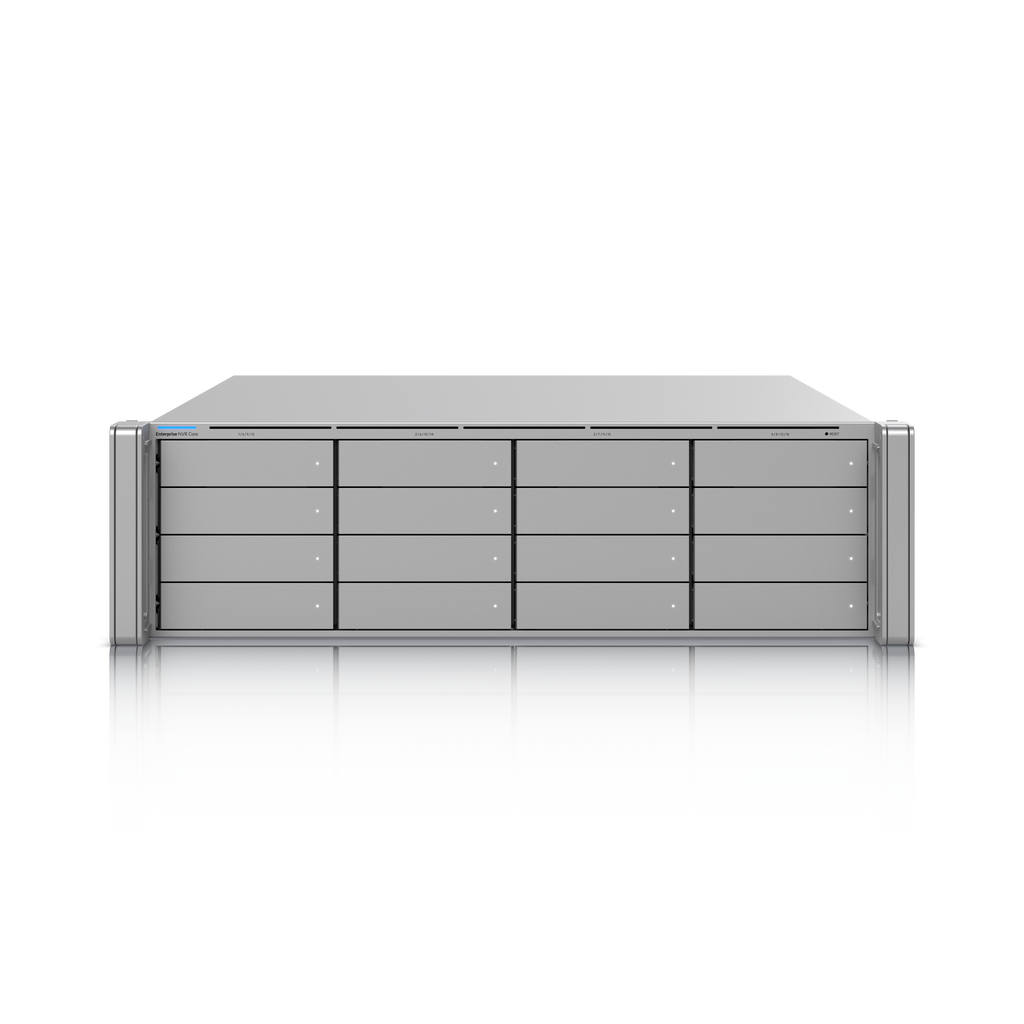

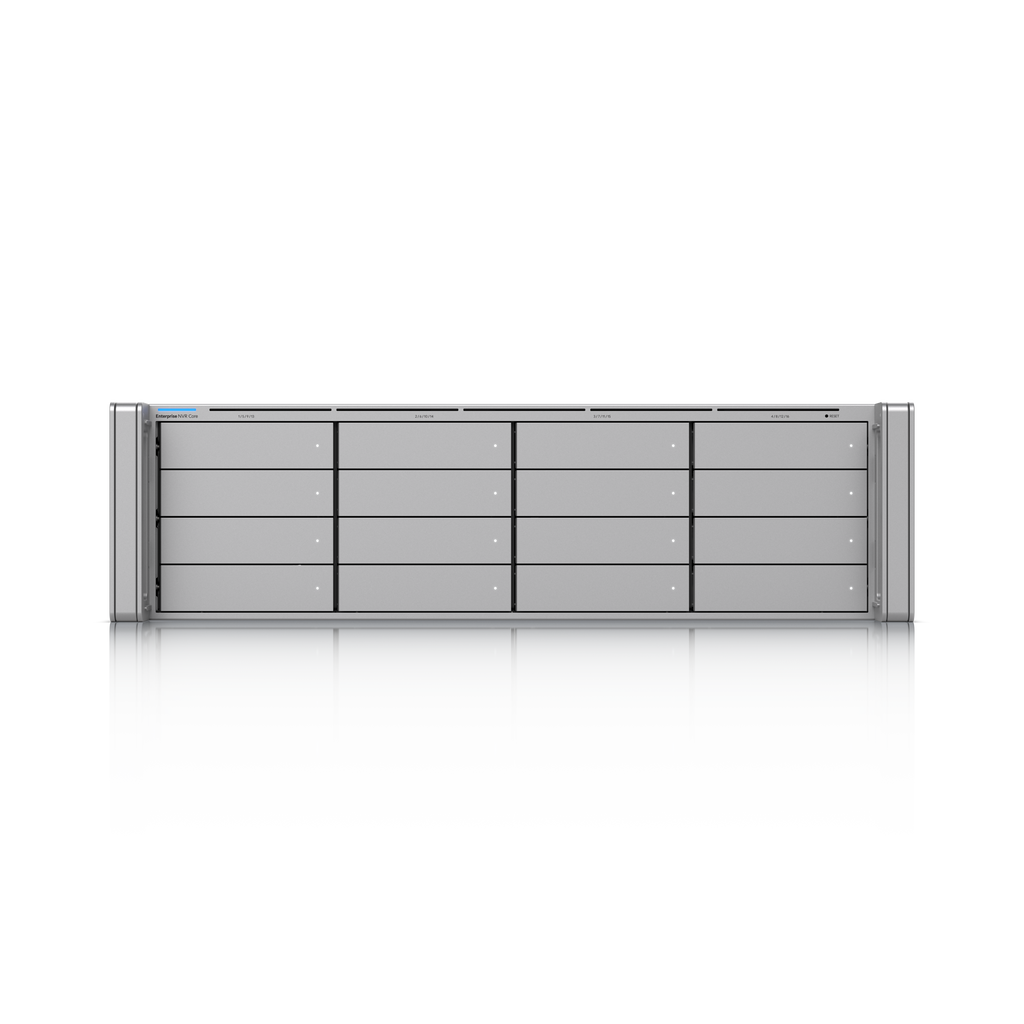

Enterprise NVR Core
ENVR-Core
3U UniFi Protect NVR with 16-bay support for 2.5"/3.5" HDDs/SSDs, up to (300) 4K or (500) Full HD cameras, hot-swappable power supplies and optional 16-bay storage expansion units.SpecificationsOverview Dimensions 481.4...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
3U UniFi Protect NVR with 16-bay support for 2.5"/3.5" HDDs/SSDs, up to (300) 4K or (500) Full HD cameras, hot-swappable power supplies and optional 16-bay storage expansion units.
Specifications
Overview
| Dimensions | 481.4 x 550 x 132 mm (19 x 21.7 x 5.2") |
| Managed Cameras | (500) HD (400) 2K (300) 4K |
| Managed Access Hubs | 300+ |
| Storage Capacity | (16) 3.5" drive bays |
| Networking Interface | (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M) 10G/25G mixed-speed operation across ports not supported (1G/10G and 1G/25G mixing supported) |
| Expansion Port | (2) SFF-8644 ports (24G) |
| Form Factor | Rack Mount (3U) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
Hardware
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD Expansion requires UACC-ESE-16 (Coming soon) |
| Max. Power Budget for Drives | 313W |
| Max. Power Consumption | 237W Excluding HDD power consumption |
| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 128-core Arm® v8.2 at 2.6 GHz |
| Memory | 64 GB |
| Management | Ethernet Bluetooth |
| Weight | Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |
| Slide Rails | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42") |
| Faceplate | Support UACC-3U-Bezel-Lite (Included) |
| Ambient Operating Temperature | 10 to 35° C (50 to 95° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Mobile App | UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |
Downloads & documents
