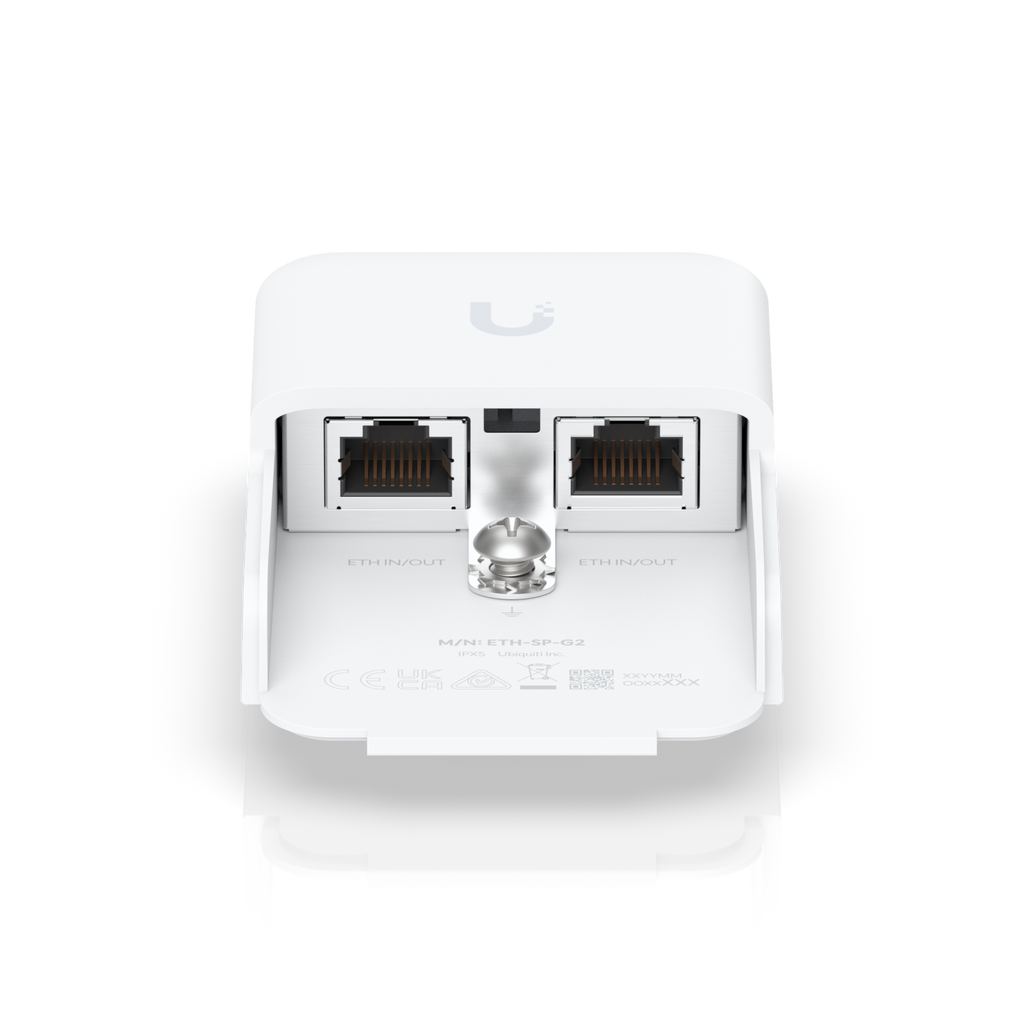

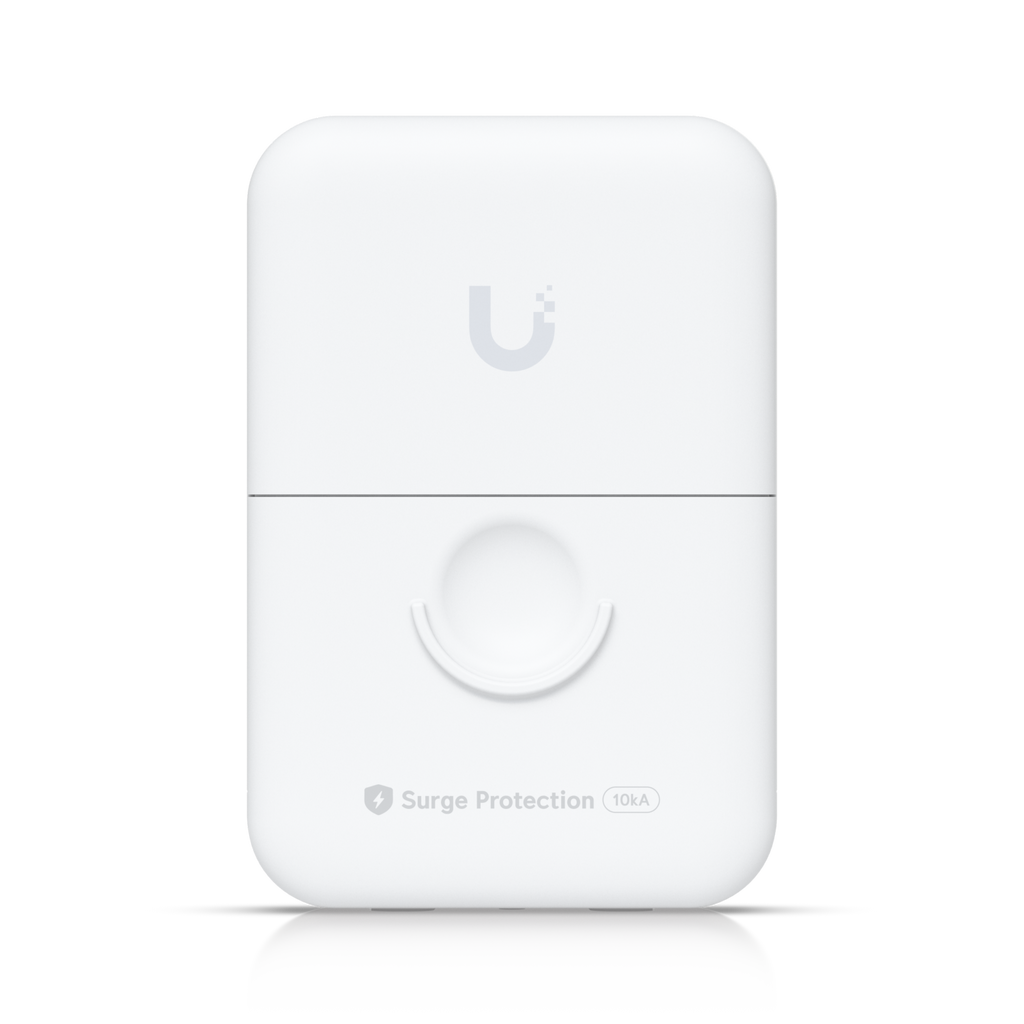

Ethernet Surge Protection Outdoor (10kA)
ETH-SP-G2
ESD protection for outdoor high-speed networks.Key features Protects outdoor Ethernet devices (2) Passive, surge-protected RJ45 connections Quick and easy installation Compatible with 2.5 GbE networksSpecificationsMechanical Dimensions 91 x 61 x...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
ESD protection for outdoor high-speed networks.
Key features
Protects outdoor Ethernet devices
(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with 2.5 GbE networks
Specifications
Mechanical
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 80 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
Hardware
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 700V @ 1kV/µs |
| Discharge Current | 10kA+ |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 2.5 Gbps |
| ESD Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
Downloads & documents
Build around the Ethernet Surge Protection Outdoor (10kA).
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from accessories & cables. Most buyers reading this page should buy the middle column.

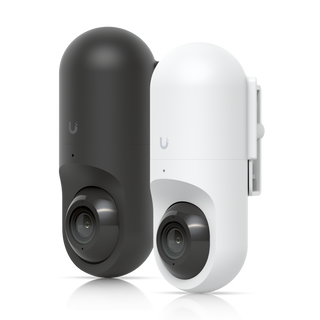

Flex Pro Mount
