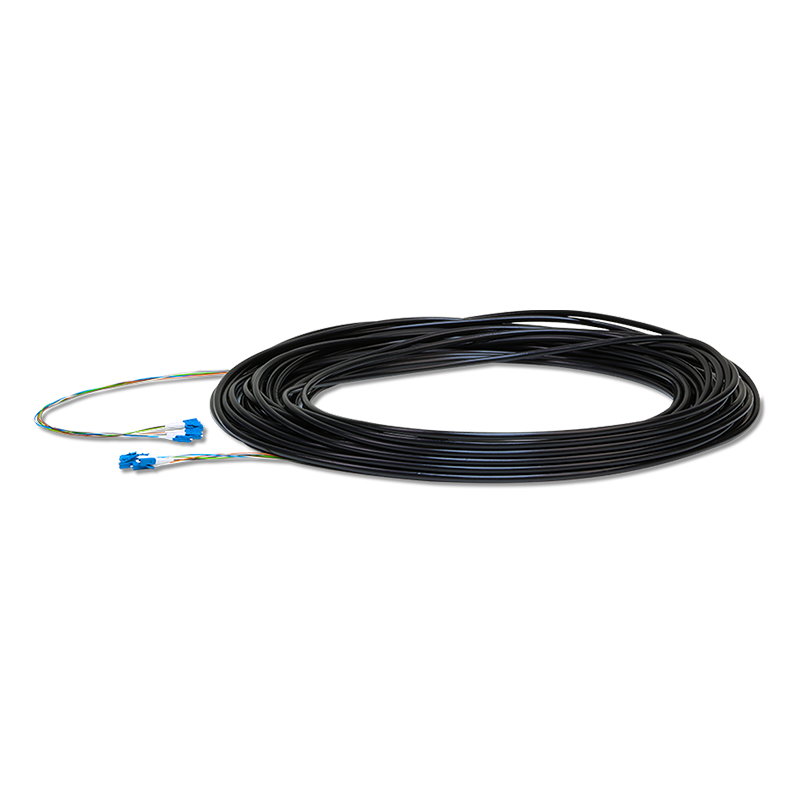

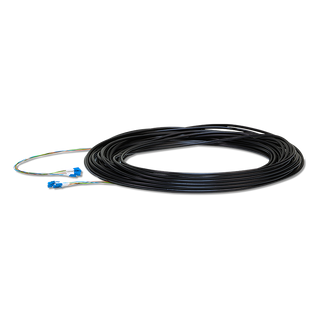

OS1 Simplex LC UPC Fiber Patch Cable
FC-SM-100 · 30.5 m
Outdoor OS1 single-mode fiber cable with simplex LC UPC connectors.Key features OS1 single-mode fiber Simplex LC UPC connectors Cable length: 30.5 to 91.5 m Outdoor-rated jacket with ripcord Kevlar yarn...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Outdoor OS1 single-mode fiber cable with simplex LC UPC connectors.
Key features
OS1 single-mode fiber
Simplex LC UPC connectors
Cable length: 30.5 to 91.5 m
Outdoor-rated jacket with ripcord
Kevlar yarn for added tensile strength
Specifications
Overview
| Available Lengths | 30.5/61/91.5 m (100/200/300 ft) |
| Pack Options | Single Unit |
| Connector | (12) Simplex LC UPC |
| Operating Environment | Outdoor |
| Weatherproofing | IP65 Not including connectors |
| Fiber Mode | OS1 |
| Jacket Diameter | 6 mm (0.24") |
| Jacket Material | Thermoplastic polyurethane (TPU) with Kevlar strength member inside |
| Jacket Color | Black |
| Wavelength | 1310/1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.5 dB |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
