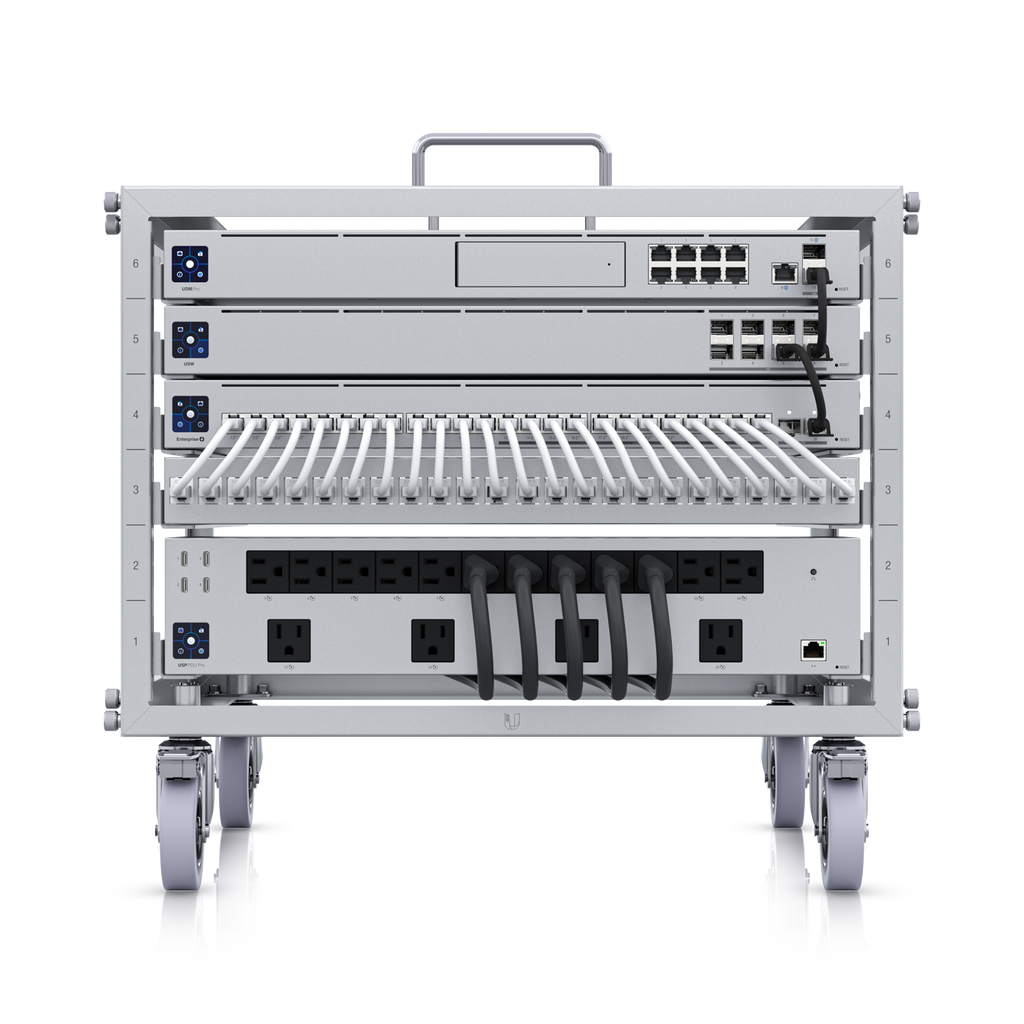

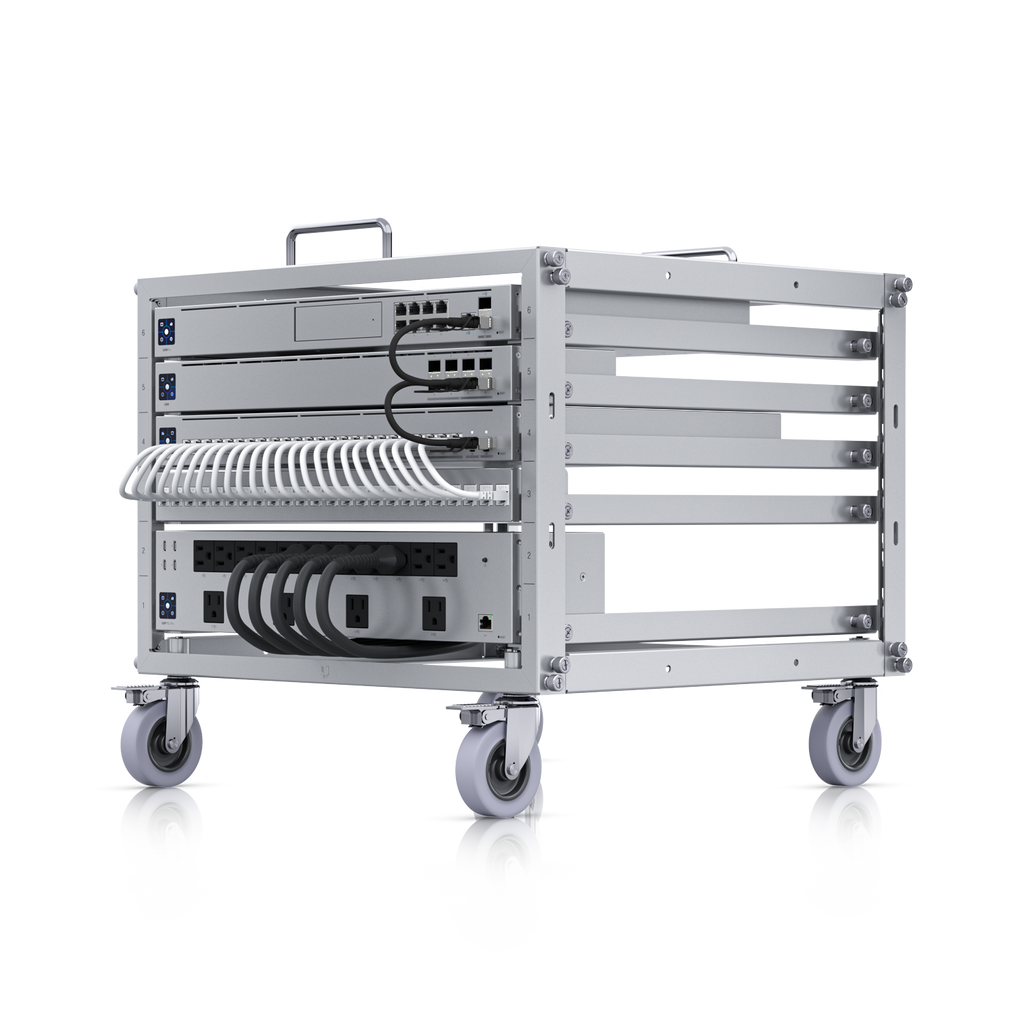

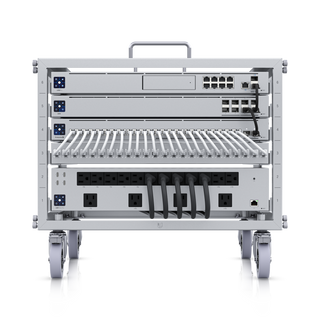

Toolless Mini Rack
U-Rack-6U-TL
Compact, stackable, and toolless 6U open-frame rack designed for UniFi rack-mount devices.*Key features 6U-sized device rack Combine two Mini Racks into a 12U rack with a Stacking Kit Toolless assembly...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact, stackable, and toolless 6U open-frame rack designed for UniFi rack-mount devices.*
Key features
6U-sized device rack
Combine two Mini Racks into a 12U rack with a Stacking Kit
Toolless assembly and device mounting
Lockable casters
*Check the technical specification for device compatibility.
Specifications
Overview
| Dimensions | With handle and caster: 519 x 460 x 485 mm (20.43 x 18.11 x 19.09") Without handle and caster: 519 x 460 x 351 mm (20.43 x 18.11 x 13.82") |
| Weight | 10.3 kg (22.7 lb) |
| Max. Weight Capacity | Single Toolless Mini Rack Static: 80 kg (176 lb) Rolling: 45 kg (99 lb) Double Toolless Mini Racks with Stacking Kit Static: 70 kg (154 lb) Rolling: 35 kg (77 lb) |
| Enclosure Material | Frame/Bracket: SPCC steel Handle: Stainless steel |
| Color | Silver |
| Treatment | Liquid coating |
| Pack Options | (1) Flat pack box |
| U Height | 6U |
| Rack Type | Open frame |
| Mounting | Floor stand |
| Incompatible Devices | UniFi Switch (Gen1), US-24-250W US-24-500W US-48-500W US-48-750W USG USG-Pro-4 EdgeSwitch ES-24-250W ES-24-500W ES-48-500W ES-48-750W EdgeRouter ER-8 Others CKG2-RM ER-RMKIT UACC-Pro-Max-16-RM |
Downloads & documents
Build around the Toolless Mini Rack.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from accessories & cables. Most buyers reading this page should buy the middle column.
UniFi PoE++ Adapter (60W)
Toolless Mini RackAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
