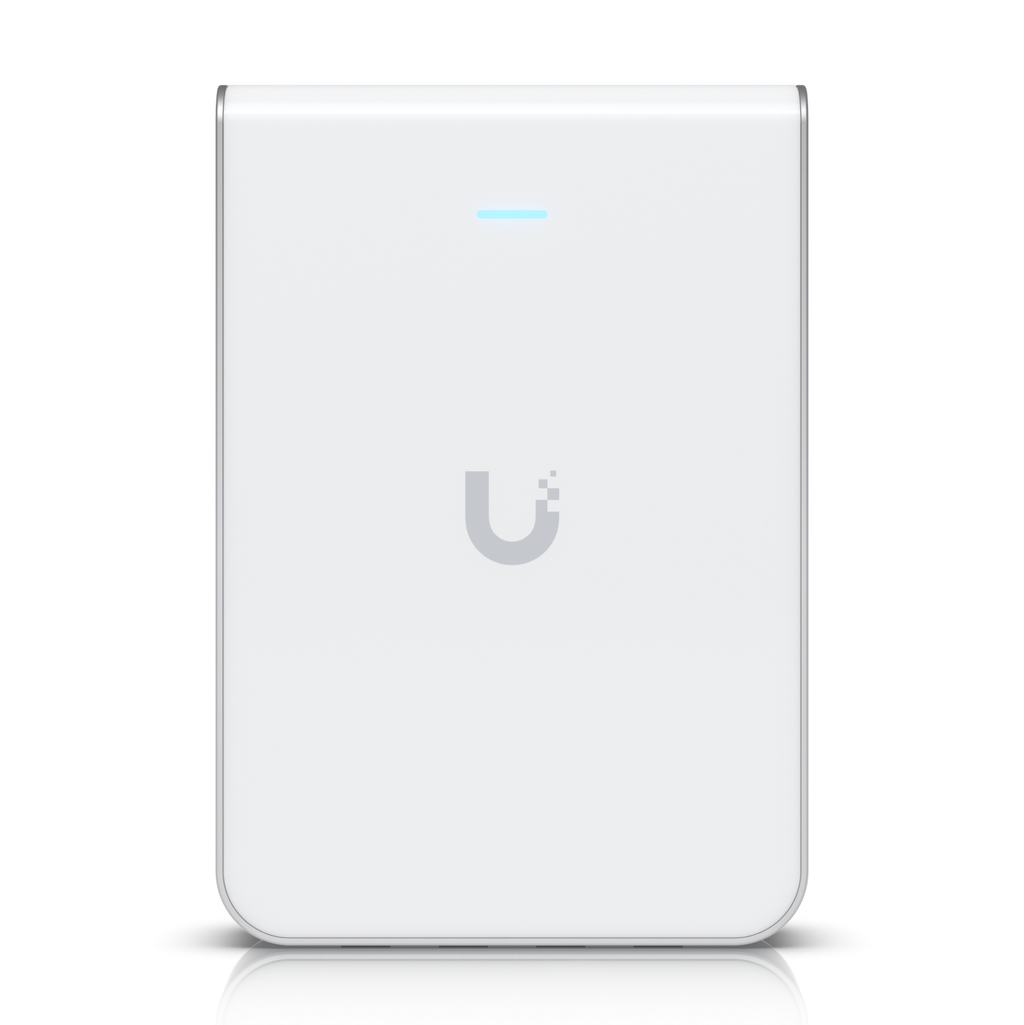

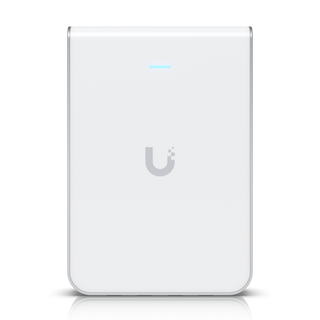

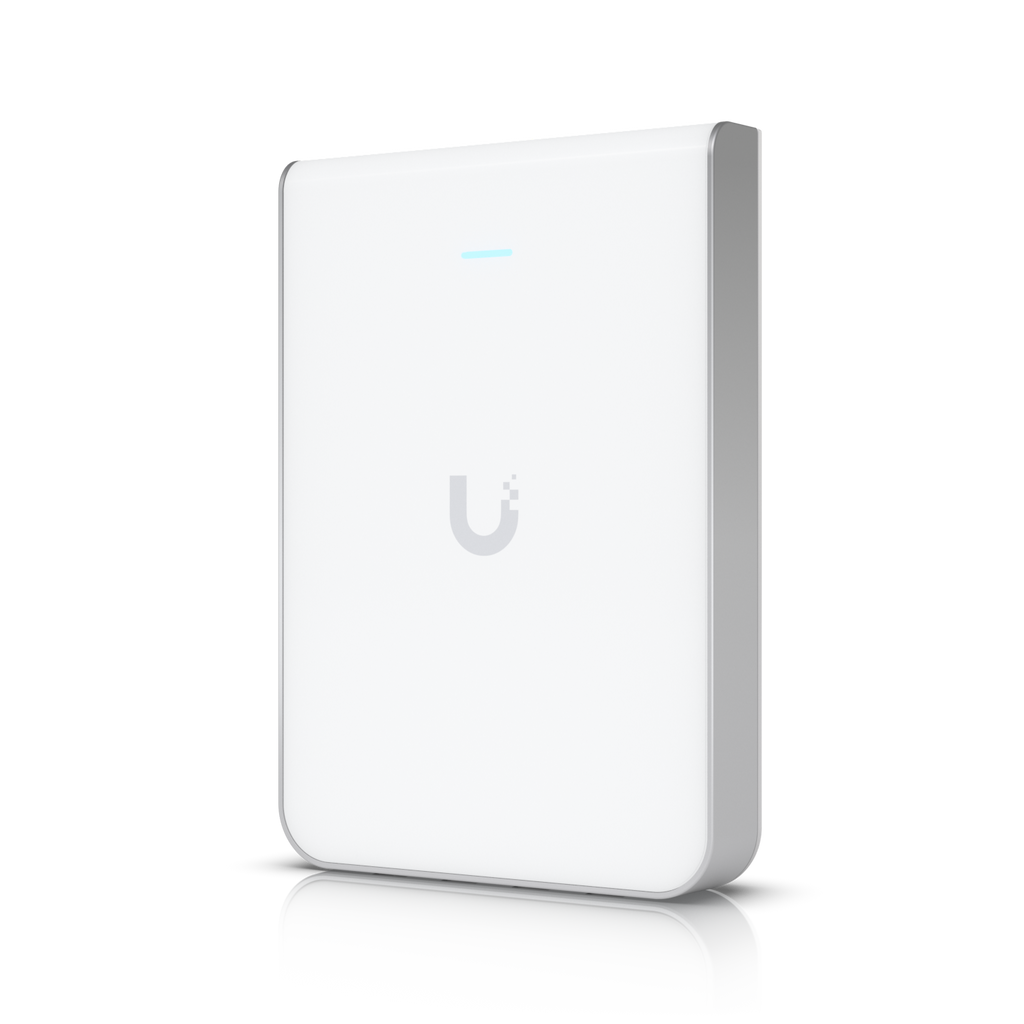

Access Point U6 In-Wall
U6-IW-US
Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4‑port switch ideal for single-room coverage in hospitality environments.Note. PoE+ input required for single-port PoE output.Key features WiFi 6...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4‑port switch ideal for single-room coverage in hospitality environments.
Note. PoE+ input required for single-port PoE output.
Key features
WiFi 6
6 spatial streams
115 m² (1,250 ft²) coverage
250+ connected devices
Powered using PoE/PoE+*
(4) GbE ports with (1) PoE output
GbE uplink
*PoE+ input required for single-port PoE output.
Specifications
Overview
| Dimensions | 139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 6 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 250+ |
| Uplink | GbE |
| Mounting | Wall (Mount Included) |
| Power Method | PoE PoE+ (Required for PoE output) |
Performance
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.8 Gbps (BW160) |
| 2.4 GHz | 573.5 Mbps (BW40) |
| 5 GHz | 5.9 dBi |
| 2.4 GHz | 5 dBi |
| 5 GHz | 26 dBm |
| 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Hardware
| Max. Power Consumption | 13W (Excluding PoE output) |
| Networking Interface | (1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| Weight | 460 g (1 lb) |
| Management | Ethernet Bluetooth |
| Built-In Switch | (4) GbE ports with (1) PoE output |
| Enclosure Material | Plastic, aluminum |
| Mount Material | Aluminum |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Certifications | CE, FCC, IC, SRRC, Anatel: 11546-22-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 6.0.45 and later |
Downloads & documents
