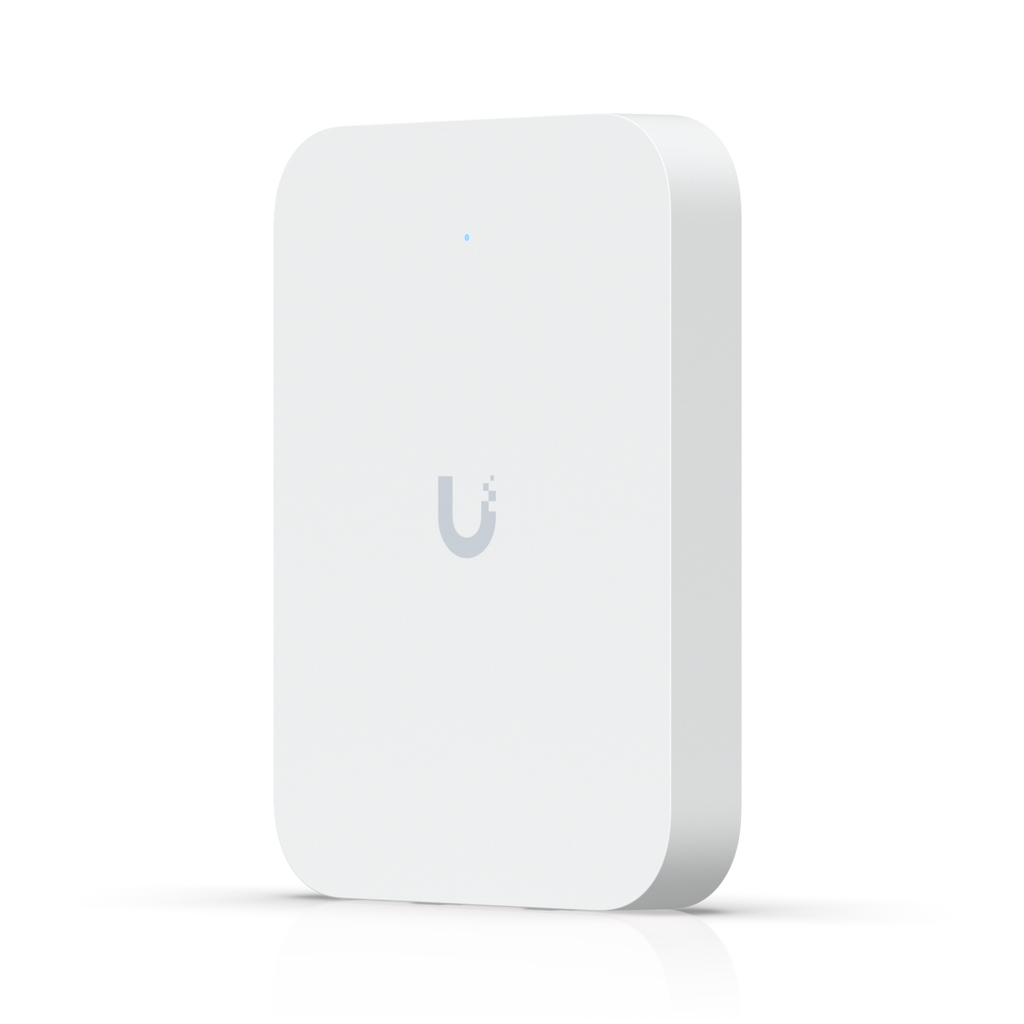

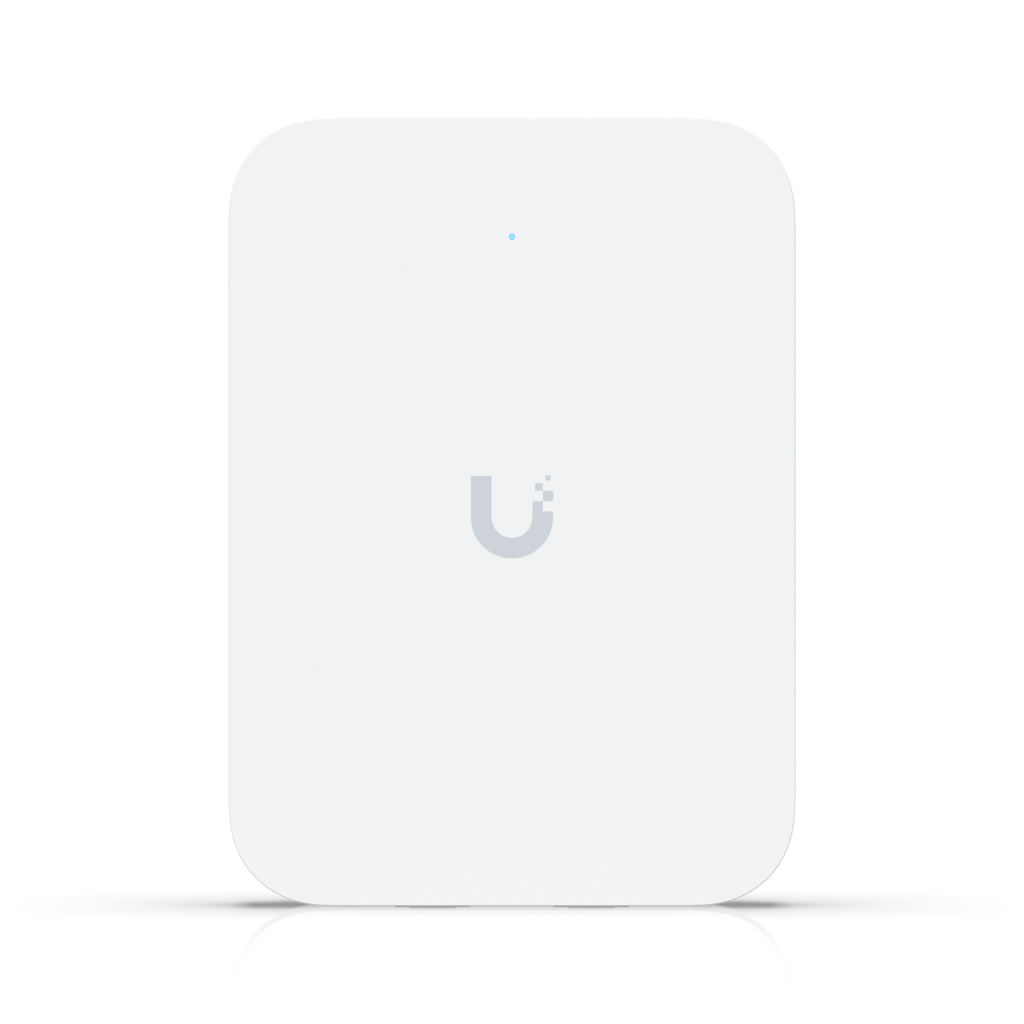

Access Point U7 In-Wall
U7-IW-US
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.Note. PoE+ input required for single-port PoE output.Key features WiFi 7 4...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Note. PoE+ input required for single-port PoE output.
Key features
WiFi 7
4 spatial streams
115 m² (1,250 ft²) coverage
200+ connected devices
Powered using PoE/PoE+*
2.5 GbE uplink
*PoE+ required for single-port PoE output.
Specifications
Overview
| Dimensions | 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |

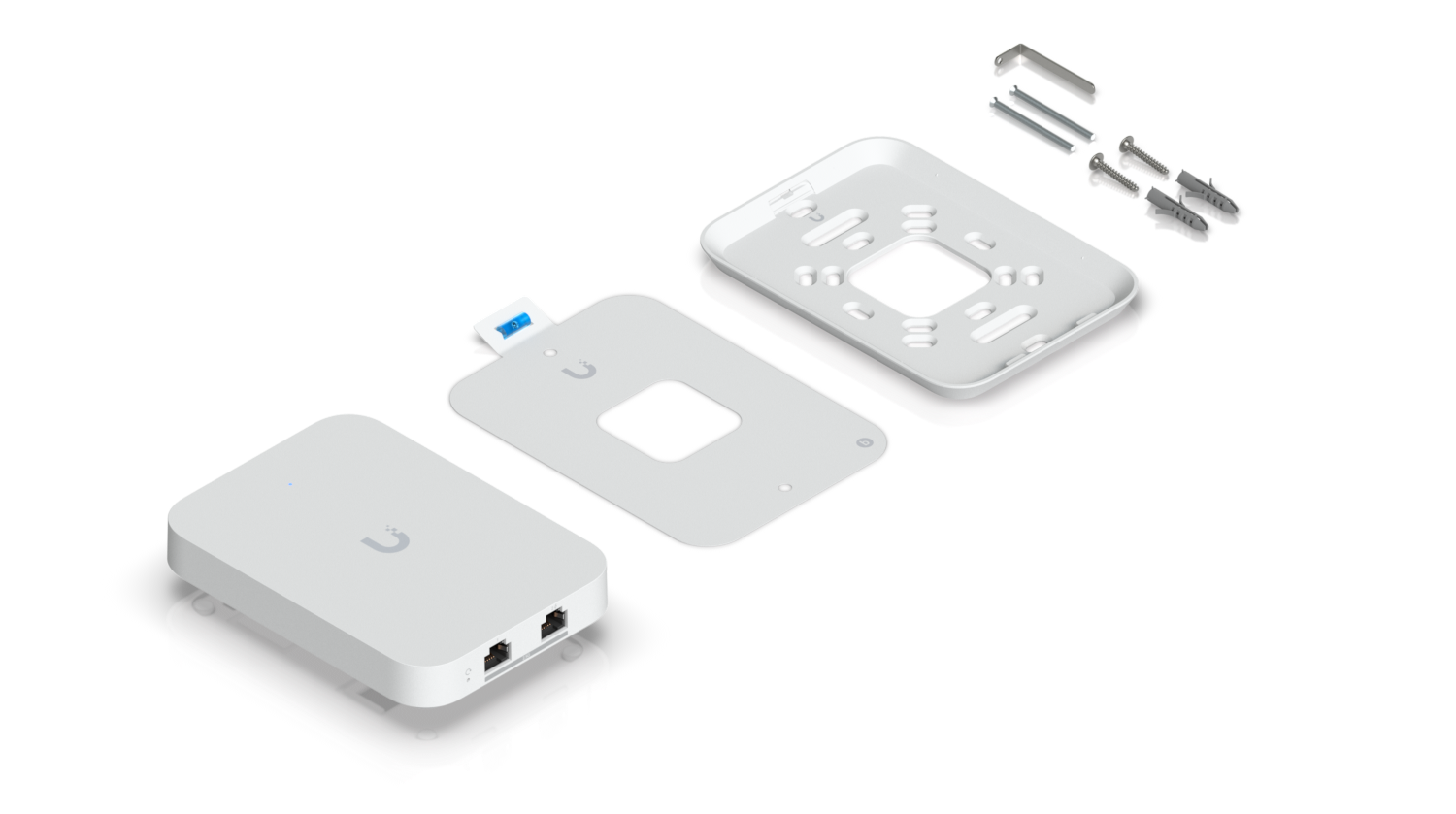

| Mounting | Wall (Metal Wall Mount Included) |
| Power Method | PoE PoE+ (Required for PoE output) |
Performance
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240) Depends on regulatory region |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | 8 dBi |
| 2.4 GHz | 4 dBi |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) Depends on regulatory region |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 13W (Excluding PoE output) |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (3) 2.5 GbE RJ45 ports |
| Weight | 400 g (14.1 oz) |
| Management | Ethernet |
| Built-In Switch | (1) PoE+ input and (1) PoE output |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC, SRRC, Anatel: 03909-25-08356 |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 9.0.114 and later |
| Mobile App | iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |
Downloads & documents
