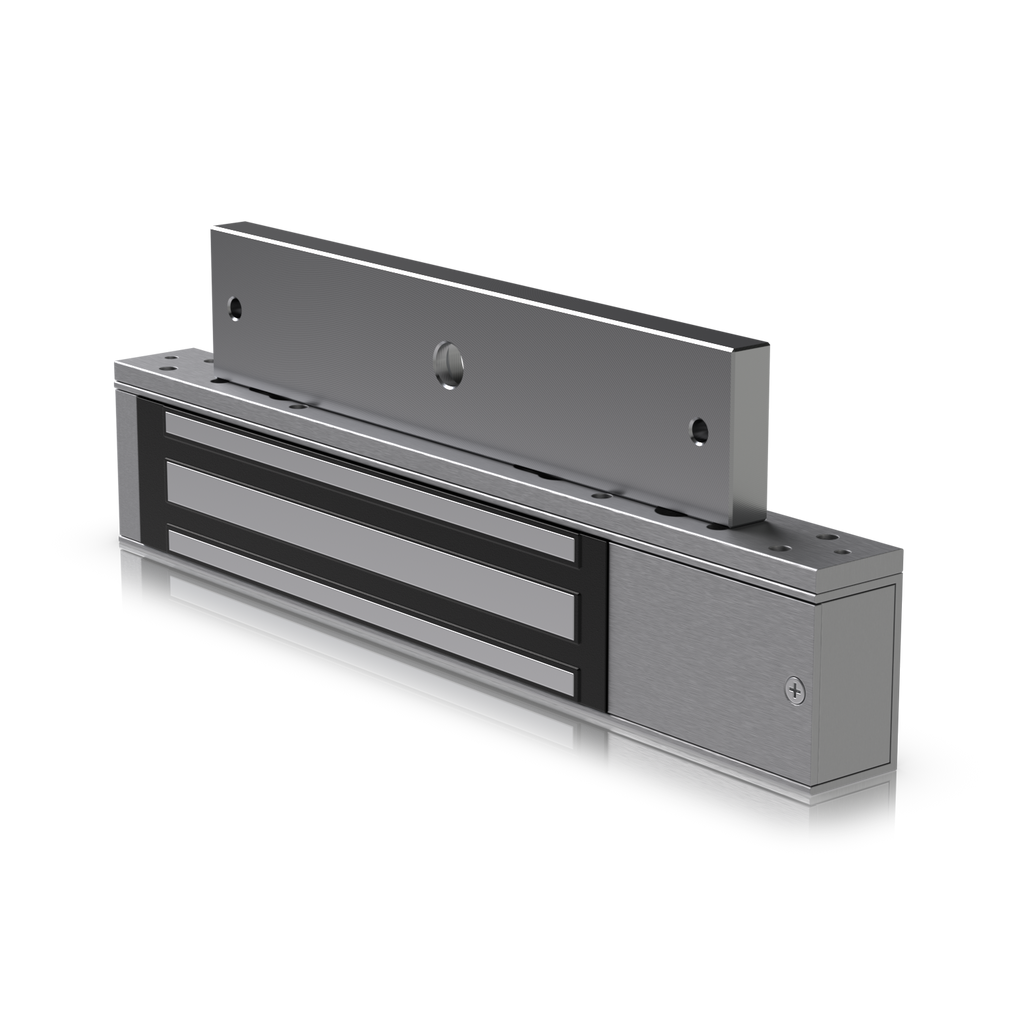

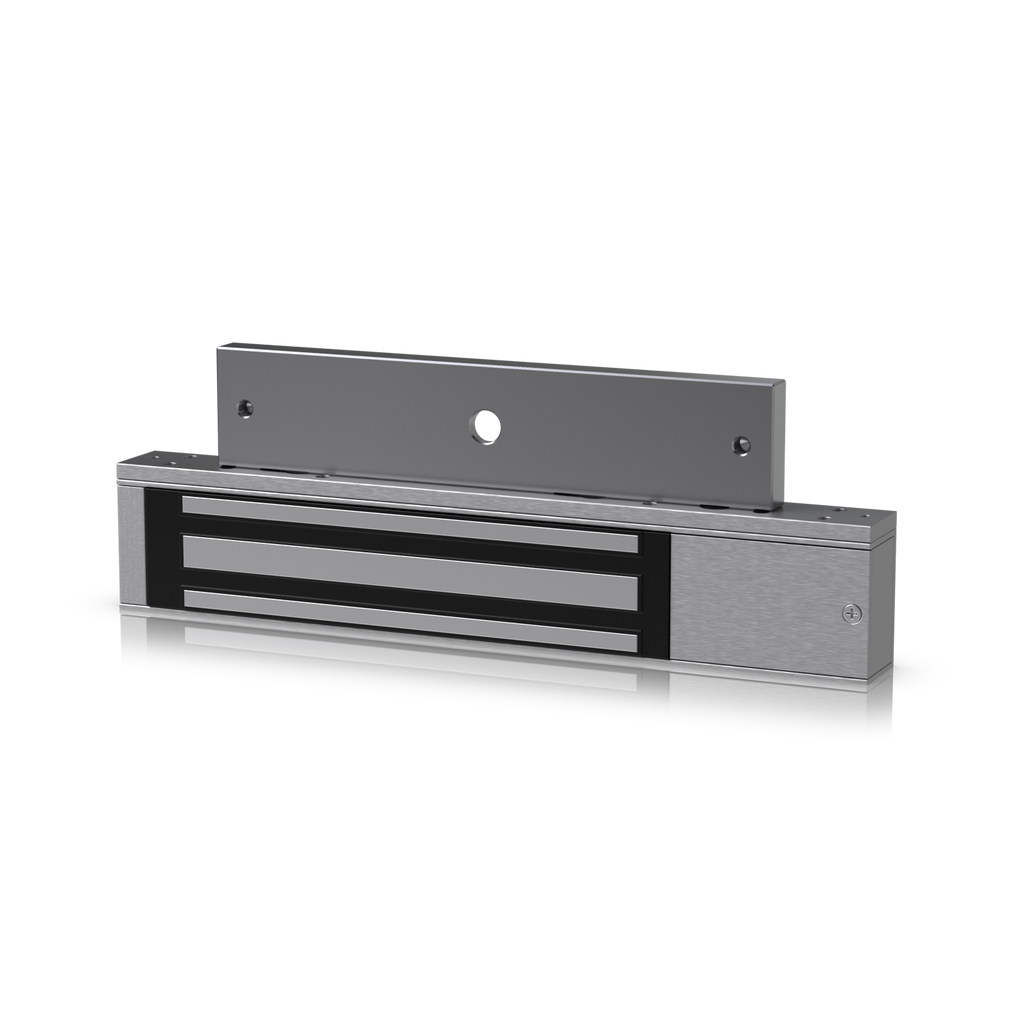

Access Magnetic Lock
UACC-Lock-Magnetic-270kg · Holds up to 270 kg (600 lb)
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.Key features Holds up to 270 kg or 540 kg (600-1,200 lb) Can be installed on...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
Key features
Holds up to 270 kg or 540 kg (600-1,200 lb)
Can be installed on a wide variety of door types*
*— Access Lock Magnetic 270kg: All types including full glass
— Access Lock Magnetic 540kg: All types excluding full glass
Specifications
Overview
| Dimensions | UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") |
| Weight | UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) |
| Enclosure Material | Device/brackets: aluminum Armature: steel |
| Lock Type | Fail safe |
| Support Door Type | UA-Lock-Magnetic-270kg: Single door (Wooden/metal/glass) UA-Lock-Magnetic-540kg: Single door (Wooden/metal) |
| DPS | Embedded |
| Holding Force | UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) |
| Current Power | 500mA ±10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow) |
| Mounting | UA-Lock-Magnetic-270kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and door gap ≤ 5 mm (≤ 0.2") UA-Lock-Magnetic-540kg L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket |
| LED Indicator | Green: unlocked Red: locked |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
