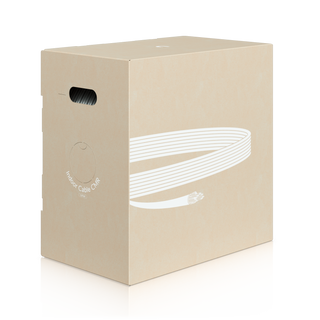

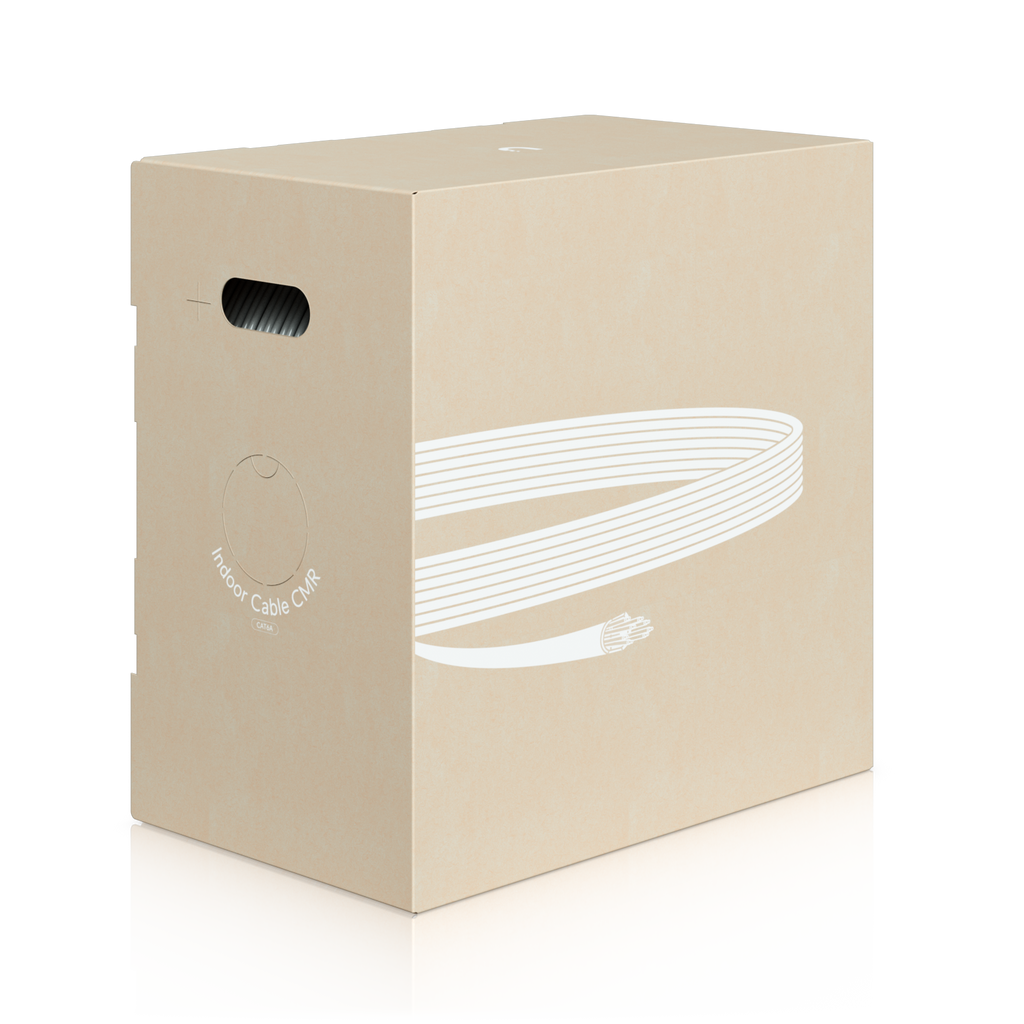

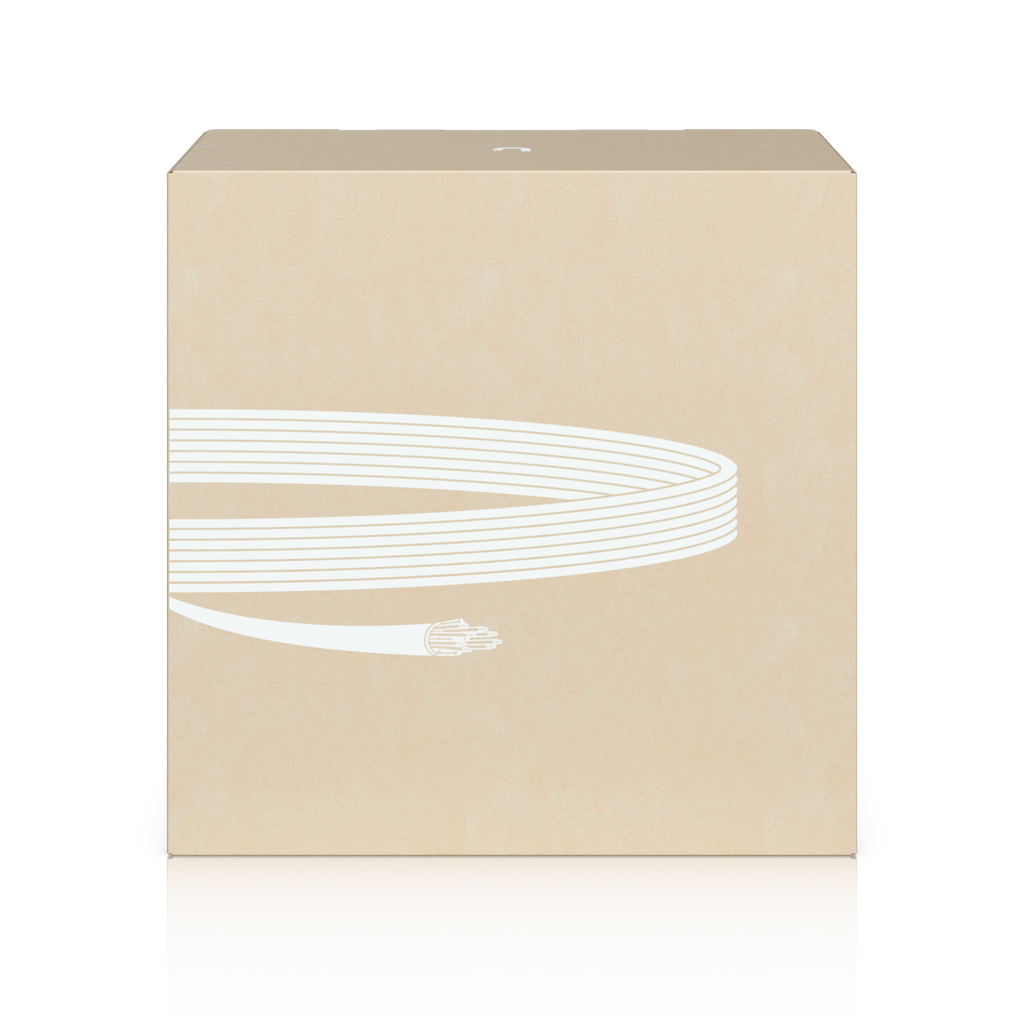

UniFi Indoor Cable Cat6A CMR
UACC-Cable-C6A-CMR
Category 6A Ethernet cable for high-speed, indoor deployments.Key features Category 6A UTP communications multipurpose cable Riser (CMR)-rated, fire-resistant jacket Anti-crosstalk divider Cable length 305 mSpecificationsOverview Length 305 m (1,000 ft)...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Category 6A Ethernet cable for high-speed, indoor deployments.
Key features
Category 6A UTP communications multipurpose cable
Riser (CMR)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
Specifications
Overview
| Length | 305 m (1,000 ft) |
| Type | Category 6A |
| Flame Rating | CMR |
| Operating Environment | Indoor |
| Box Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9") |
| Box Weight | 19.3 kg (42.5 lb) |
| Jacket Color | White |
| Jacket Diameter | 7.05 ±0.2 mm |
| Jacket Material | Flame retardant polyvinyl chloride (FRPVC) |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gage | 23 AWG |
| Bend Radius | Min. 28.2 mm (1.11 '') |
| Twisting | 4 Twisted pairs with color code. Pair 1: white / blue Pair 2: white-orange / orange Pair 3: white / green Pair 4: white-brown / brown |
| Electrical Transmission | ANSI/TIA -568.2-D ISO/IEC 11801-1 (Edition 2.2) IEC 61156-5 (Edition 2.1) |
| Flame Test | UL 1666 (CMR) |
| Material and Construction | UL 444 CSA 22.2 NO.214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 75°C (-4 to 167°F) |
