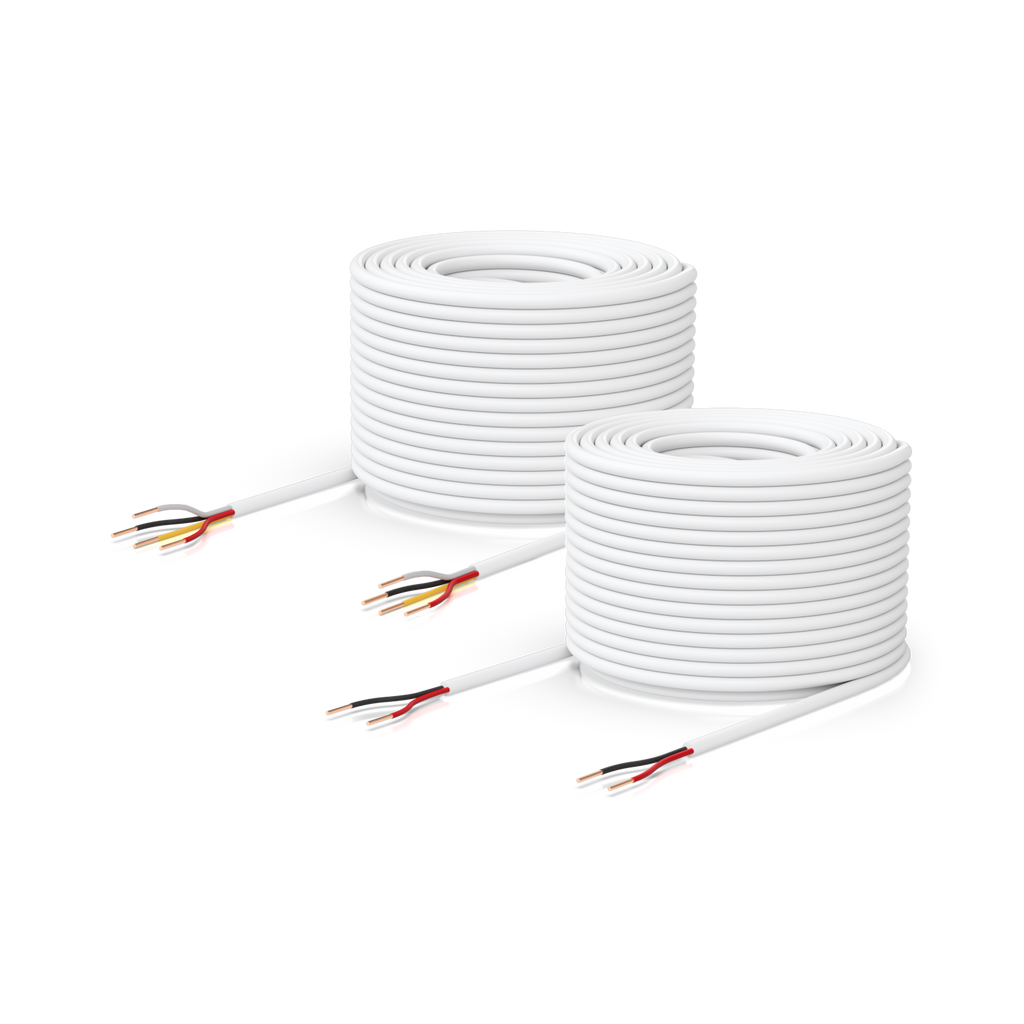

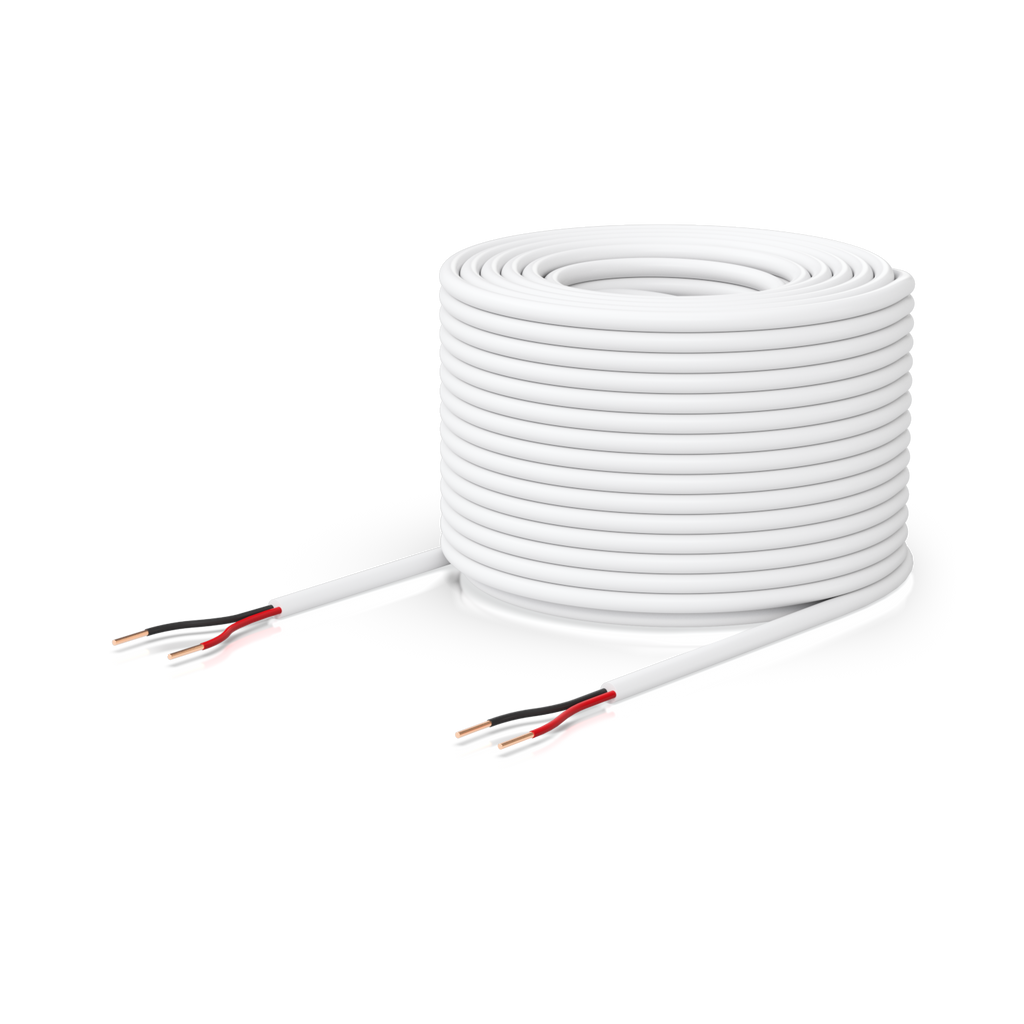

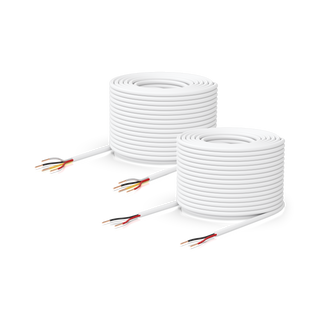

Door Lock Relay Cable
UACC-Cable-DoorLockRelay-1P · 1-Pair Relay Cable
A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.Key features 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub 2-Pair Relay Cable: Connects an electric/magnetic lock...
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
Key features
1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Specifications
Overview
| Length | 152.4 m (500 ft) |
| Material | Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Current Rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Jacket Outer Diameter | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Jacket Color | White |
| Bend Radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") Min. bend radius |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf Max. pull tension |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Ambient Storage Temperature | -45 to 65° C (-49 to 149° F) |
| Ambient Operating Temperature | -45 to 65° C (-49 to 149° F) |
