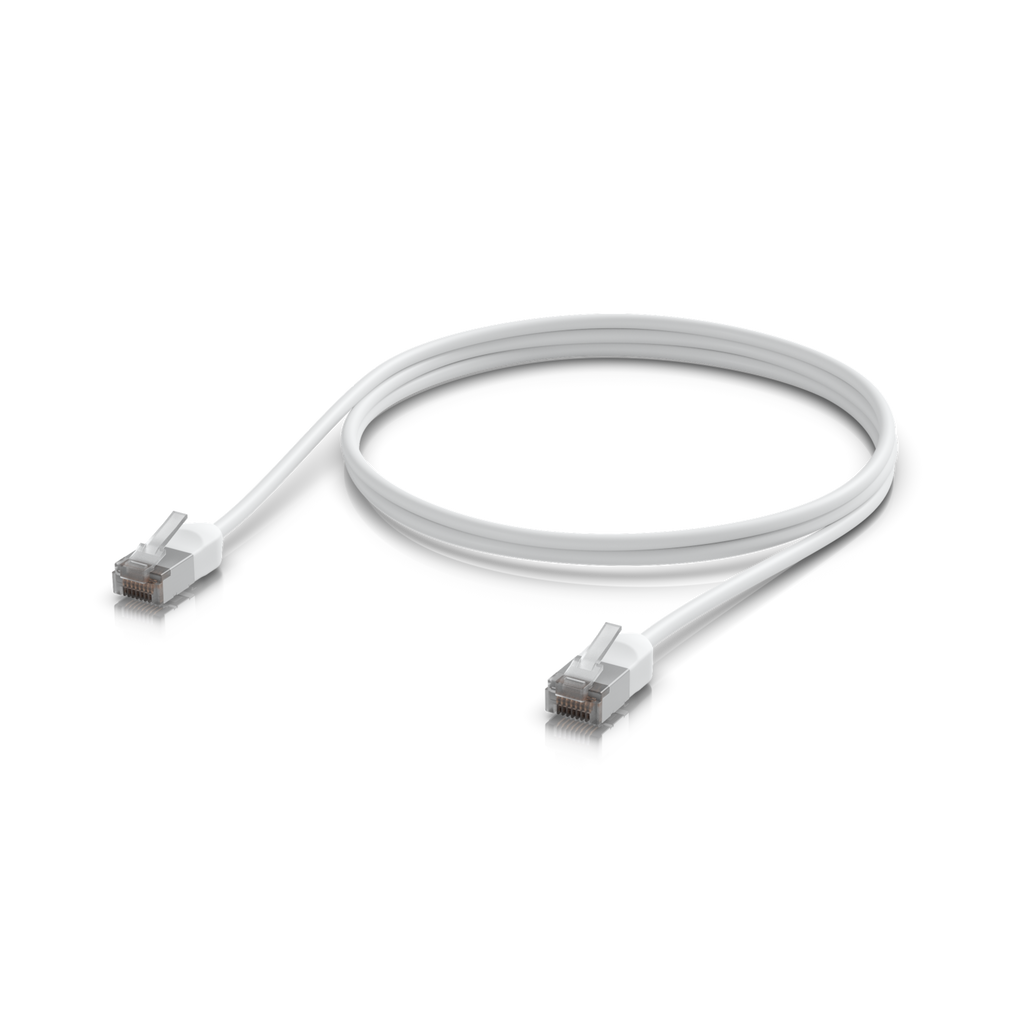

UniFi Premium Patch Cable Outdoor
UACC-Cable-Patch-Outdoor-C6A-1M-W · White / 1 m
Ultra-thin, rugged, shielded outdoor patch cable, designed and optimized to perform in the harshest environments for 10 GbE networking.Key features Shielded RJ45 Insulated, weatherproof jacket Internal foil shielding and drain...
Or build it into a bundle — save up to 6% ↓What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Ultra-thin, rugged, shielded outdoor patch cable, designed and optimized to perform in the harshest environments for 10 GbE networking.
Key features
Shielded RJ45
Insulated, weatherproof jacket
Internal foil shielding and drain wire for increased ESD damage protection
— 3.5 mm outer diameter for 1-8 m lengths
— 3.9 mm outer diameter for 12-15 m lengths
Length: 1 to 15 m
Specifications
Overview
| Available Lengths | End-to-end: 1, 2, 3, 5, 8, 12, 15 m (3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft) |

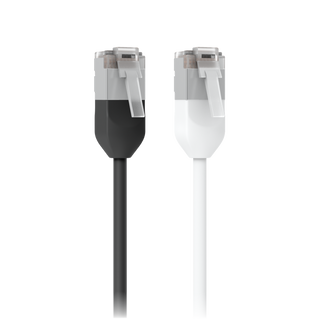

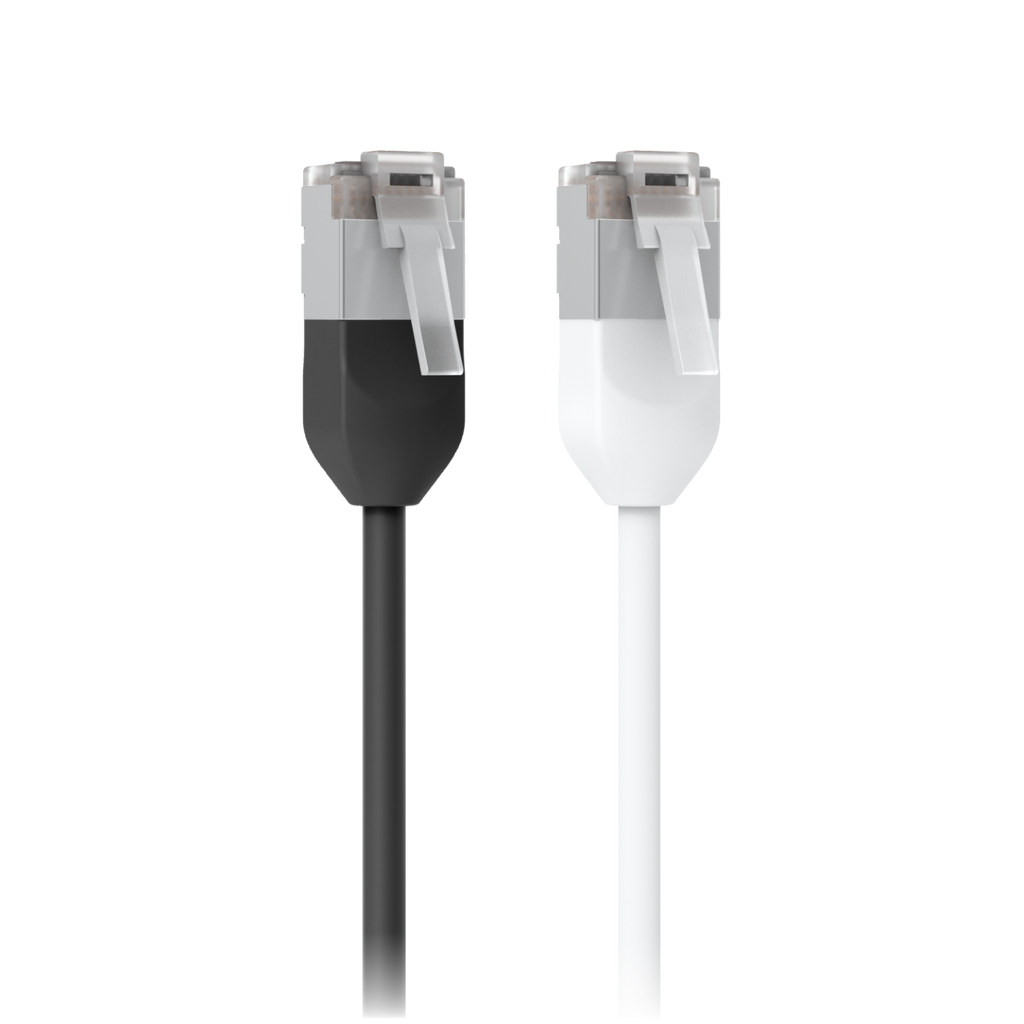

| Available Colors | White, Black |
| Pack Options | Single Unit |
| Supported Data Rate | 10G |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Frosted booted and shielding RJ45 |
| Operating Environment | Outdoor |
| Jacket Diameter | 1-8 m: 3.5 mm (0.14") 12-15 m: 3.9 mm (0.15") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | F/UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gage | 1-8 m (3-26 ft): 34 AWG 12-15 m (39-49 ft): 32 AWG |
| Bend Radius | 1-8 m: Min. 28 mm (1.1'') 12-15 m: Min. 31 mm (1.22 '') |
| UV Resistance | ISO4892-2 |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2 ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
