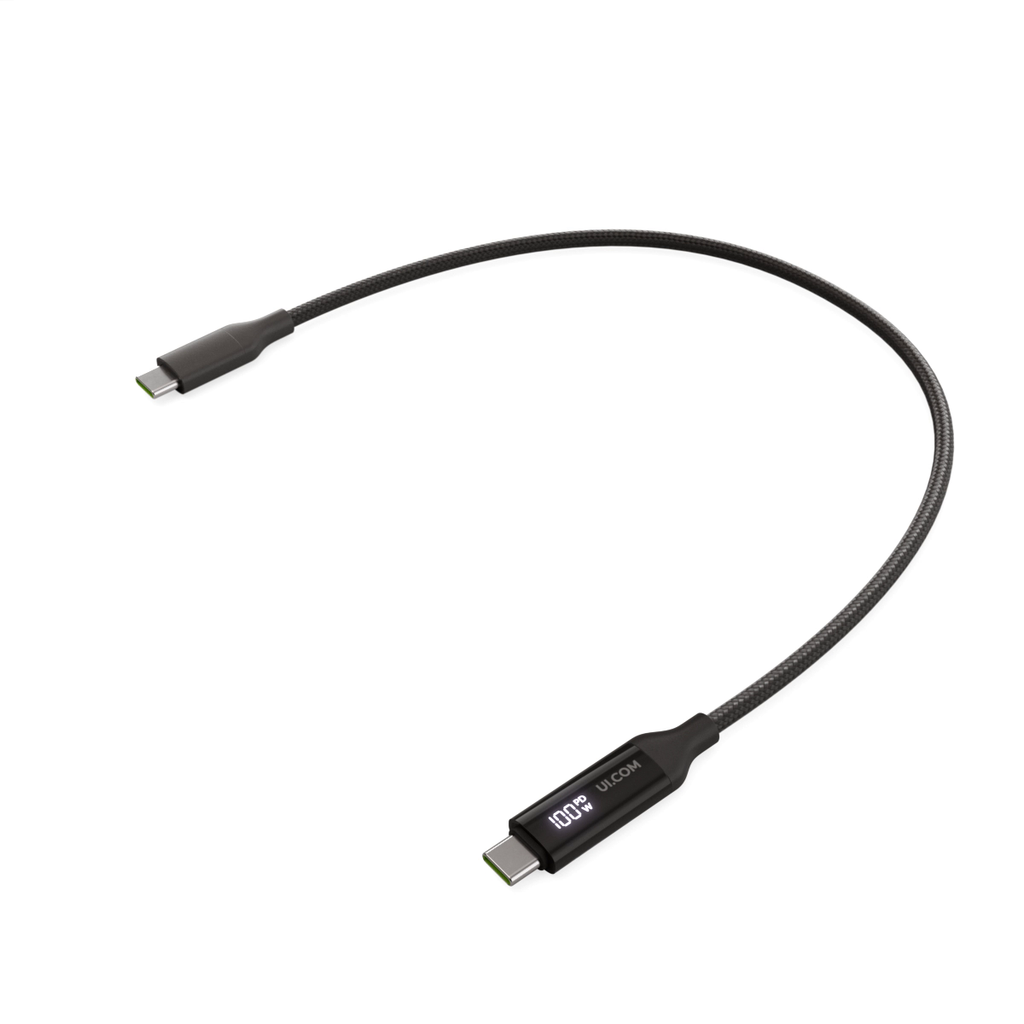

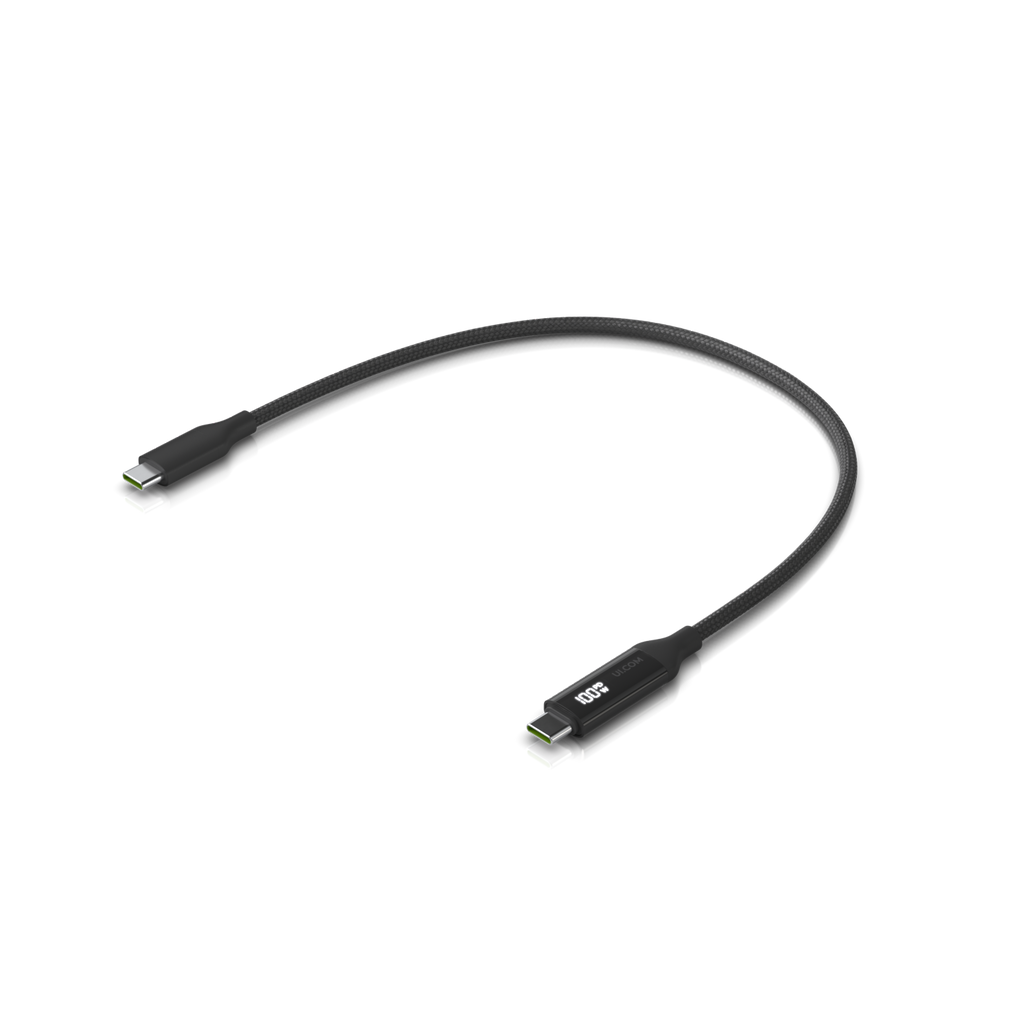

USB-C Cable with Charge Display
UACC-Cable-USB-100W-0.3M-BK · 0.3 m
Braided power and data cable with a double-sided charge display.Key features Integrated power meter 100W max power output 480 Mbps max data transfer rate (0.3 / 1 / 2 m...
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Braided power and data cable with a double-sided charge display.
Key features
Integrated power meter
100W max power output
480 Mbps max data transfer rate (0.3 / 1 / 2 m length only)
Durable braided cable design
Specifications
Overview
| Available Lengths | 0.3/1/2/4.5/7 m (1/3.3/6.6/14.8/23 ft) |
| Shielding Type | Shielded twisted pair (STP) |
| Conductor Type | Stranded tinned copper |
| Conductor Wire Gauge | 0.3/1/2: (3) 24AWG (2) 30AWG (2) 32AWG 4.5/7 m: (7) 23AWG (3) 32AWG |
| Jacket Diameter | 0.3/1/2: 4.4 mm (0.17") 4.5/7 m: 5.3 mm (0.2") |
| Jacket Material | PP & PET braiding |
| Jacket Color | Black, cool gray |
| Cable Connector Type | USB Type-C |
| Bend Radius | 0.3/1/2 m: 15 mm (0.6") 4.5/7 m: 27 mm (1.1") Min. |
| Power Output | Max. 100W PD |
| Ambient Operating Temperature | -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
