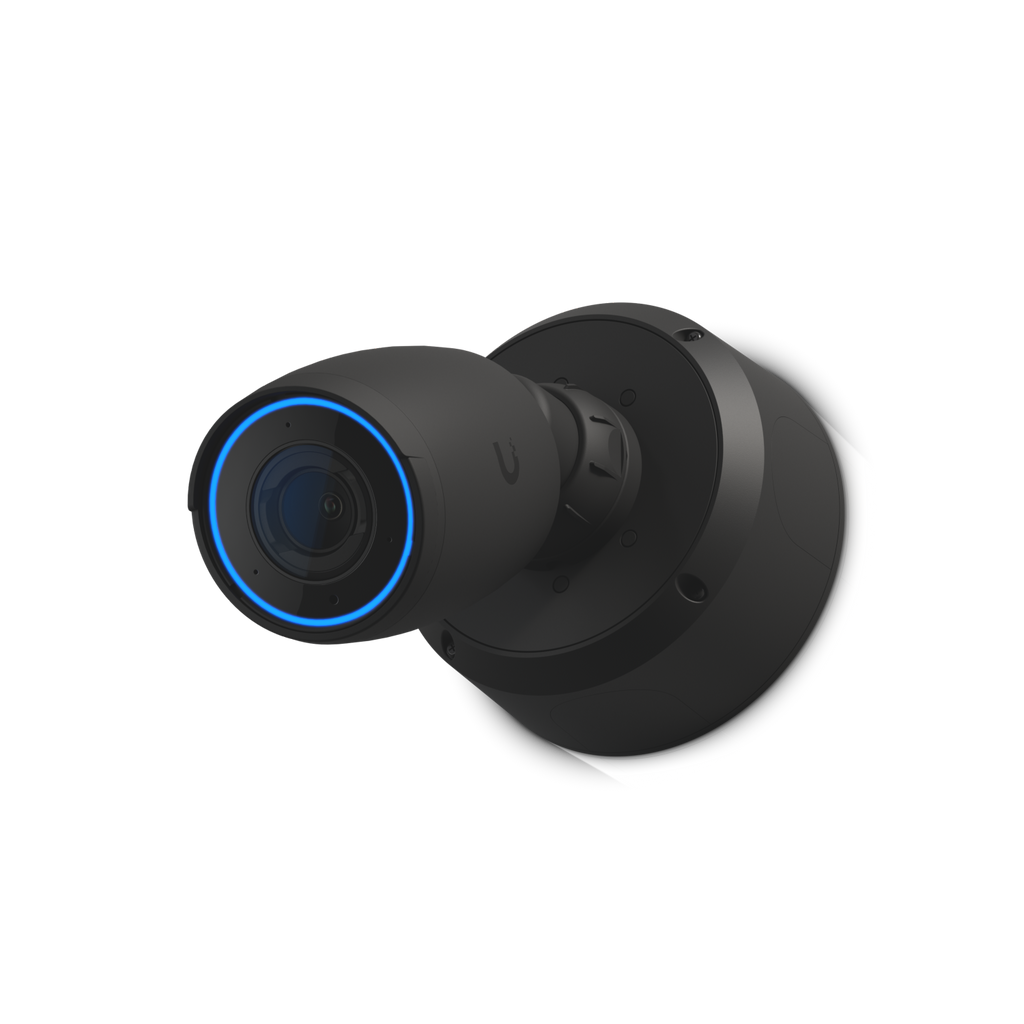

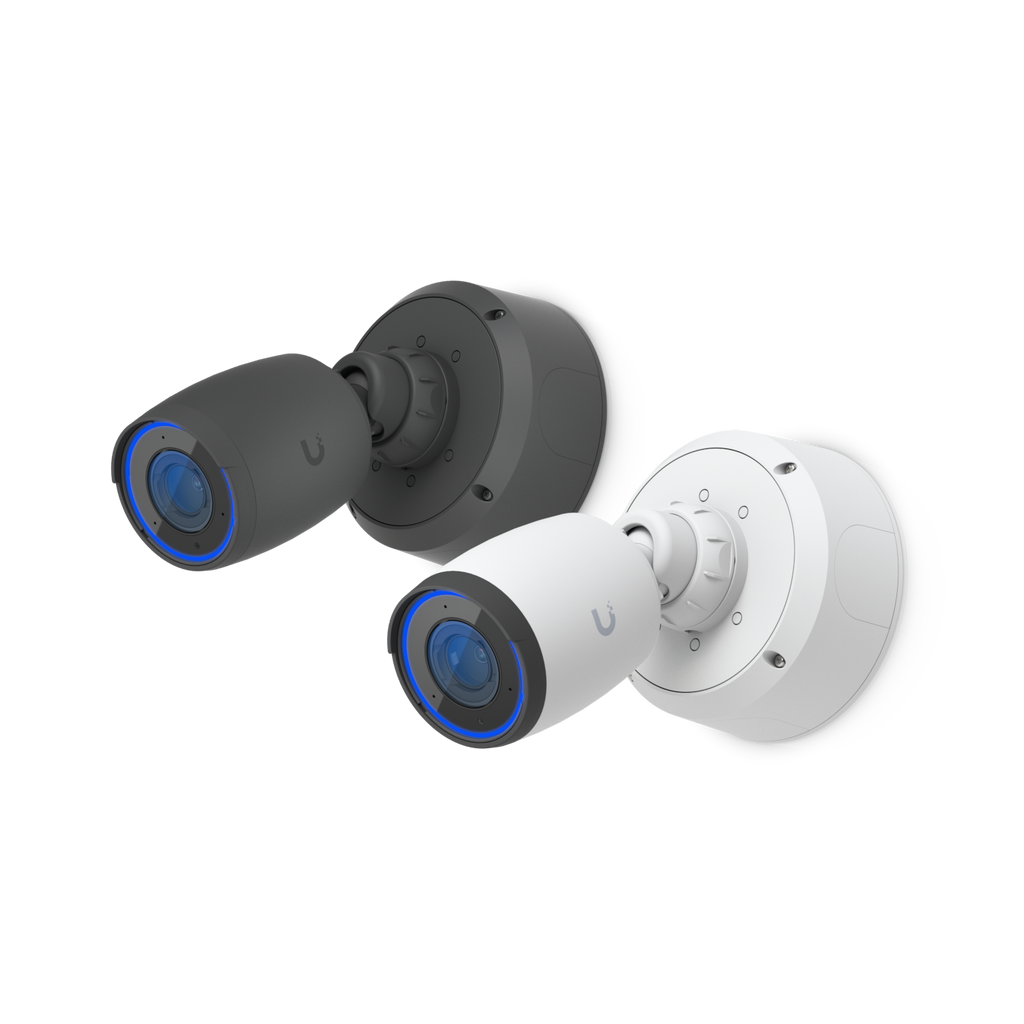

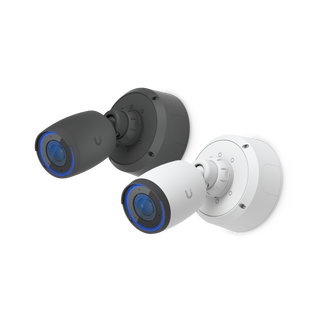

Camera Junction Box
UACC-Camera-JB-B · Black
Tamper-resistant junction box for UniFi Bullet, Dome, and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.Key features Supports flat surface, pole and pendant mounting Includes side and...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Tamper-resistant junction box for UniFi Bullet, Dome, and Turret cameras that enhances mounting durability, aesthetics, and ease of maintenance.
Key features
Supports flat surface, pole and pendant mounting
Includes side and rear 3/4" conduit entrances
Specifications
Overview
| Dimensions | ⌀140.4 x 59.7 mm (⌀5.5 x 2.4") |
| Pole Mount Diameter | 1.5–2" (38–50 mm) Metal strap torgue: 6Nm |
| Weight | Junction box: 470 g (16.6 oz) Mount Holder: 66 g (2.3 oz) Deco ring: 17g (0.6 oz) Pole mount: 62 g (2.2 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mounting Material | Aluminum alloy |
| Threaded Outlets | G3/4" |
| Compatibility | UVC-AI-Bullet UVC-AI-PRO UVC-AI-DSLR UVC-AI-Dome UVC-AI-Turret UVC-G6-Bullet UVC-G6-Edge-Bullet UVC-G6-Turret UVC-G6-Pro-Turret UVC-G6-Edge-Turret UVC-G6-Dome UVC-G6-Pro-Dome UVC-G6-Edge-Dome UVC-G6-Mini-Dome UVC-G6-180 UVC-G5-Dome UVC-G5-Dome-Ultra UVC-G5-Turret-Ultra UVC-G5-Pro UVC-G5-Bullet UVC-G4-Pro UVC-G4-Bullet UVC-G4-Dome UVC-G3-Pro UVC-G3-Bullet |
