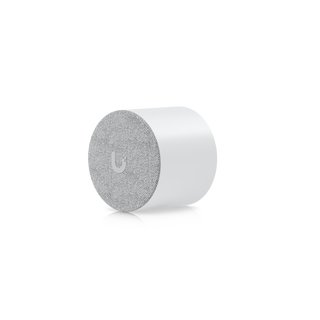

PoE Smart Chime
UACC-Chime-PoE
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.Key features Up to 80dB speaker sound Connect and power using PoESpecificationsMechanical Dimensions Device: ⌀62 x...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
Key features
Up to 80dB speaker sound
Connect and power using PoE
Specifications
Mechanical
| Dimensions | Device: ⌀62 x 54 mm (⌀2.5 x 2.1") In-wall mount: ⌀89 x 63.1 mm (⌀3.5 x 2.5") On-wall Mount: ⌀62 x 20.2 mm (⌀2.5 x 0.8") |
| Weight | Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, zinc alloy |
Hardware
| Networking Interface | 10/100 MbE port |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 3W |
| ESD Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | R/G/B/W |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect UniFi Access |
| Mobile App | UniFi Protect iOS™ and Android™ |
Downloads & documents
