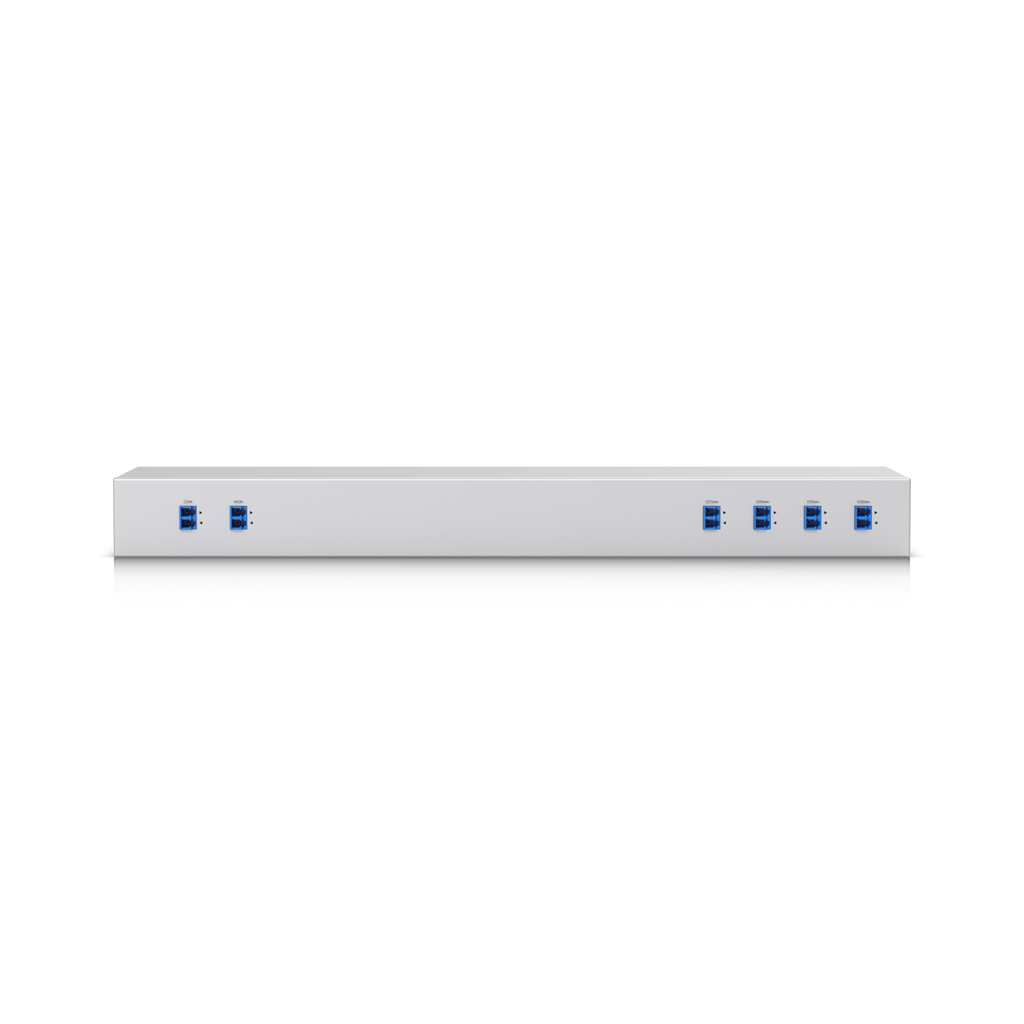

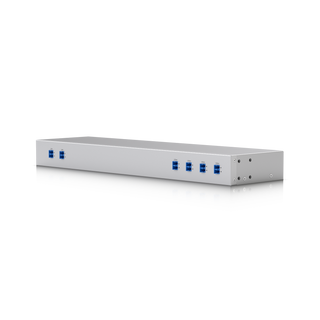

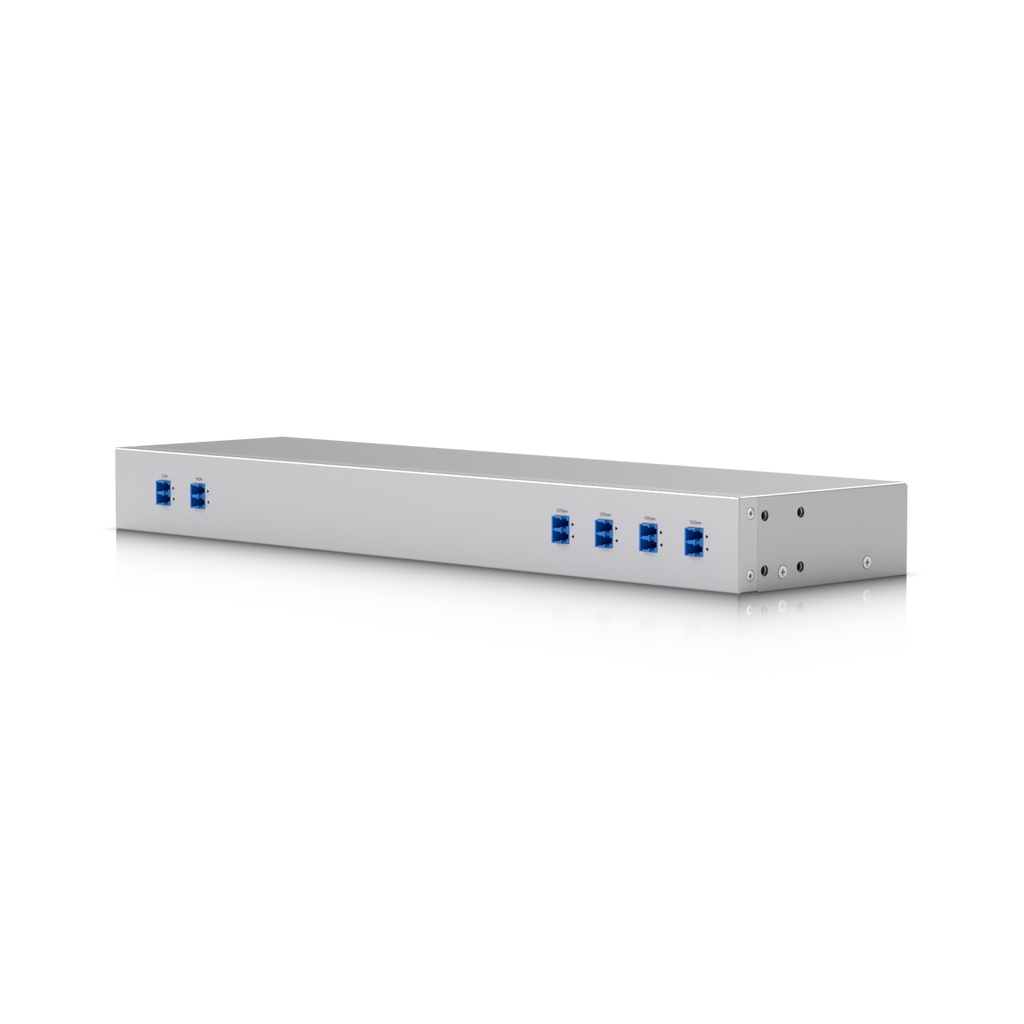

CWDM Mux Demux 4
UACC-CWDM-4
Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.Key features (4) 1270 to 1330 nm channel ports (1) Duplex LC UPC communication...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Rack-mountable 4-channel 1270 to 1330 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
Key features
(4) 1270 to 1330 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 4 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
Specifications
Overview
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
| Enclosure Material | SGCC steel |
| Weight | 1.4 kg (3.2 lb) |
| Pigtail and Connector Type | 0.9 mm white LC/UPC |
| Connector | (1) COM (LC/UPC) (1) MON (LC/UPC) (1) 1270 to 1330 nm (LC/UPC) |
| Type | SMF-28e |
| Length | ≥0.5 to 1 m |
| Isolation | Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB |
| Channel Count | 4 CH Mux/Demux |
| Channel Center Wavelength | 1270/1290/1310/1330 nm |
| Min. Channel Passband | ±6.5 nm |
| Insertion Loss | <1.5 dB (Max.) |
| Return Loss | 50 dB (Min.) |
| Max. Power Handling | 500 mW |
| Max. Passband Ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Max. Polarization Mode Dispersion | 0.1 ps |
| Min. Directivity | 55 dB |
| Ambient Storage Temperature | -40 to 90° C (-40 to 194° F) |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
