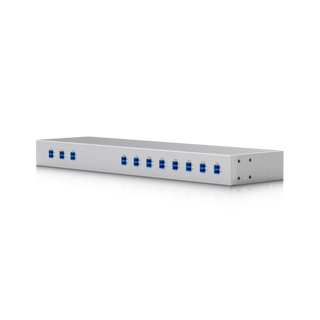

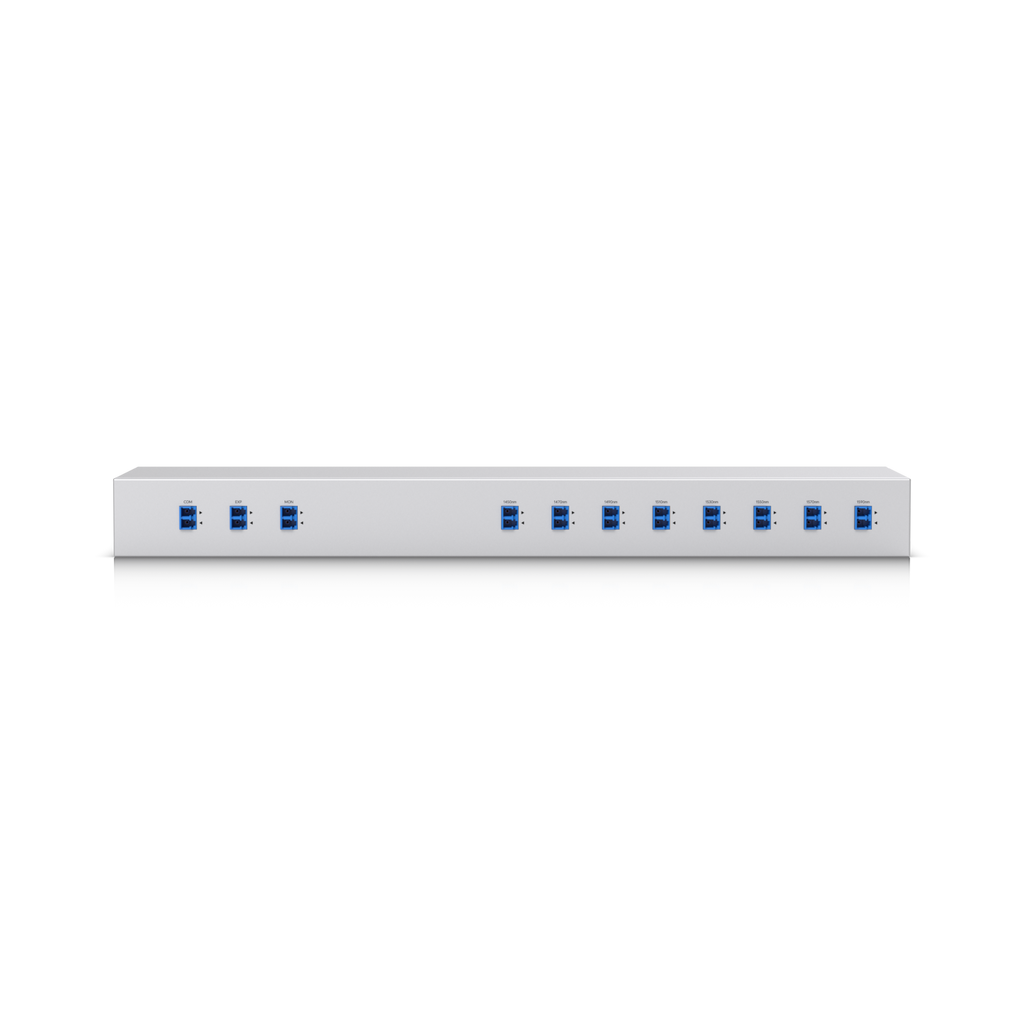

CWDM Mux Demux 8
UACC-CWDM-8
Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.Key features (8) 1450 to1590 nm channel ports (1) Duplex LC UPC communication port...
Or build it into a bundle — save up to 6% ↓What it is, and who it is for.
Ready for the floor — the gear that runs a real business all day, every day.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
Key features
(8) 1450 to1590 nm channel ports
(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
(1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
Specifications
Overview
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
| Enclosure Material | SGCC steel |
| Weight | 1.4 kg (3.2 lb) |
| Pigtail and Connector Type | COM: 0.9 mm black LC/UPC Other ports: 0.9 mm white LC/UPC |
| Connector | (1) COM (LC/UPC) (1) MON (LC/UPC) (1) EXP (LC/UPC) (1) 1450 to 1590 nm (LC/UPC) |
| Type | SMF-28e |
| Length | ≥0.5 to 1 m |
| Isolation | Adjacent Channel: Max. 30 dB Non-Adjacent Channel: Min. 40 dB |
| Channel Count | 8 CH Mux/Demux |
| Channel Center Wavelength | 1450/1470/1490/1510/1530/1550/1570/1590 nm |
| Min. Channel Passband | ±6.5 nm |
| Insertion Loss | <2.5 dB (Max.) |
| Return Loss | 50 dB (Min.) |
| Max. Power Handling | 500 mW |
| Max. Passband Ripple | 0.3 dB |
| Max. Polarization Dependent Loss | 0.1 dB |
| Max. Polarization Mode Dispersion | 0.1 ps |
| Min. Directivity | 55 dB |
| Ambient Storage Temperature | -40 to 90° C (-40 to 194° F) |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
