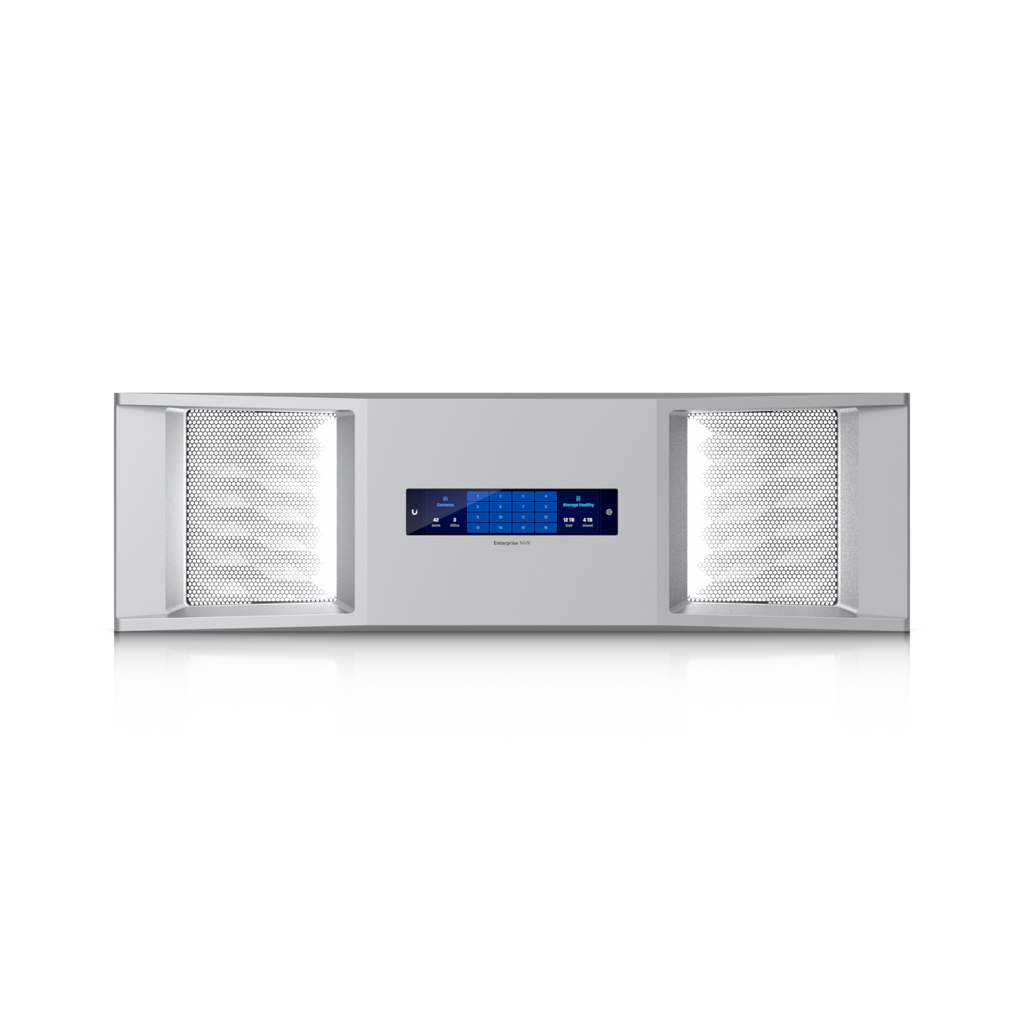

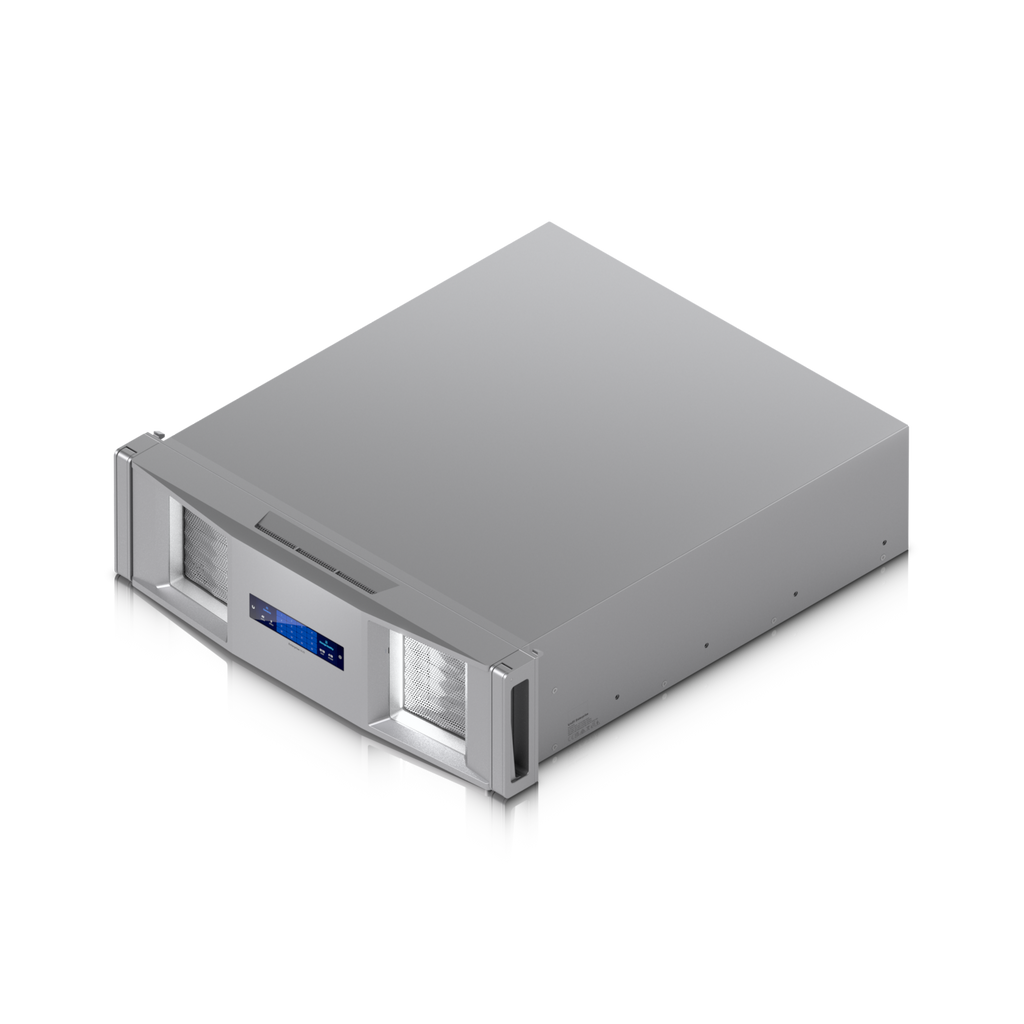

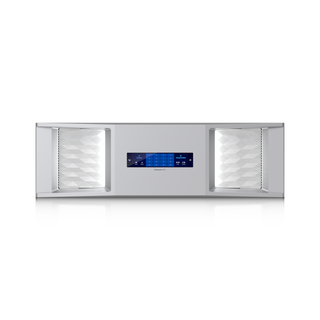

Enterprise NVR Bezel
UACC-ENVR-Bezel
Faceplate that integrates with Enterprise Network Video Recorder to provide a 4.7" touch display and LED illumination.Key features Disc overview and management View livestreams directly from the rack Physically secure...
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Faceplate that integrates with Enterprise Network Video Recorder to provide a 4.7" touch display and LED illumination.
Key features
Disc overview and management
View livestreams directly from the rack
Physically secure discs with a door latch
4.7" touchscreen
Note. Support ENVR firmware version 4.1.10 and later.
Specifications
Mechanical
| Dimensions | 441.7 x 132 x 51.9 mm (17.4 x 5.2 x 2") |
| Weight | 1.1 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
Hardware
| Power Method | Magnetic Type-C |
| Supported Voltage Range | 5V |
| Max. Power Consumption | 3.78W |
| ESD/EMP Protection | Air: ± 12kV, contact: ± 8kV |
| LCM Display | (1) 4.7" touchscreen |
| LEDs | Boot sequence wave pattern User configurable status Locate function |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, IC, FCC |
