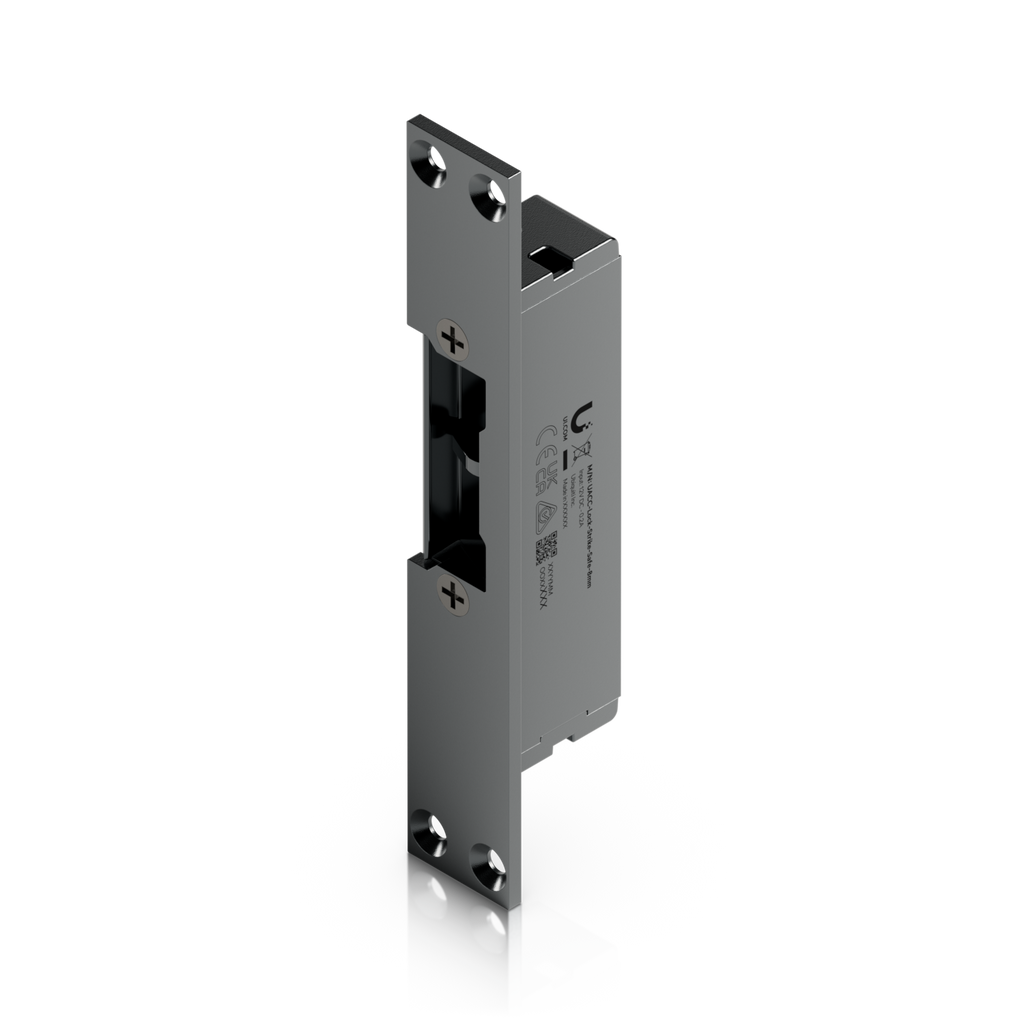

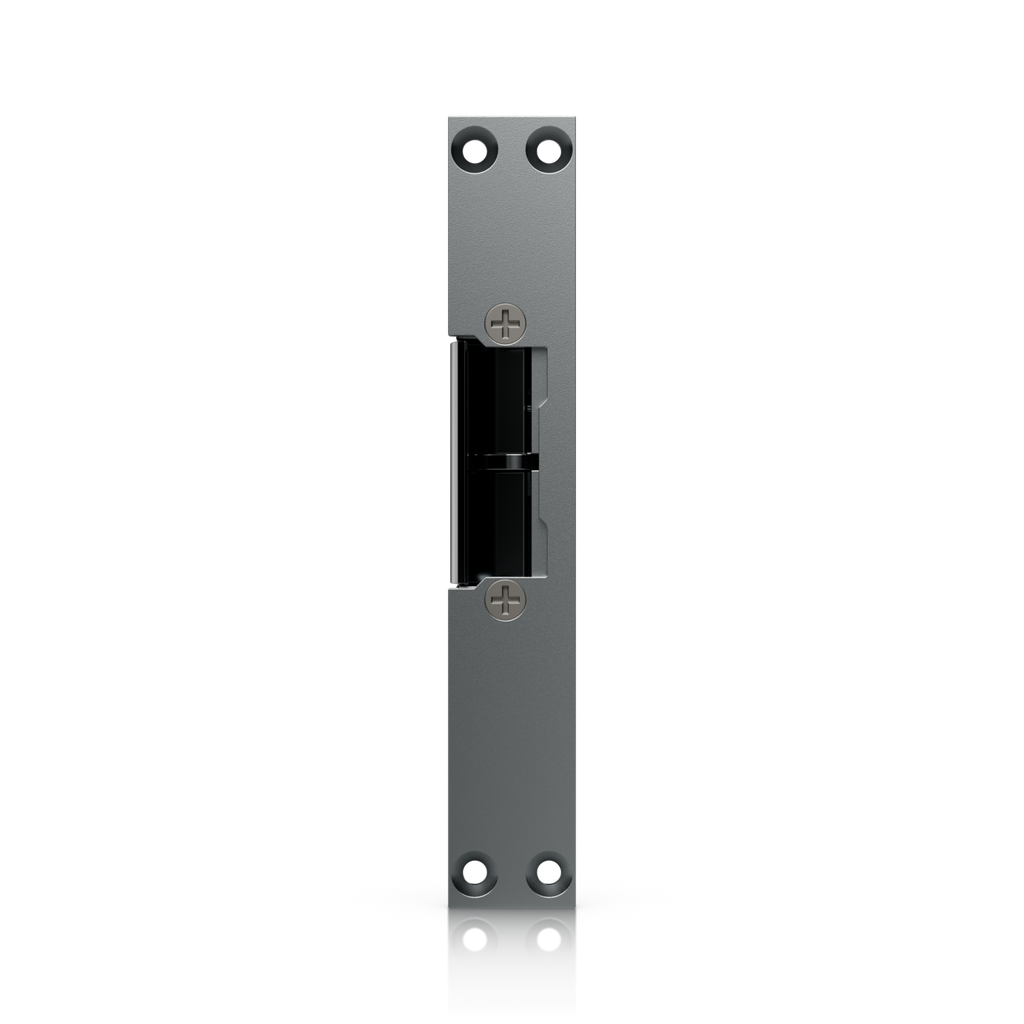

Access Fail-Safe Strike Lock (8 mm)
UACC-Lock-Strike-Safe-8mm
Fail-safe electric strike lock with 8 mm lock slot depth support.SpecificationsOverview Dimensions Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1") Short front plate:153 x 25 x...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Fail-safe electric strike lock with 8 mm lock slot depth support.
Specifications
Overview
| Dimensions | Lock body:112 x 21 x 28 mm (4.4 x 0.8 x 1.1") Short front plate:153 x 25 x 3 mm (6 x 0.9 x 0.1") Long front plate:250 x 25 x 3 mm (9.8 x 0.9 x 0.1") |
| Weight | Lock body: 200 g (7.0 oz) Short front plate: 62 g (2.2 oz) Long front plate: 97 g (3.4 oz) |
| Enclosure Material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Lock Type | Fail safe |
| Support Door Type | Single door (Wooden/metal) |
| Holding Force | 227 kg (500 lb) |
| Current Power | 200mA ± 10% |
| Support Voltage Range | 12V DC ±10% |
| Wiring | (1) Lock 12V/NC (red) (1) Lock 12V/COM (black) (1) DPS/- (white) (1) DPS/+ (orange) |
| Mounting | Door frame recess mount |
| Type | Dry contact |
| Logic | Door Open: DPS/+ & DPS/- = Open Door Close: DPS/+ & DPS/- = Short |
| Rating | Max. 30V DC, 0.1A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Downloads & documents
Build around the Access Fail-Safe Strike Lock (8 mm).
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from accessories & cables. Most buyers reading this page should buy the middle column.
UniFi PoE++ Adapter (60W)
Access Fail-Safe Strike Lock (8 mm)Asked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
