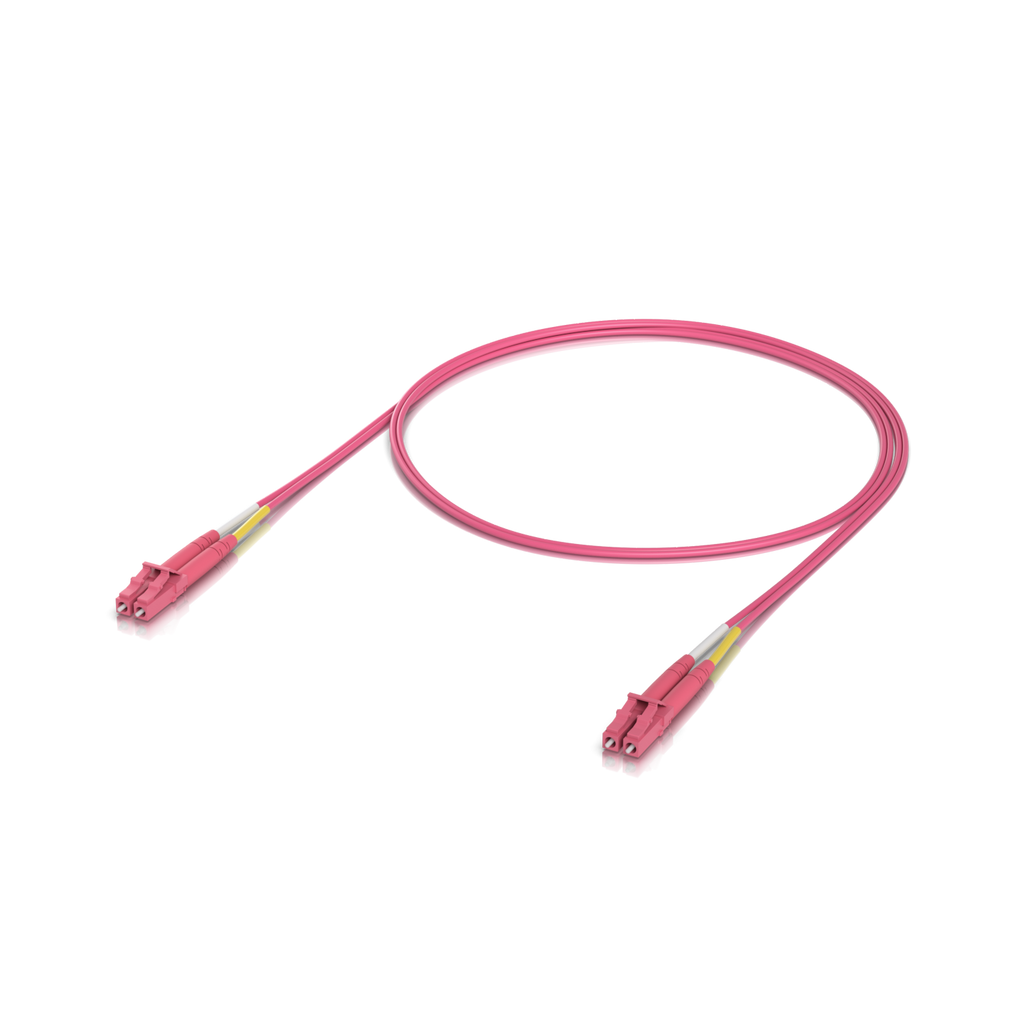

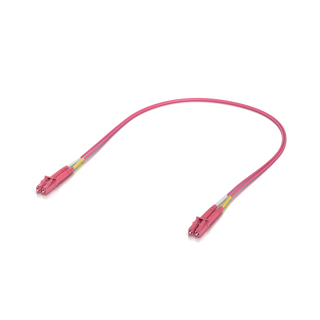

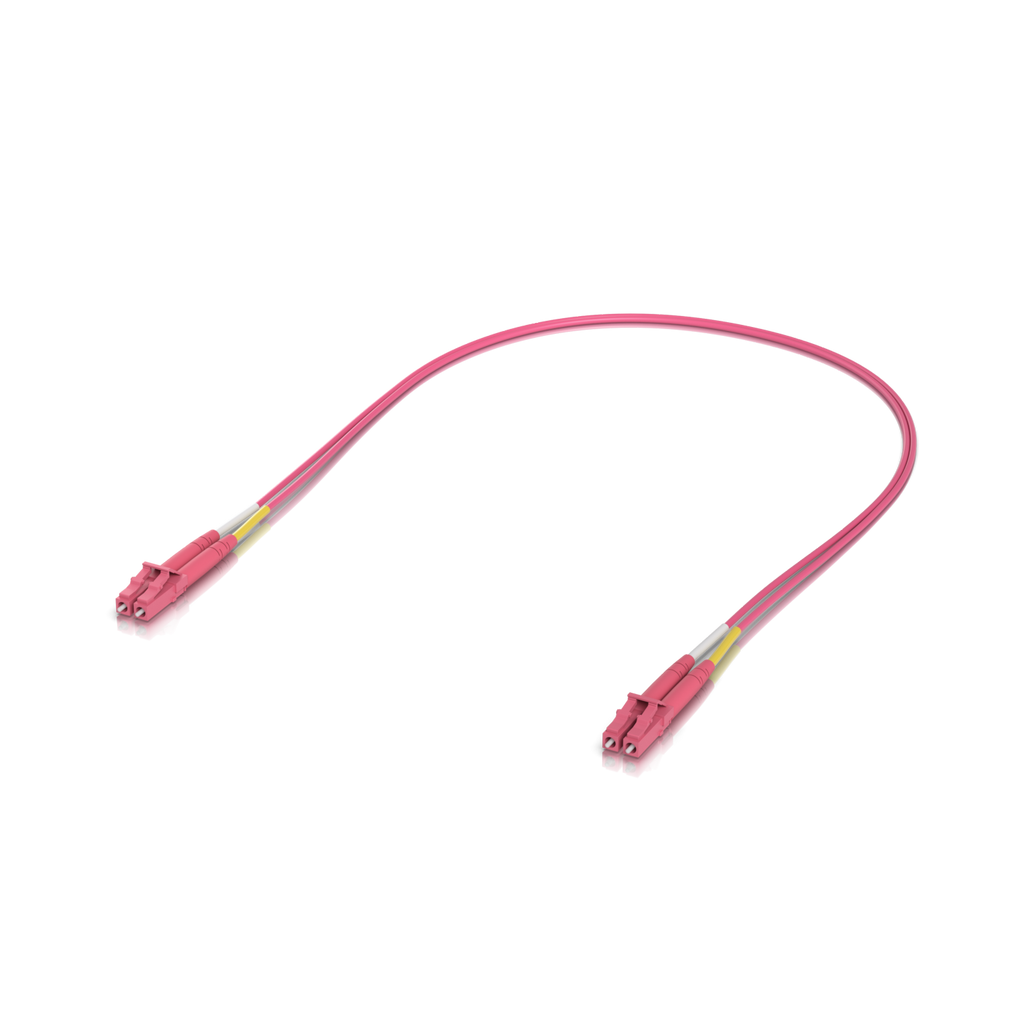

OM4 Duplex LC UPC Fiber Patch Cable
UACC-OFC-M2-LULU-0.5M · 0.5 m
Indoor OM4 multi-mode fiber patch cable with duplex LC UPC connectors.Key features OM4 multi-mode fiber Duplex LC UPC connectors Cable length: 0.5 to 30 mSpecificationsOverview Available Lengths 0.5, 1, 3,...
Or build it into a bundle — save up to 6% ↓What it is, and who it is for.
Ready for the floor — the gear that runs a real business all day, every day.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Indoor OM4 multi-mode fiber patch cable with duplex LC UPC connectors.
Key features
OM4 multi-mode fiber
Duplex LC UPC connectors
Cable length: 0.5 to 30 m
Specifications
Overview
| Available Lengths | 0.5, 1, 3, 5, 10, 15, 30 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Pack Options | Single Unit 50-Pack (0.5/1/3 m) |
| Connector | (2) Duplex LC UPC |
| Operating Environment | Indoor |
| Fiber Mode | OM4 |
| Jacket Diameter | 2 mm (0.08") |
| Jacket Material | Low smoke zero halogen (LSZH) |
| Jacket Color | Rose |
| Wavelength | 850/1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
Build around the OM4 Duplex LC UPC Fiber Patch Cable.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the Giant fills as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Start typing your address — we pull the property's square footage and floors, then size the kit. Adjust anything before you build.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from accessories & cables. Most buyers reading this page should buy the middle column.
UniFi Patch Cable
OM4 Duplex LC UPC Fiber Patch Cable
UniFi PoE Adapter (15W)Asked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
