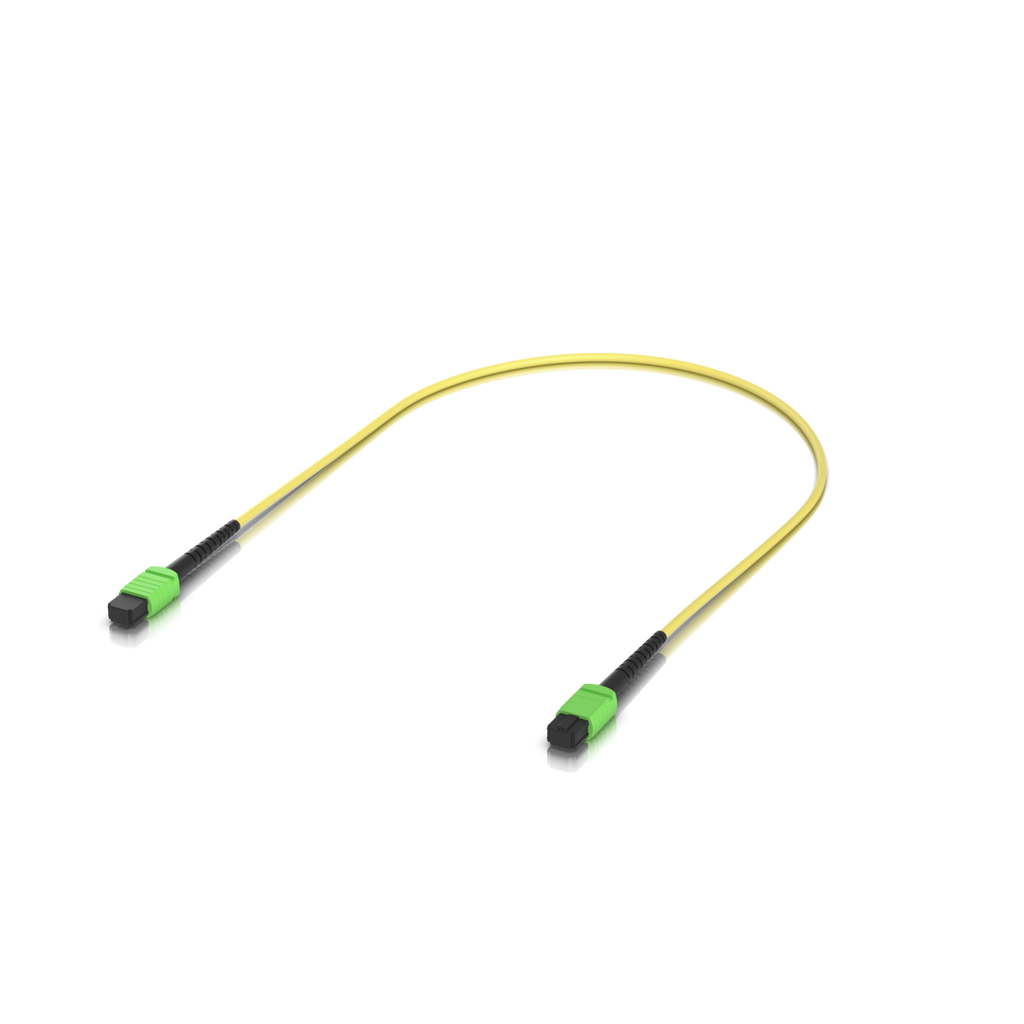

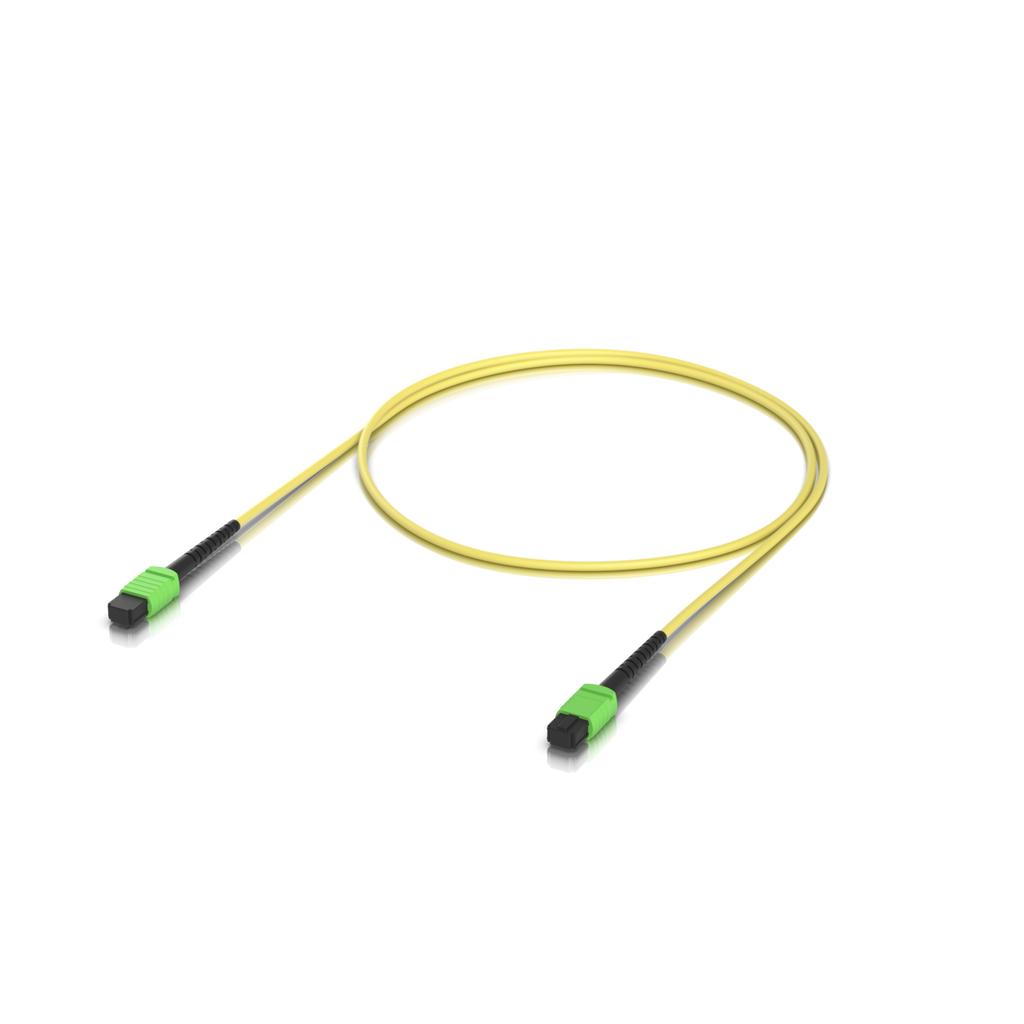

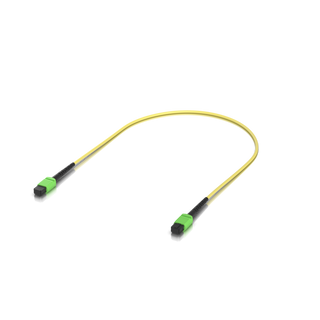

OS2 MPO-12 APC Fiber Patch Cable
UACC-OFC-SA-MPMP-0.5M · 0.5 m
Indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors designed for 100G applications.Key features OS2 single-mode fiber MPO-12 Type B APC connectors Cable length: 0.5 to 10...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors designed for 100G applications.
Key features
OS2 single-mode fiber
MPO-12 Type B APC connectors
Cable length: 0.5 to 10 m
Specifications
Overview
| Available Lengths | 0.5, 1, 3, 5, 10 m (1.6, 3.3, 9.8, 16.4, 32.8 ft) |
| Pack Options | Single Unit 10-Pack (0.5/1/3m) |
| Connector | (2) MPO-12 Type B APC |
| Operating Environment | Indoor |
| Fiber Mode | OS2 |
| Jacket Diameter | 3 mm (0.12") |
| Jacket Material | Low smoke zero halogen (LSZH) |
| Jacket Color | Yellow |
| Wavelength | 1310/1550 nm |
| Insertion Loss | ≤ 0.6 dB |
| Return Loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
