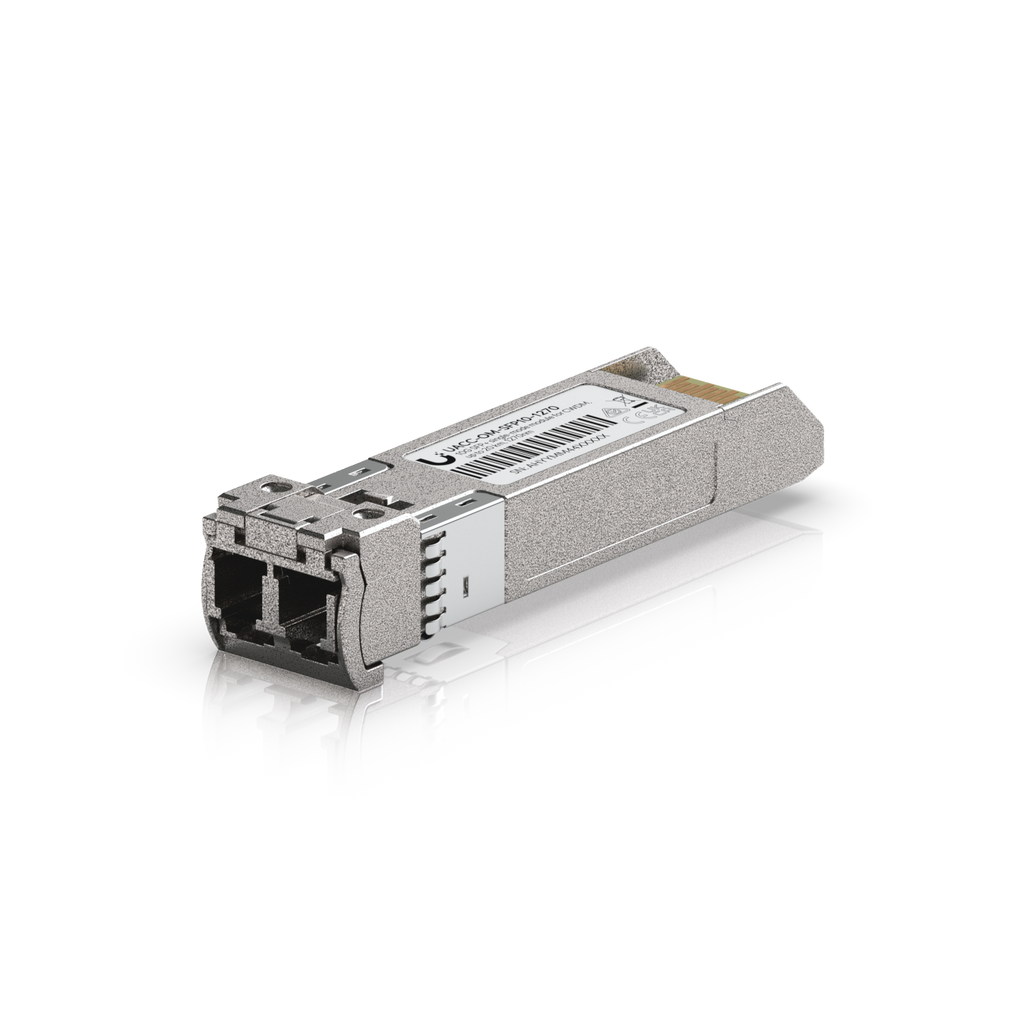

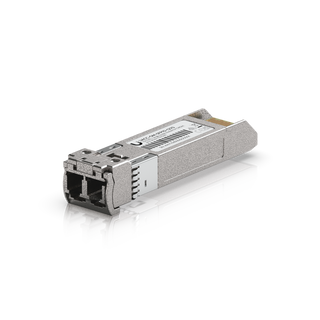

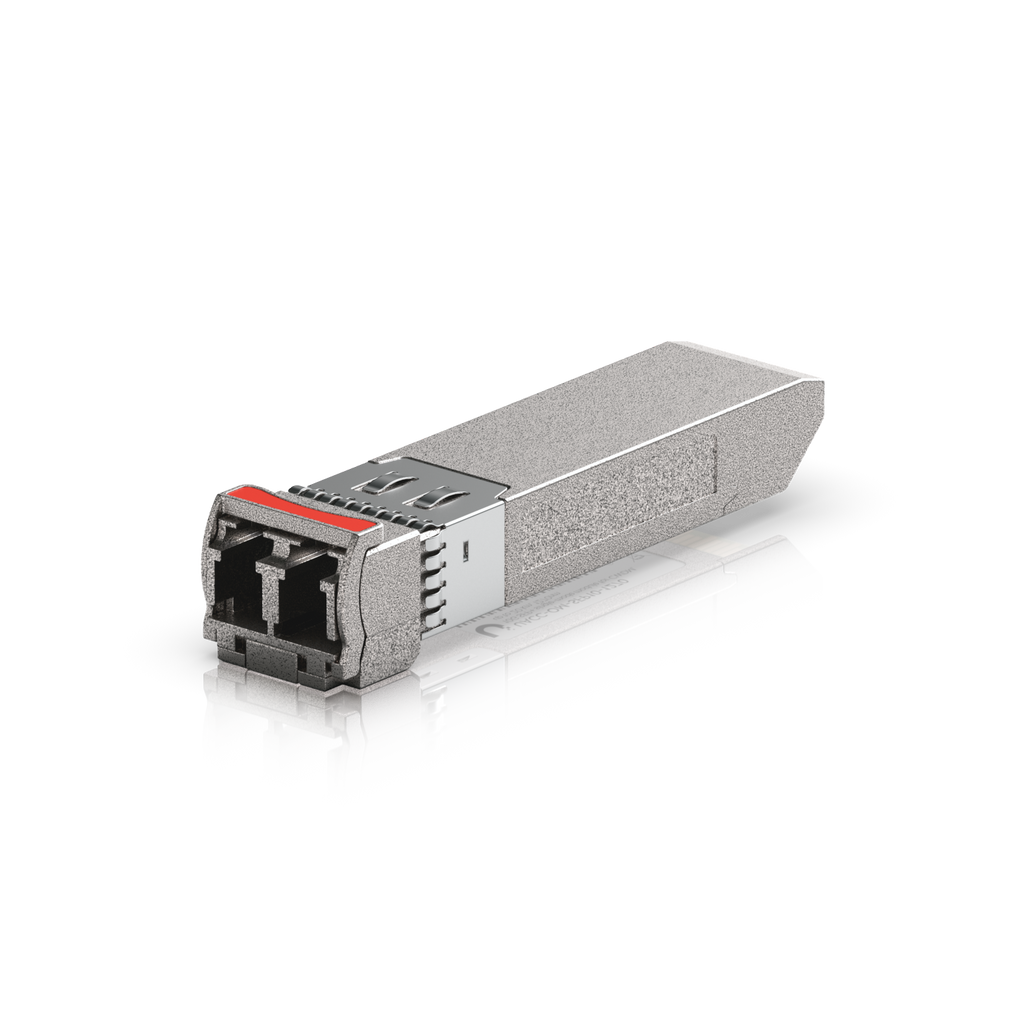

10G CWDM Single-Mode Optical Module
UACC-OM-SFP10-1270 · 1270 nm
SFP+ transceiver for CWDM that supports 10G connections up to 20 km using single-mode fiber with a duplex LC UPC connector.Key features Max data rate: 10 Gbps Compatible with SFP+...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
SFP+ transceiver for CWDM that supports 10G connections up to 20 km using single-mode fiber with a duplex LC UPC connector.
Key features
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Operate in pairs of the same wavelength
Supports single-mode fiber connections up to 20 km*
*Fiber cable is not included.
Specifications
Overview
| Connector | SFP+ to Duplex LC |
| Supported Media | Fiber |
| Supported Cable Distance | 20 km (65,617 ft) |
| Max. Power Consumption | 1.2W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| Ambient Operating Humidity | 0 to 85% noncondensing |
| Operating Wavelength | UACC-OM-SFP10-1270~1330: 1260 to 1620 nm UACC-OM-SFP10-1450~1590: 1340 to 1620 nm |
