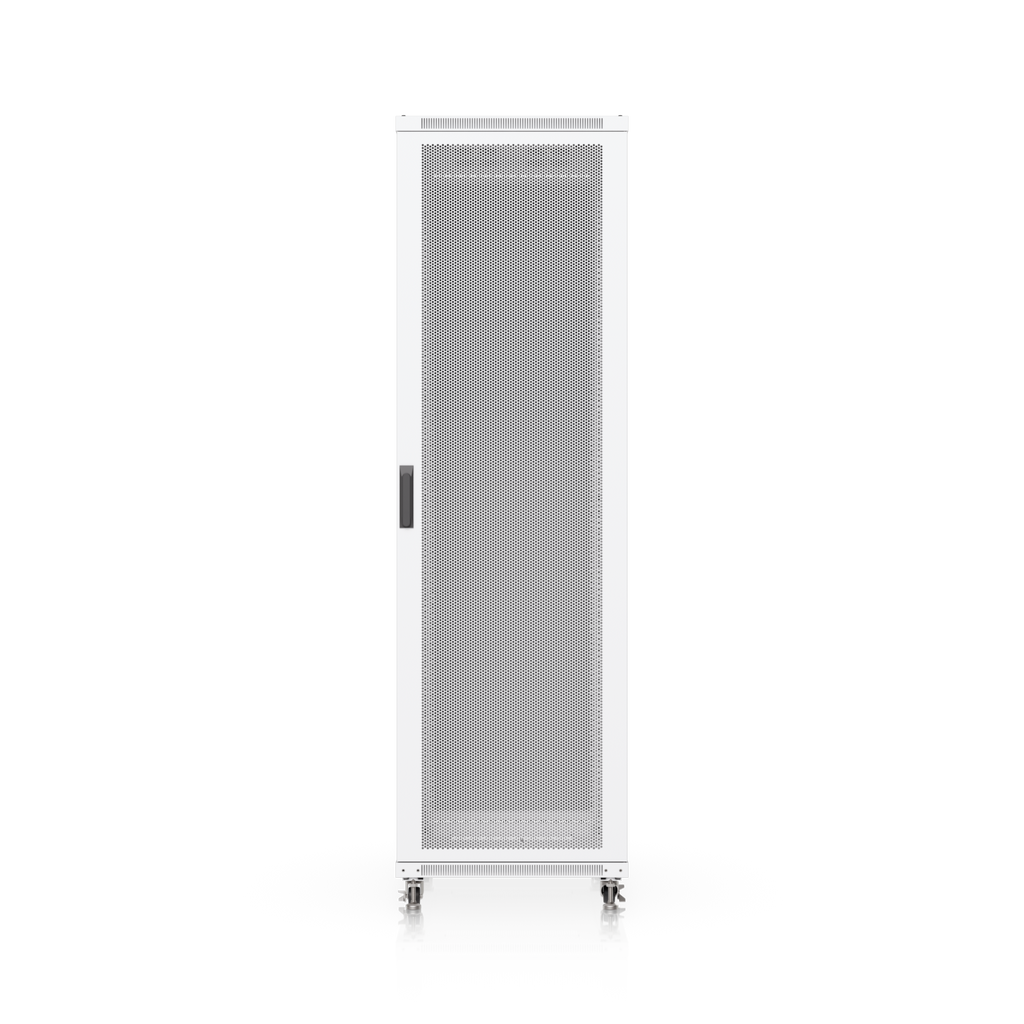

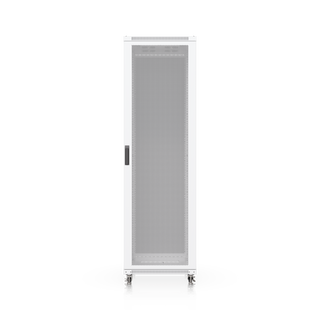

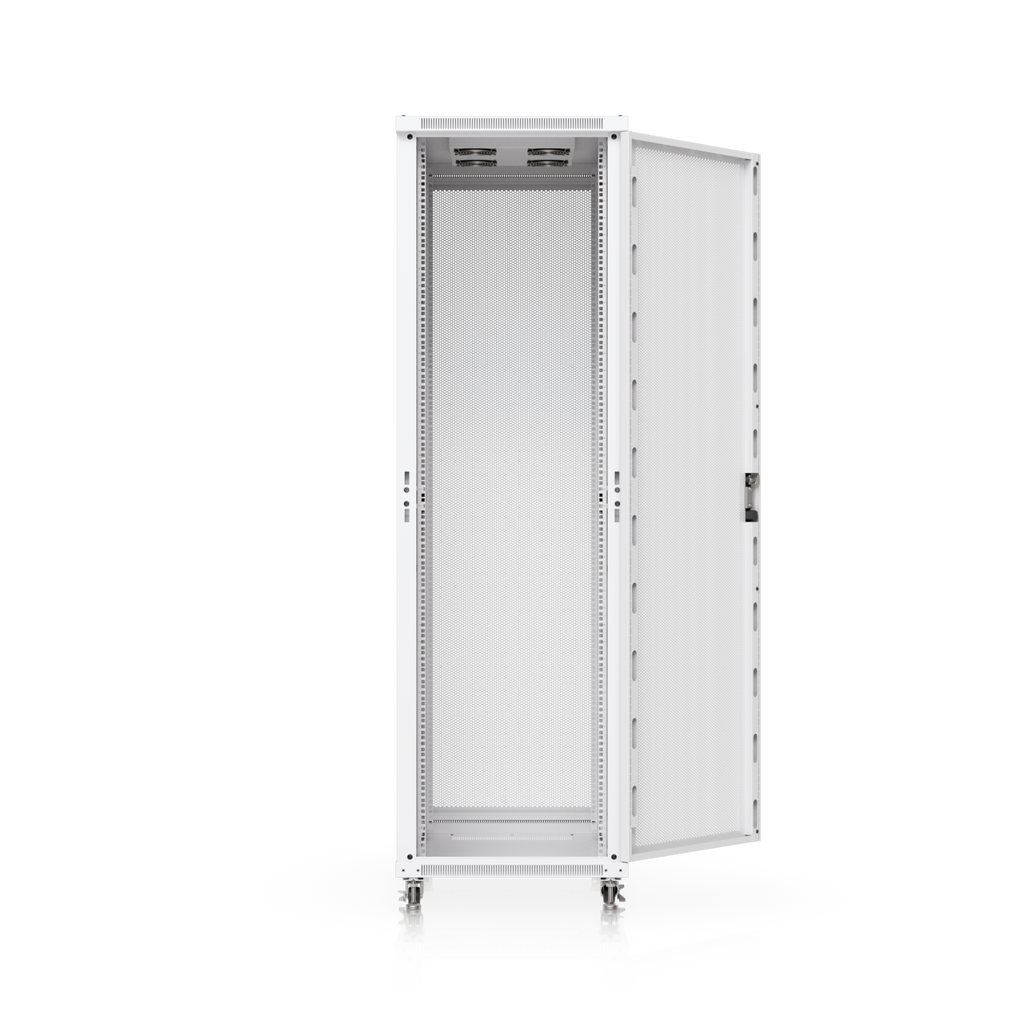

42U Rack Cabinet, 1,000 mm, Perforated Door
UACC-Rack-42U-1000-P
Fully assembled floor rack with built-in fans, removable panels, and lockable casters, engineered for optimal airflow, heavy-duty stability, and easy equipment access.Shipping note. Due to the product’s size and weight,...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.

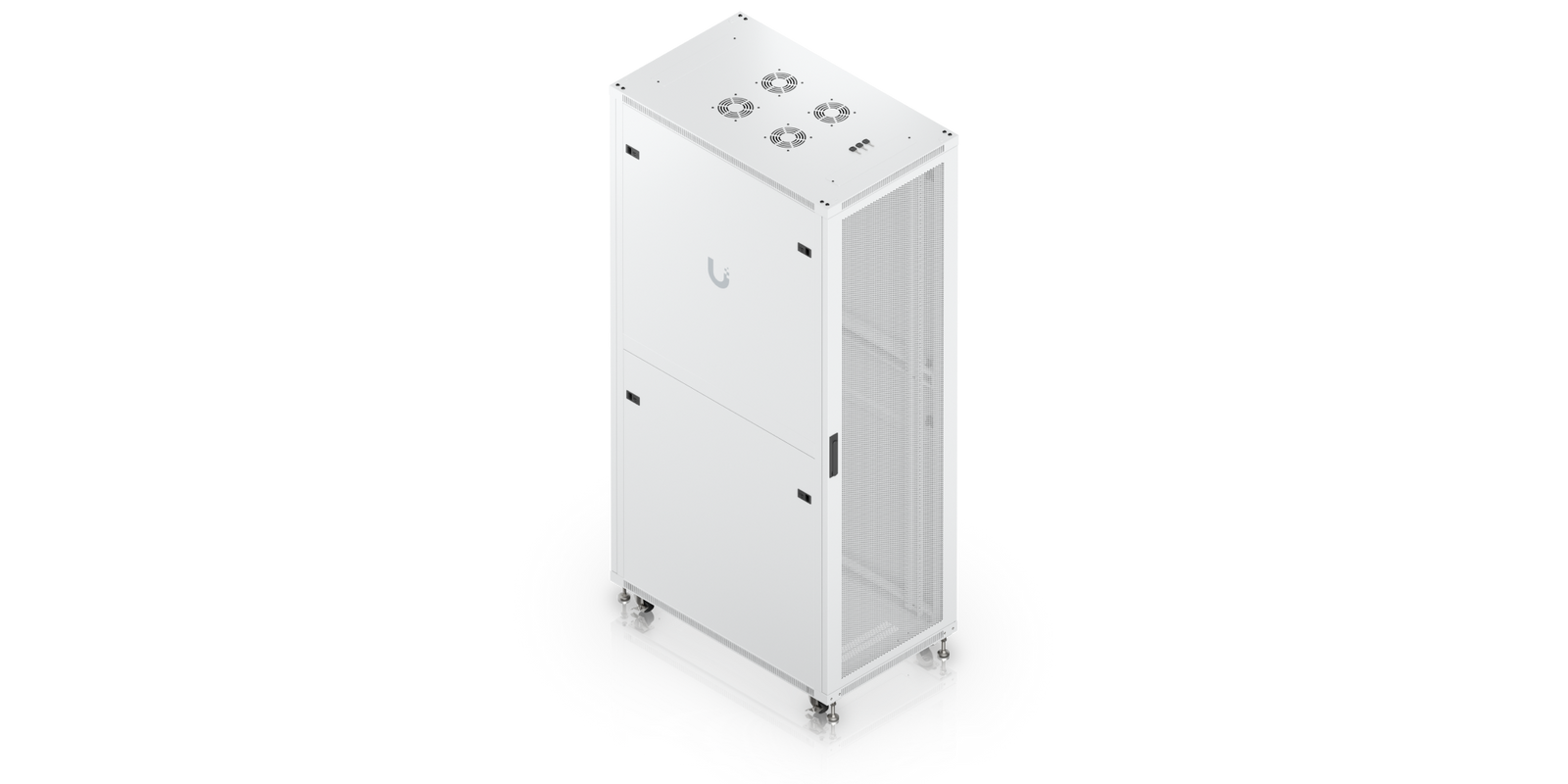

Fully assembled floor rack with built-in fans, removable panels, and lockable casters, engineered for optimal airflow, heavy-duty stability, and easy equipment access.
Shipping note. Due to the product’s size and weight, delivery may be restricted for certain residential addresses. Delivery is door-to-door and will not be delivered inside.
Specifications
Overview
| Dimensions | Packaging: 740 x 1,165 x 2,223 mm (29.1 x 45.9 x 87.5") Rack with caster: 600 x 1,000 x 2,050 mm (23.6 x 39.4 x 80.7") Rack without caster: 600 x 1,000 x 1,966 mm (23.6 x 39.4 x 77.4") |
| Weight | Packaging: 112.4 kg (247.8 lb) Rack: 84.2 kg (185.6 lb) |
| Enclosure Material | SPCC steel Door/side panels: 1.2 mm (0.05") Main body: 1 mm (0.04") Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| U Height | 42U |
| Rack Type | 4 post, enclosed cabinet |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth | Default 652.3 mm (25.7") Max. 877.3 mm (34.5") Adjustable pitch 15 mm (0.6") |
| Max. Weight Capacity | Static 800 kg (1764 lb) Rolling 320 kg (705 lb) |
| Front Door | Perforated Default left-hand outswing, reversible |
| Rear Door | Perforated Default left-hand outswing, reversible |
| Side Panels | (4) Solid, removable and lockable |
| Mounting | Floor stand |
| Cable Entry Opening | (2) Top: 335 x 52.5 mm (13.2 x 2.1") (2) Bottom: 335 x 52.5 mm (13.2 x 2.1") |
| Security | (1) Front door lock (1) Rear door lock (8) Side panel locks (3) Keys |
| Standard | CE; EIA/ECA-310-E; RoHS |
Downloads & documents
Build around the 42U Rack Cabinet, 1,000 mm, Perforated Door.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from accessories & cables. Most buyers reading this page should buy the middle column.
UniFi PoE++ Adapter (60W)
42U Rack Cabinet, 1,000 mm, Perforated DoorAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
