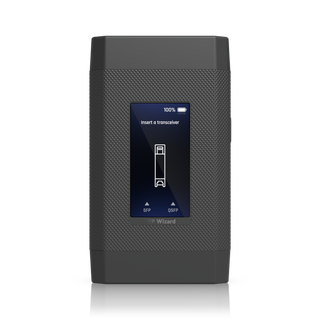

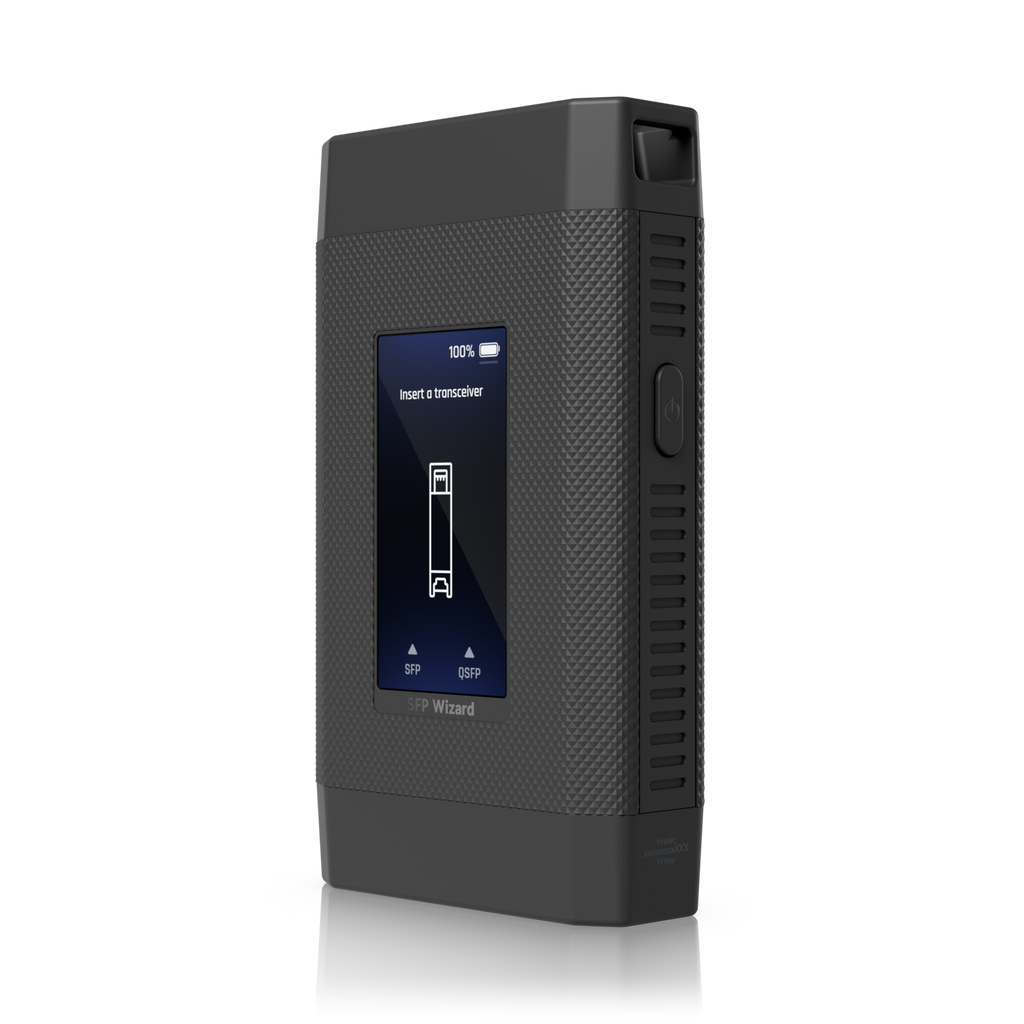

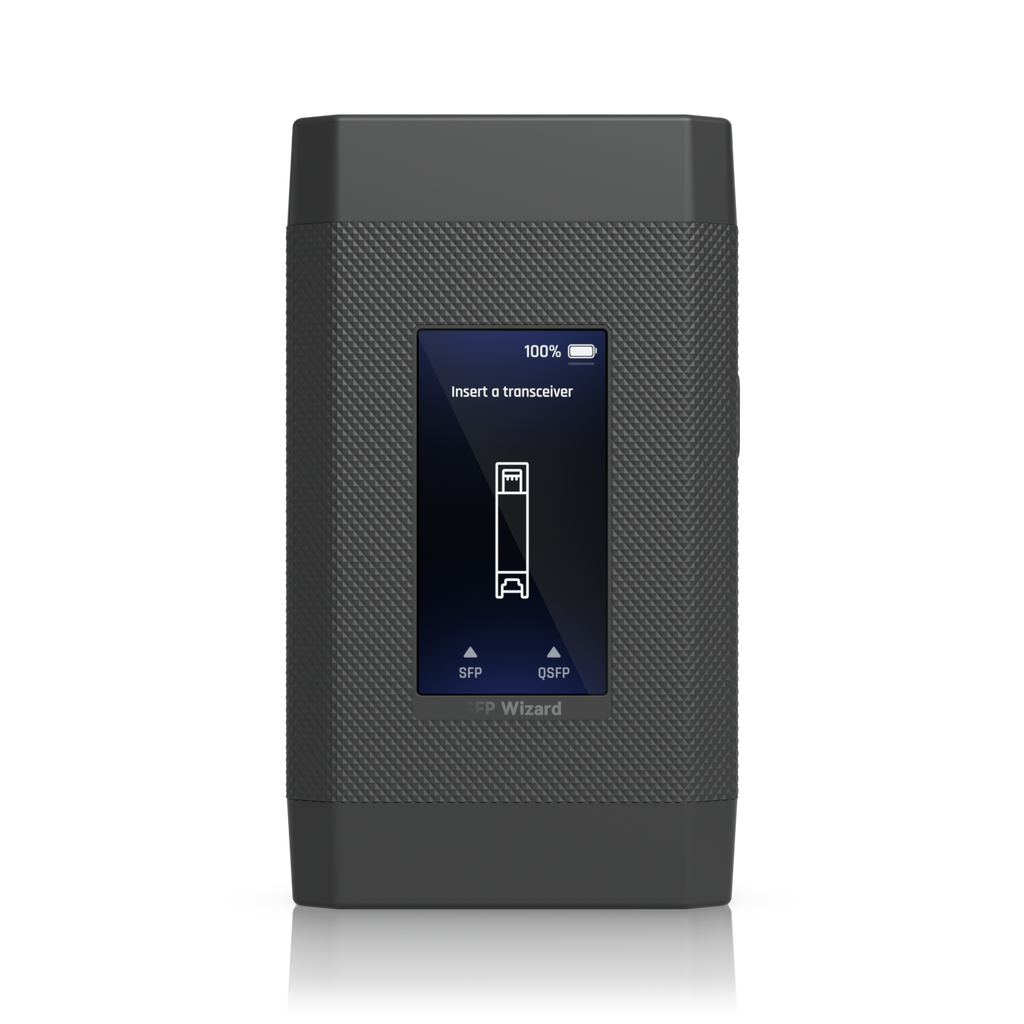

SFP Wizard
UACC-SFP-Wizard
Instantly reprogram, test, and unlock universal compatibility for every optical module — with full diagnostics and OTA updates built in.Key features Copy optical module profiles Write or restore profile to...

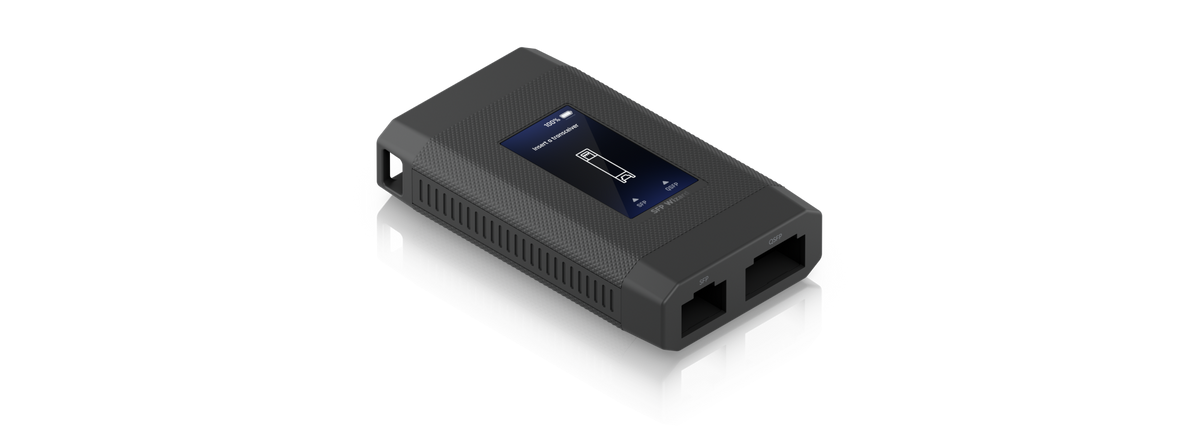

Or build it into a bundle — save up to 6% ↓What’s in the box
Everything that ships with your SFP Wizard — straight from the manufacturer.
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Instantly reprogram, test, and unlock universal compatibility for every optical module — with full diagnostics and OTA updates built in.
Key features
Copy optical module profiles
Write or restore profile to Ubiquiti optical module instantly
Monitor optical module health in real time via DDM
Specifications
Mechanical
| Dimensions | 90.8 x 52.1 x 20.2 mm (3.6 x 2.1 x 0.8") |
| Weight | 84 g (3 oz) |
| Enclosure Material | Polycarbonate |
Hardware
| Networking Interface | BLE |
| Power Method | Li-ion battery |
| Battery Life | Up to 75 minutes of continuous SFP transceiver diagnostics with laser on, or 35 minutes with QSFP transceivers |
| Power Supply | Rechargeable Li-ion battery, 3.7V DC, 300mAh |
| Supported Voltage Range | USB-C: 5V DC/0.5A |
| Max. Power Consumption | 0.6W |
| Supported Form Factor | SFP, SFP+, SFP28, QSFP+, QSFP28 |
| LCM Display | 1.9" touchscreen |
| Buttons | (1) Power |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Software
| Mobile App | UniFi iOS™ version 10.29.1 and later UniFi Android™ version 10.30.2 and later |
