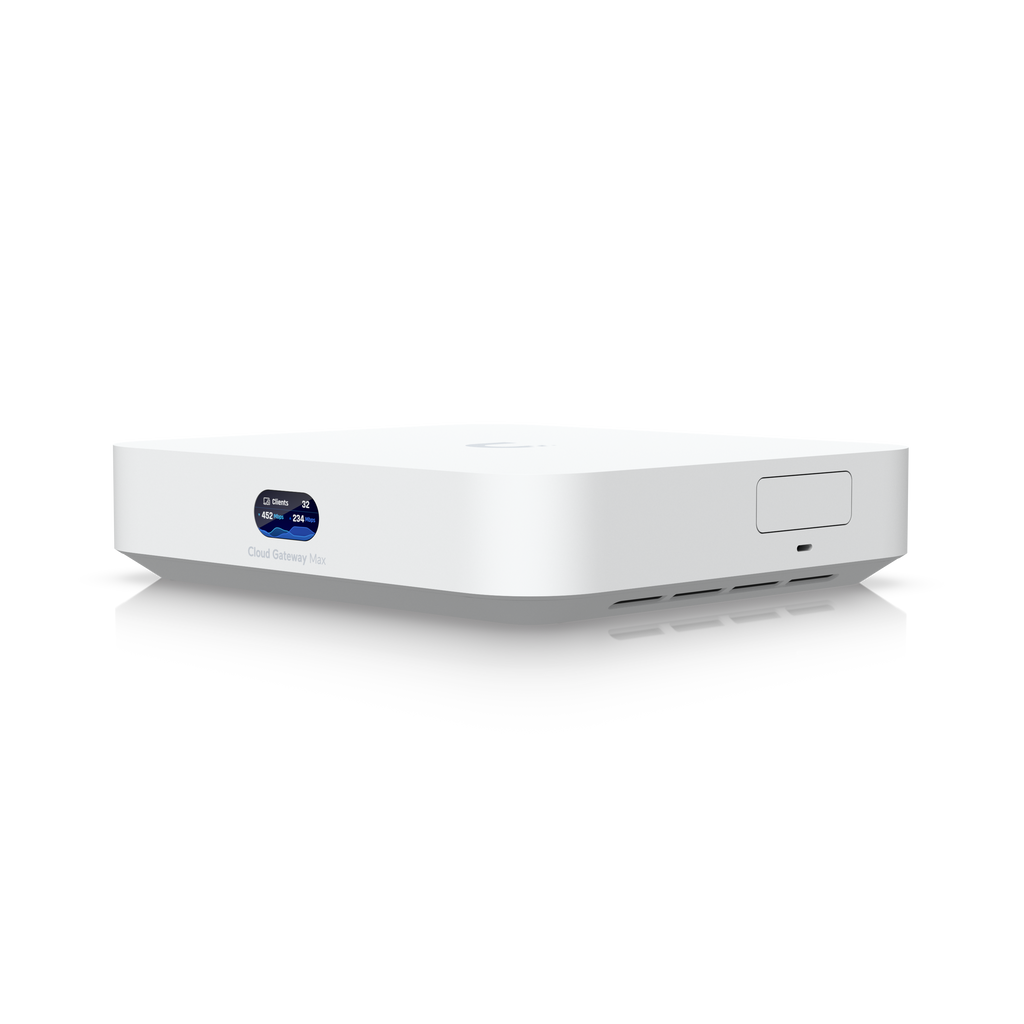

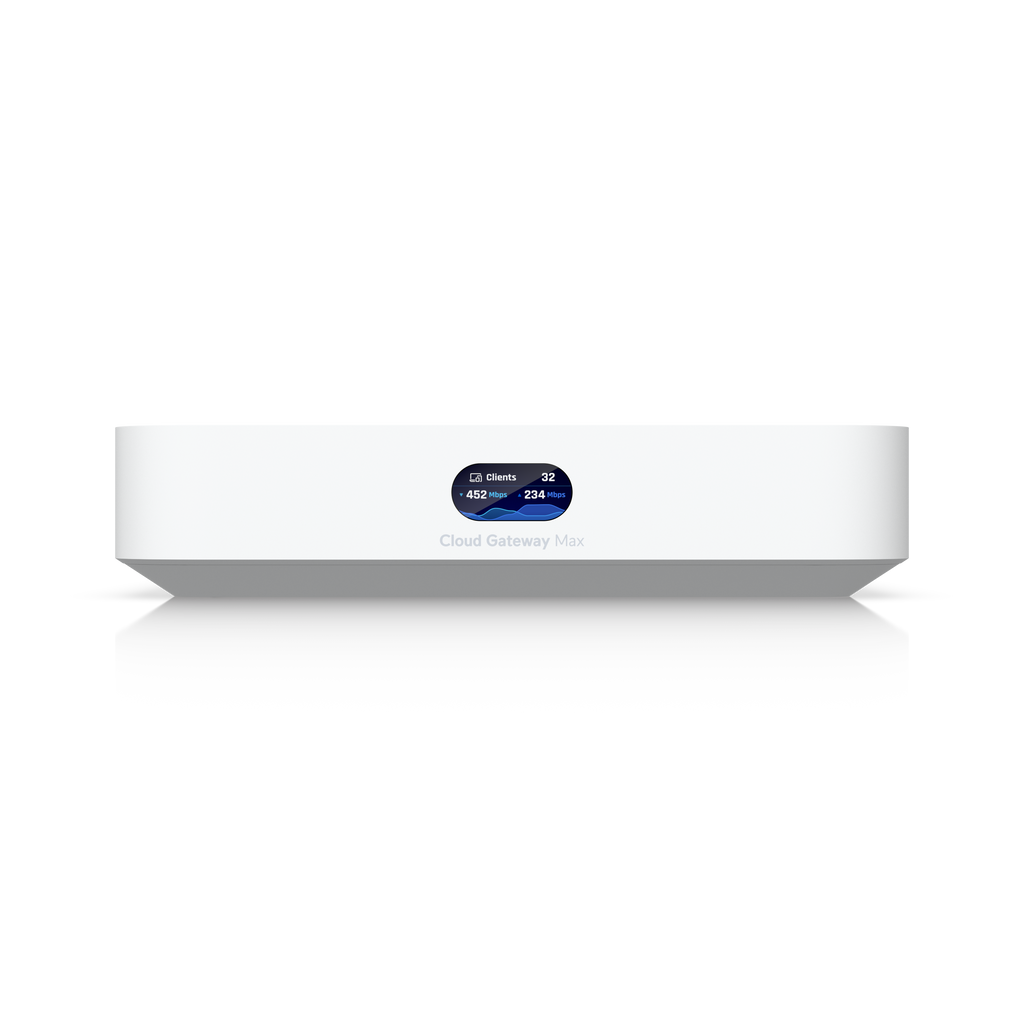

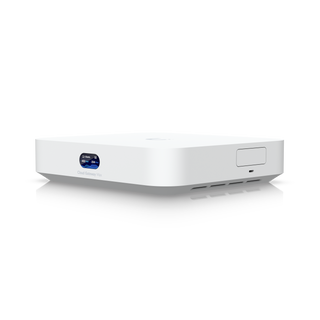

Cloud Gateway Max
UCG-Max · US Version
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.Key features Includes full UniFi application suite for device management Manages...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
Key features
Includes full UniFi application suite for device management
Manages 30+ UniFi devices and 300+ clients
2.3 Gbps routing with IDS/IPS
Multi-WAN load balancing
512 GB NVMe SSD storage for NVR
0.96" LCM status display
USB-C powered (adapter included)
Specifications
Overview
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps With UniFi OS 4.1 or later. |
| Form Factor | Compact desktop |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 2,000 |
Hardware
| NVR Storage | Selectable NVMe SSD up to 2 TB No Storage option does not include NVMe SSD. Third-party SSD installation requires a tray accessory. 512 GB, 1/2 TB option includes tray accessory and NVMe SSD. |
| Max. Power Consumption | 16.1W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 55 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 09004-24-08356, SRRC |
Software
| Mobile App | UniFi iOS™ and Android™: Version 10.17.2 and later |
Downloads & documents
