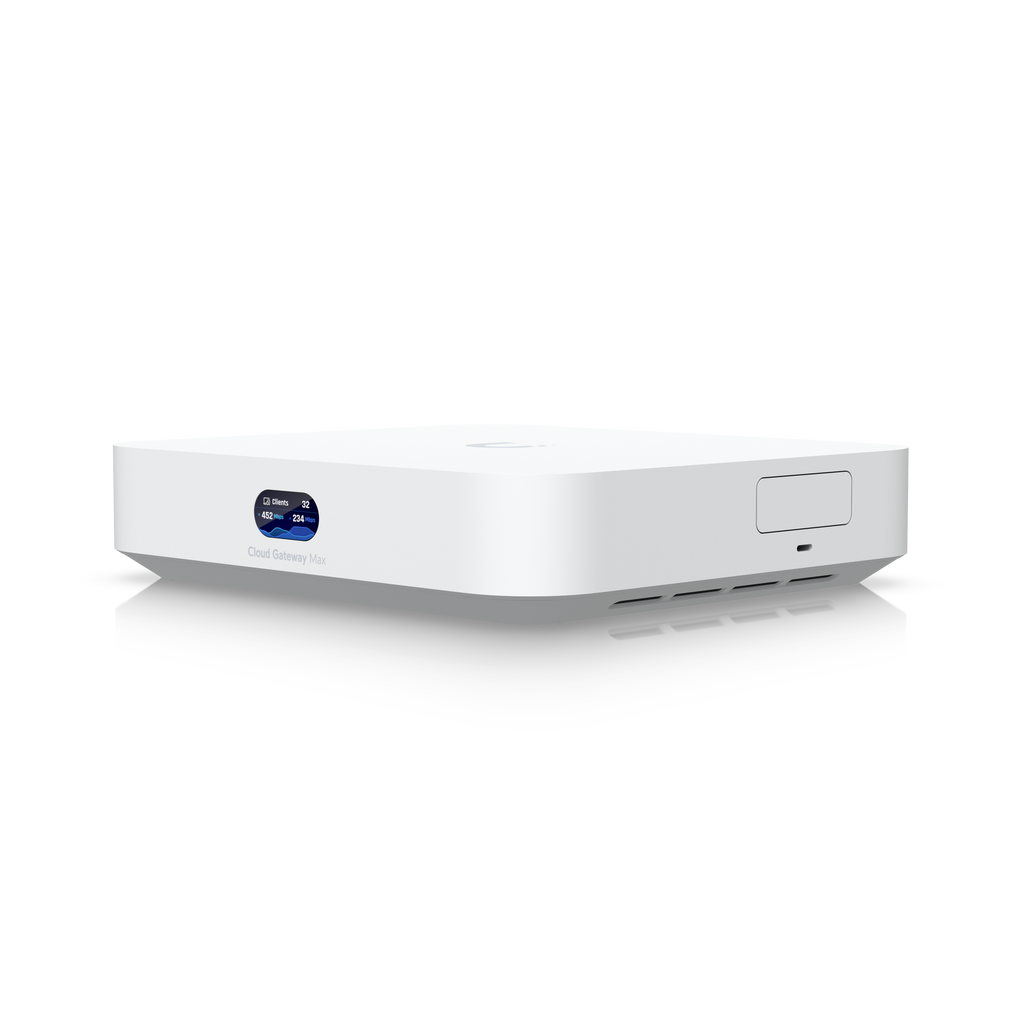

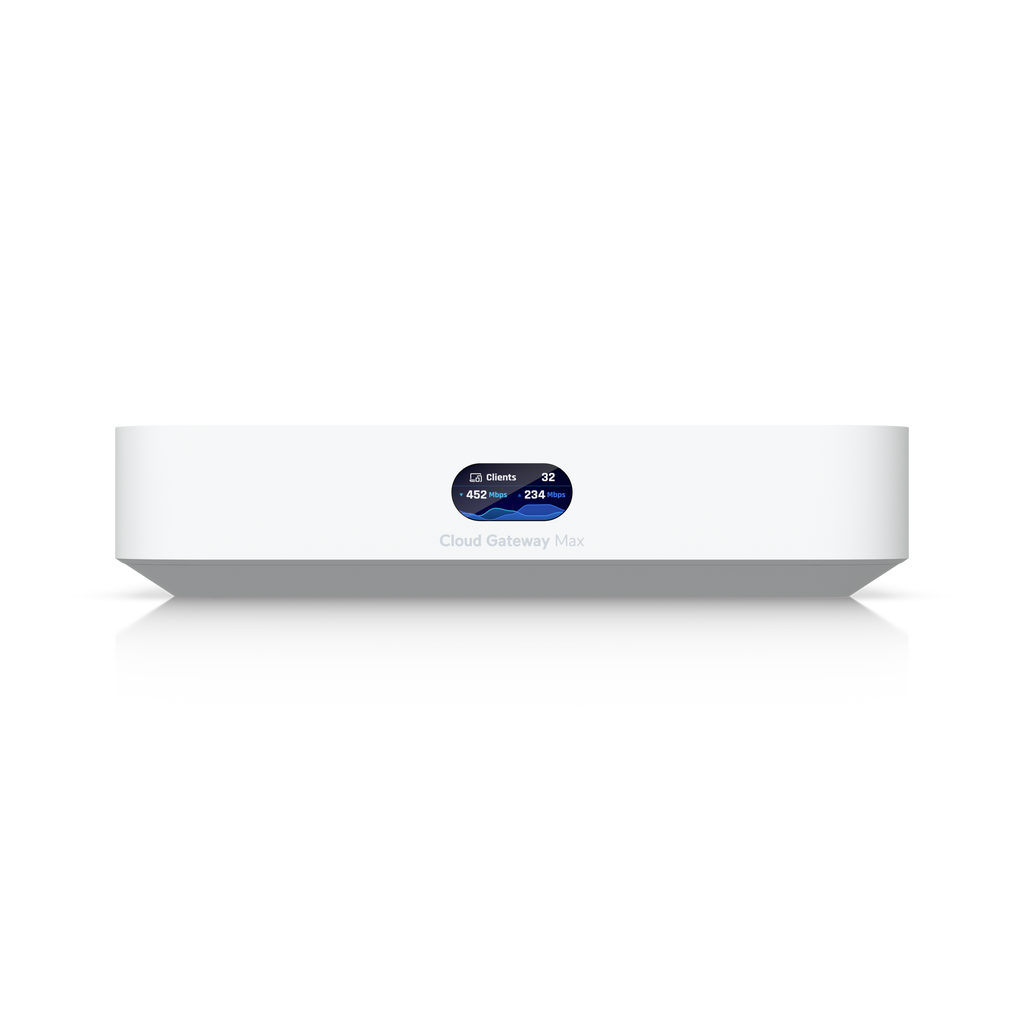

Cloud Gateway Max NS
UCG-Max-NS · US Version
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.Key features Includes full UniFi application suite for device management Manages...

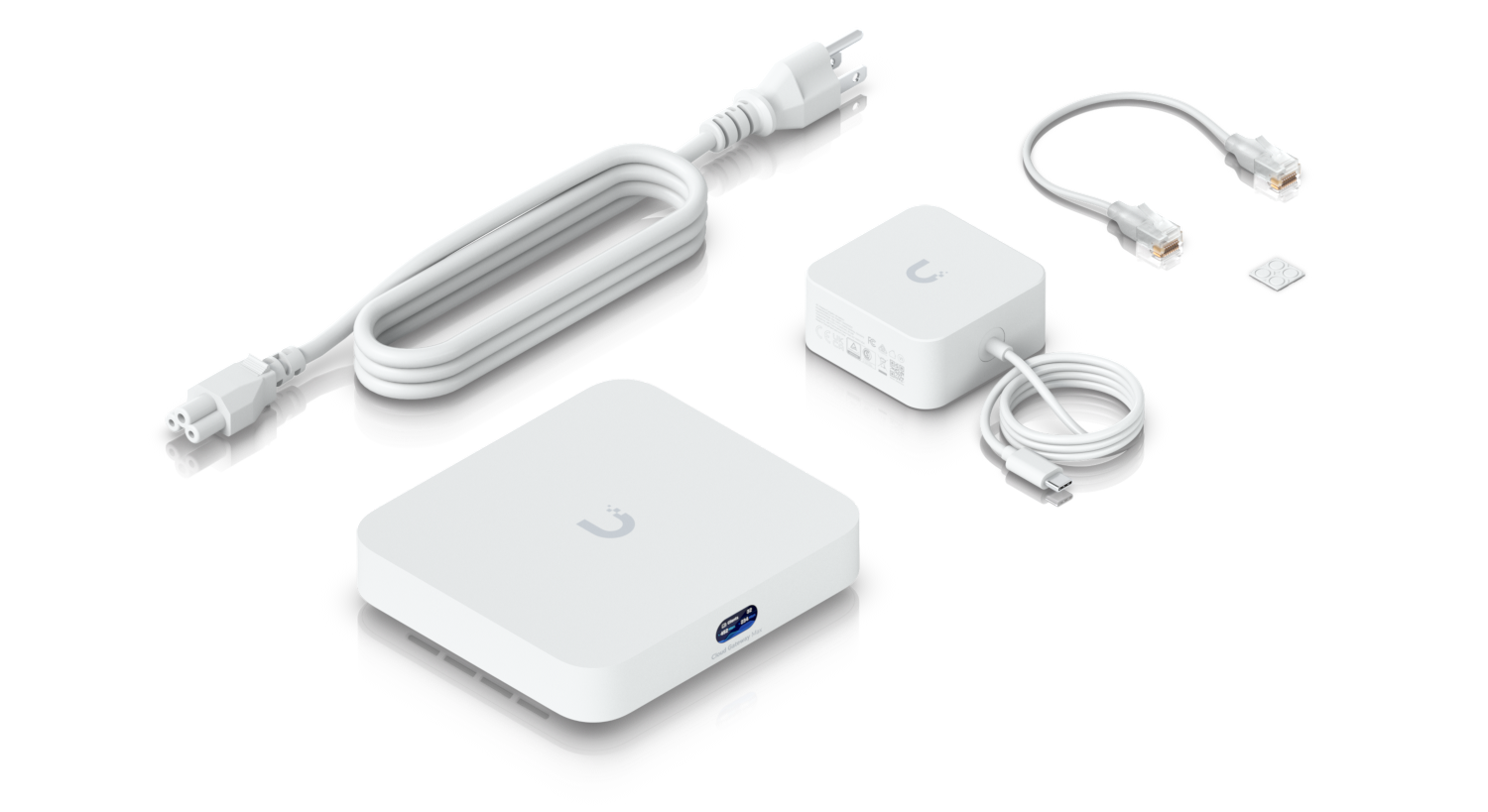

What’s in the box
Everything that ships with your Cloud Gateway Max NS — straight from the manufacturer.
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
How it compares
The honest cross-shop against the real alternatives — same job, no recurring license fees.
| Cloud Gateway Max NSUniFi · $249.00 | Firewalla Gold Plus~$359 | TP-Link Omada ER7212PC~$170 | |
|---|---|---|---|
| Recurring license | None | None | None |
| Management | UniFi OS — self-host or cloud, free | Mobile app | Omada controller |
| Ecosystem | Full UniFi stack — network + Protect + Access | Firewall + parental only | Omada network only |
| Vendor | Ubiquiti, US-based | Firewalla, US-based | TP-Link |
Same job, no subscription, and it feeds the same console as your cameras and switches. See the full comparison →
Buy your Cloud Gateway Max NS here and a US-based team stands behind it — pre-sales design, setup guidance, and RMA help when you need it. Not a forum thread you hope someone answers. A real Giant in your corner.
Get a hand with your build →What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
Key features
Includes full UniFi application suite for device management
Manages 30+ UniFi devices and 300+ clients
2.3 Gbps routing with IDS/IPS
Multi-WAN load balancing
Selectable NVMe SSD storage up to 2 TB for NVR
0.96" LCM status display
USB-C powered (adapter included)
Specifications
Overview
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50 |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps With UniFi OS 4.1 or later. |
| Form Factor | Compact desktop |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 2,000 |
Hardware
| NVR Storage | Selectable NVMe SSD up to 2 TB No Storage option does not include NVMe SSD. Third-party SSD installation requires a tray accessory. 512 GB, 1/2 TB option includes tray accessory and NVMe SSD. |
| Max. Power Consumption | 16.1W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 55 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel, SRRC |
Software
| Mobile App | UniFi iOS™ and Android™: Version 10.17.2 and later |
Downloads & documents
Build around the Cloud Gateway Max NS.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the Giant fills as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Start typing your address — we pull the property's square footage and floors, then size the kit. Adjust anything before you build.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cloud gateways. Most buyers reading this page should buy the middle column.
UniFi Express 7
Cloud Gateway Max NS
Dream Router 7Asked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
