Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.Key features WiFi 5 4 spatial streams 115 m² (1,250 ft²) coverage with internal antenna 200+ connected devices...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.
Key features
WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
Powered using PoE
GbE uplink
Versatile wall, ceiling, and pole mounting
(2) RP-SMA connectors for optional external antennas
Weatherproof (outdoor exposed)
Specifications
Overview
| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional) |
| Weatherproofing | IPX6 |
| Power Method | PoE |
Performance
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| 5 GHz | 866.7 Mbps (BW80) |
| 2.4 GHz | 300 Mbps (BW40) |
| 5 GHz | 6.1 dBi |
| 2.4 GHz | 4.7 dBi |
| 5 GHz | 20 dBm |
| 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 8W |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 173 g (6.1 oz) |
| Wind Loading | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Pole Mount Diameter | 1~2" (25–50 mm) |
| Antennas | (1) Internal antenna (2) RP-SMA connectors |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Polycarbonate, SGCC steel, plastic |
| System | (1) Power: White/Blue (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 |
| Certifications | CE, FCC, IC, Anatel: 06237-24-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 7.5.187 and later |
Downloads & documents
Build around the Swiss Army Knife.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from wifi & access points. Most buyers reading this page should buy the middle column.

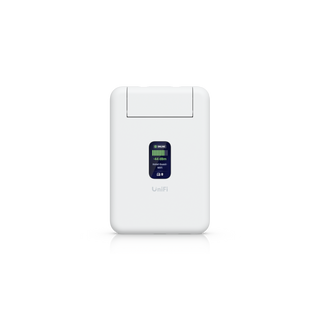

UniFi Travel Router
