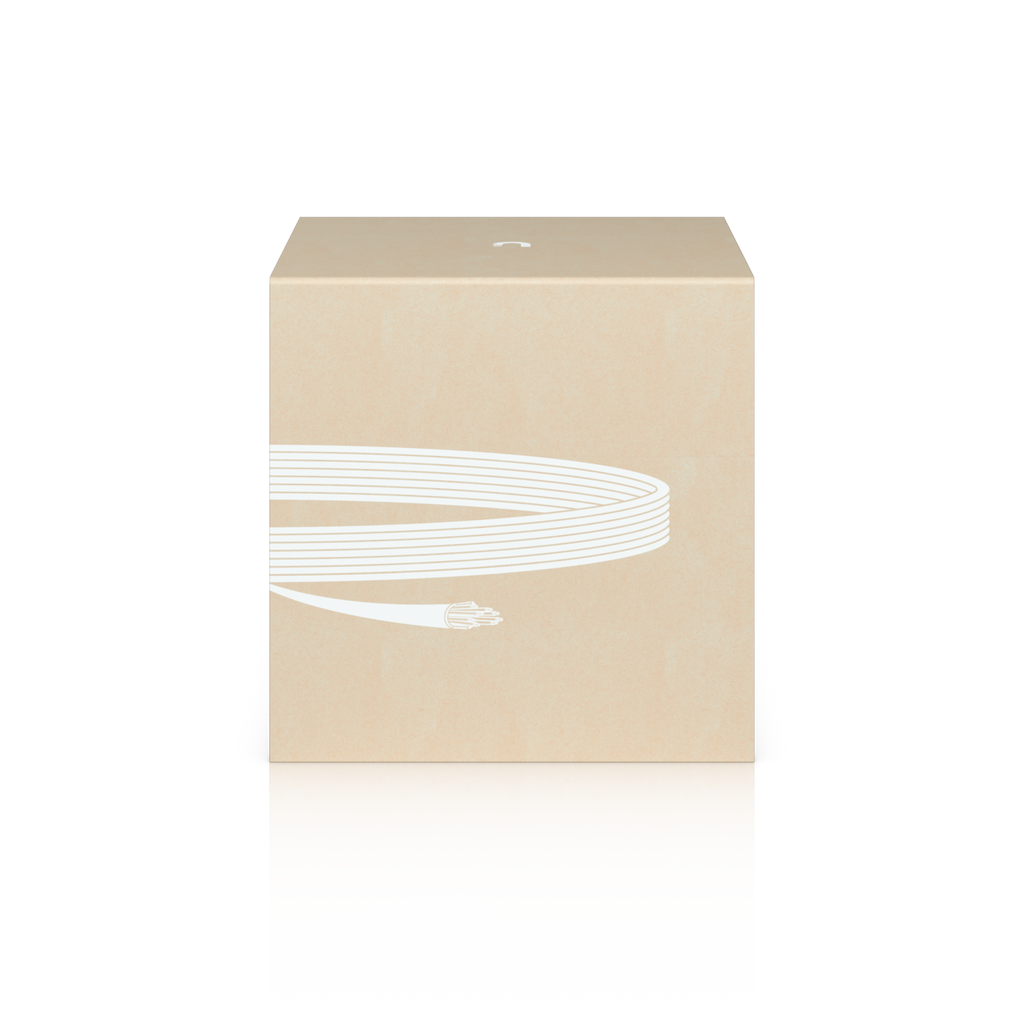

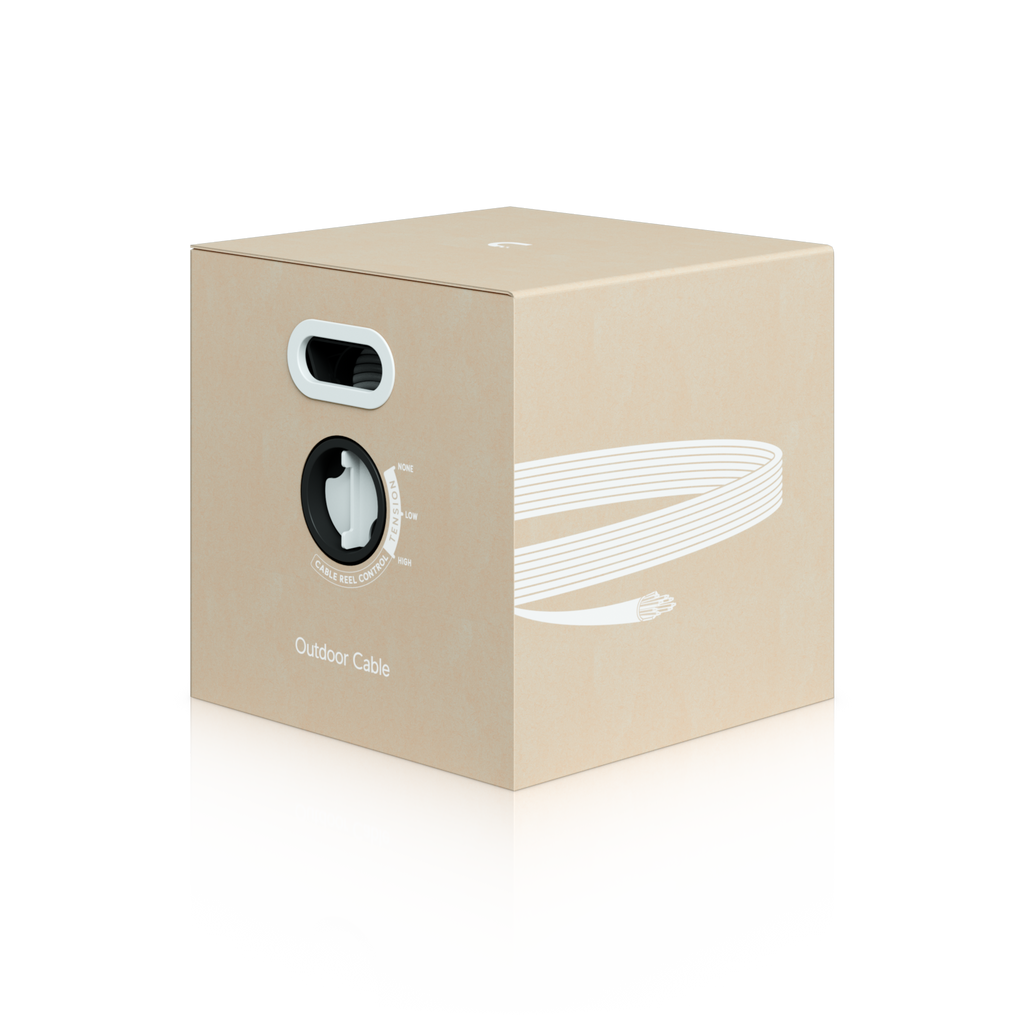

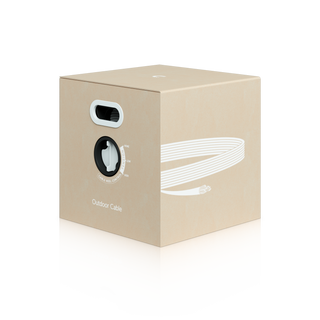

UniFi Outdoor Cable
UACC-Cable-C5e-Outdoor-Pro-305M-W
Outdoor Category 5e cable designed to resist harsh weather damage and electromagnetic interference.Key features Category 5e cable Insulated, weatherproof jacket Cable length 305 mSpecificationsOverview Length 305 m (1,000 ft) Type...
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Outdoor Category 5e cable designed to resist harsh weather damage and electromagnetic interference.
Key features
Category 5e cable
Insulated, weatherproof jacket
Cable length 305 m
Specifications
Overview
| Length | 305 m (1,000 ft) |
| Type | Category 5e |
| Flame Rating | VW-1 (UL1581) |
| Operating Environment | Outdoor |
| Box Dimensions | 358 x 341 x 352 mm (14.09 x 13.43 x 13.86") |
| Box Weight | 14.2 kg (31.32 lb) |
| Jacket Color | White |
| Jacket Diameter | 6 mm (0.24") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | F/UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gage | 24 AWG |
| Bend Radius | Min. 48 mm (1.89 '') |
| Twisting | 4 Twisted pairs with color code. Pair 1: white-blue / blue Pair 2: white-orange / orange Pair 3: white-green / green Pair 4: white-brown / brown |
| Electrical Transmission | TIA/EIA-568-B.2 |
| Flame Test | UL1581 (VW-1) |
| UV Resistance | ASTM G 151/154 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Storage Temperature | -40 to 80°C (-40° to 176°F) |
| Ambient Operating Temperature | -30 to 75°C (-22°F to 167°F) |
