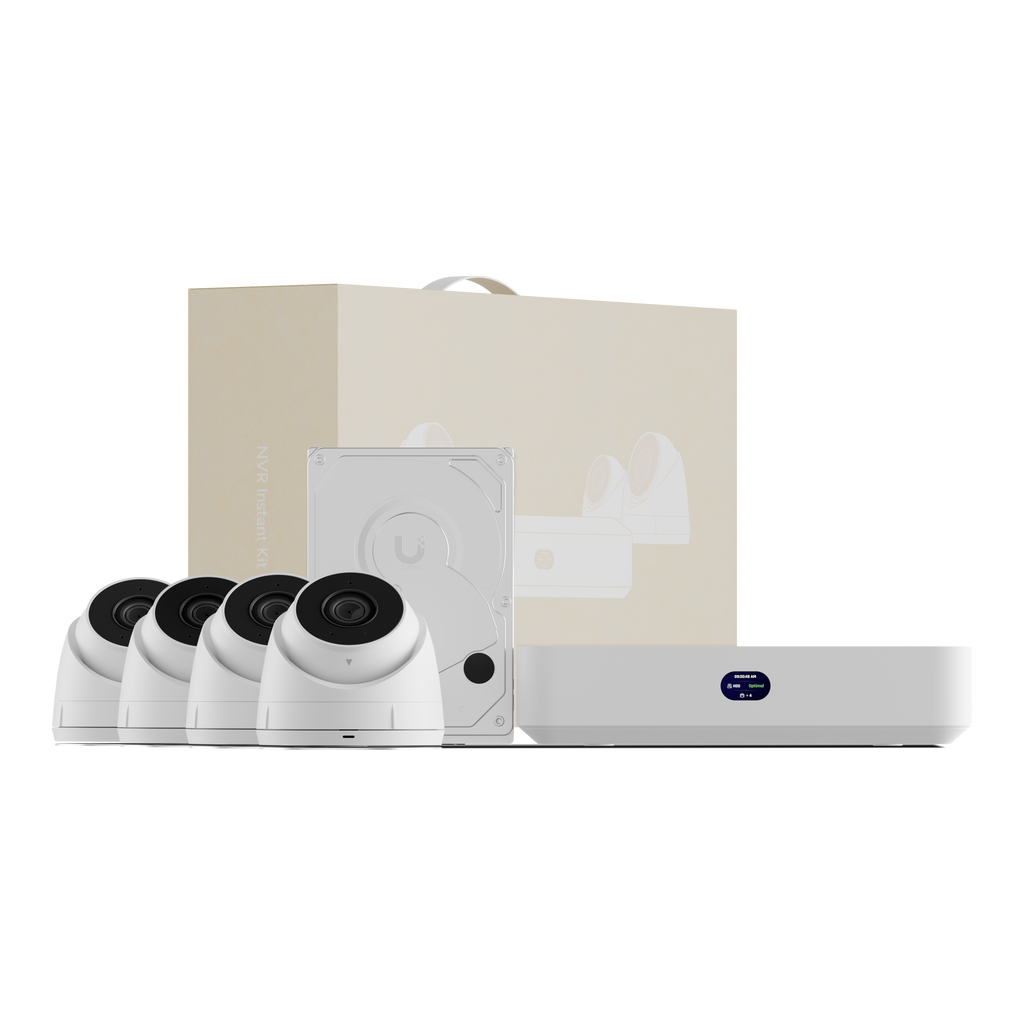

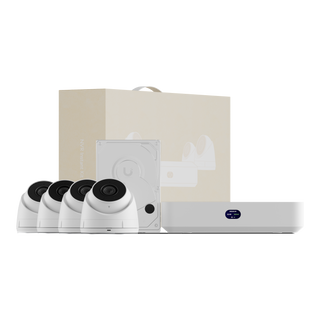

Network Video Recorder Instant Kit
UNVR-Instant-Kit-US
Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.Note....
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Note. Requires connection to a Gateway or Layer 3 switch.
Specifications

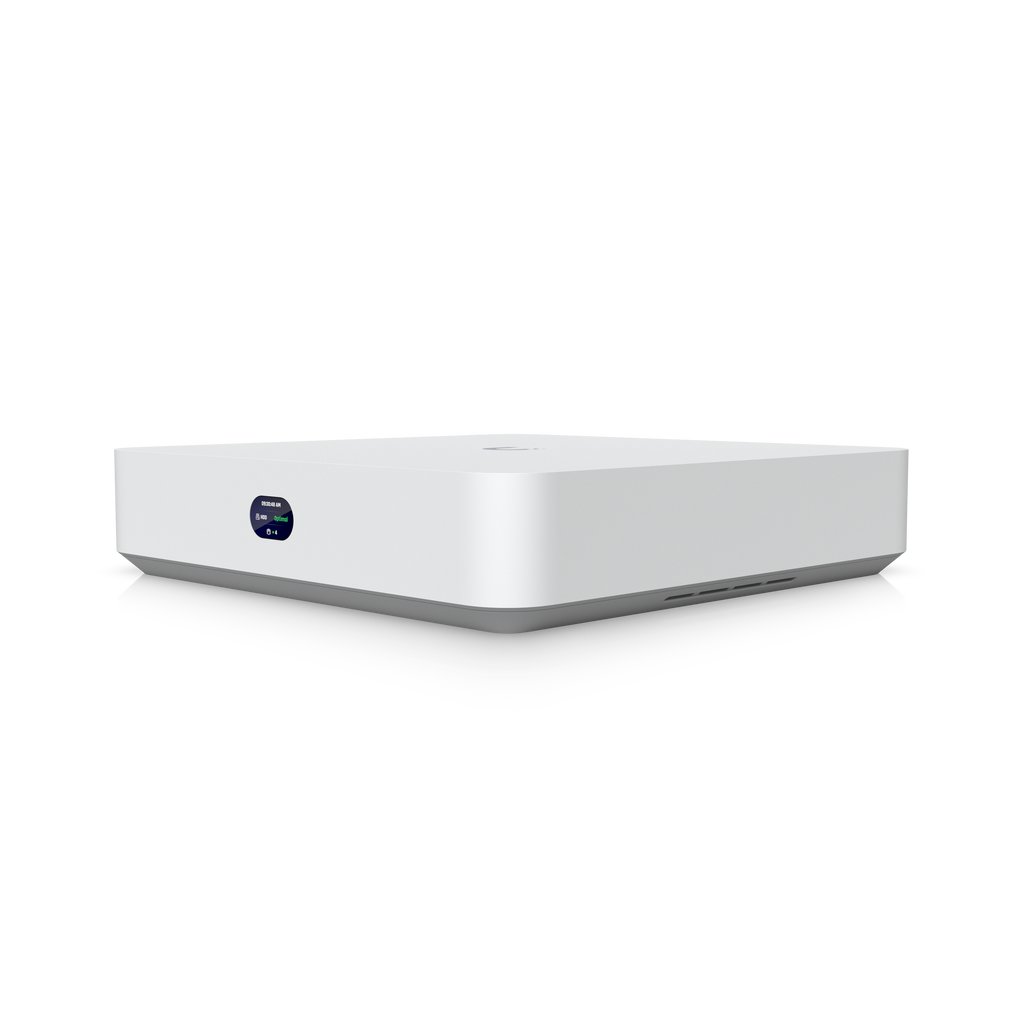

Network Video Recorder Instant
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W Excluding PoE output & HDD power consumption |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, Electrical Safety |
G5 Turret Ultra
| Dimensions | ⌀90 x 71.2 mm (⌀3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| Cable Connector Type | RJ45 |
| Cable Diameter | 5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Polycarbonate |
| Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
HDD
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
Downloads & documents
