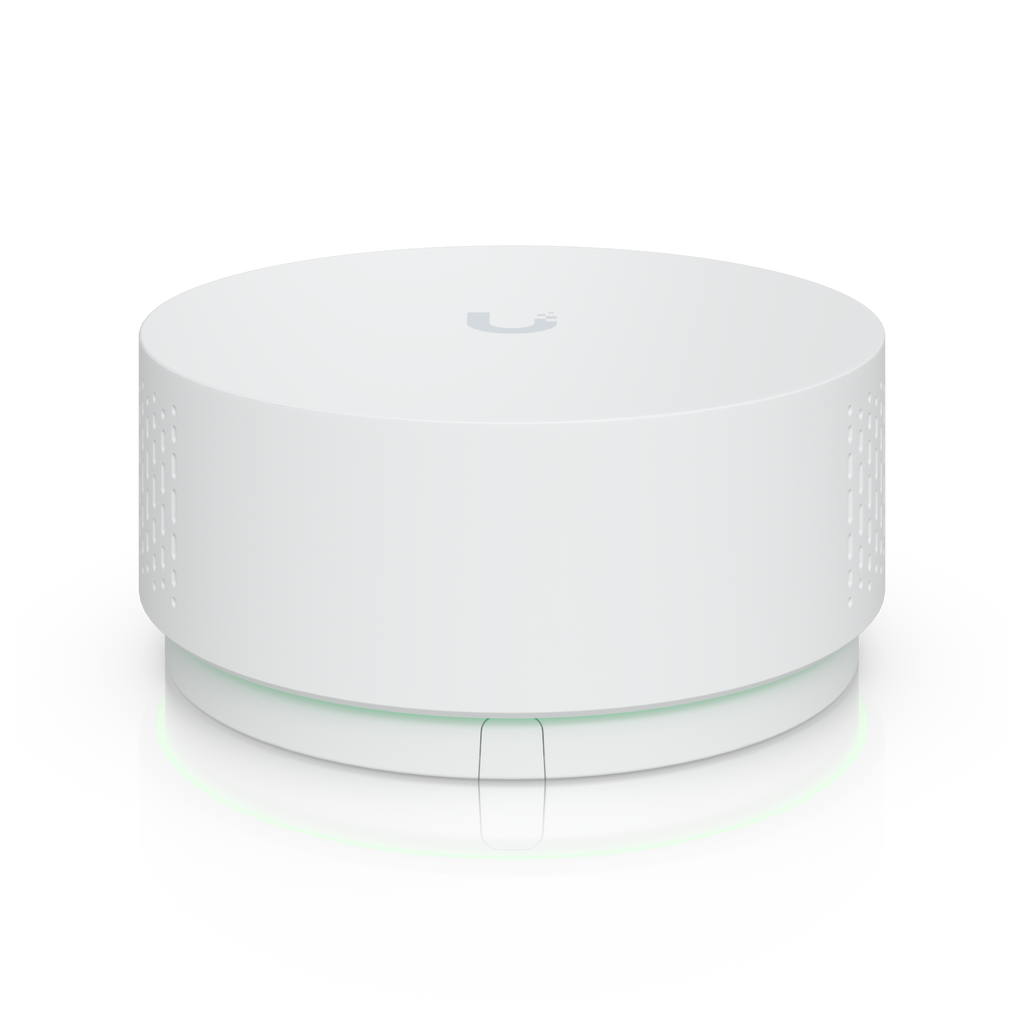

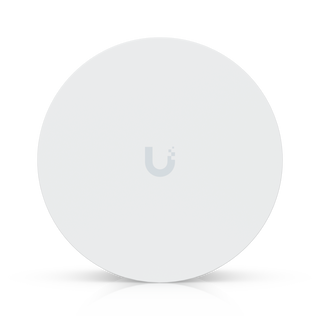

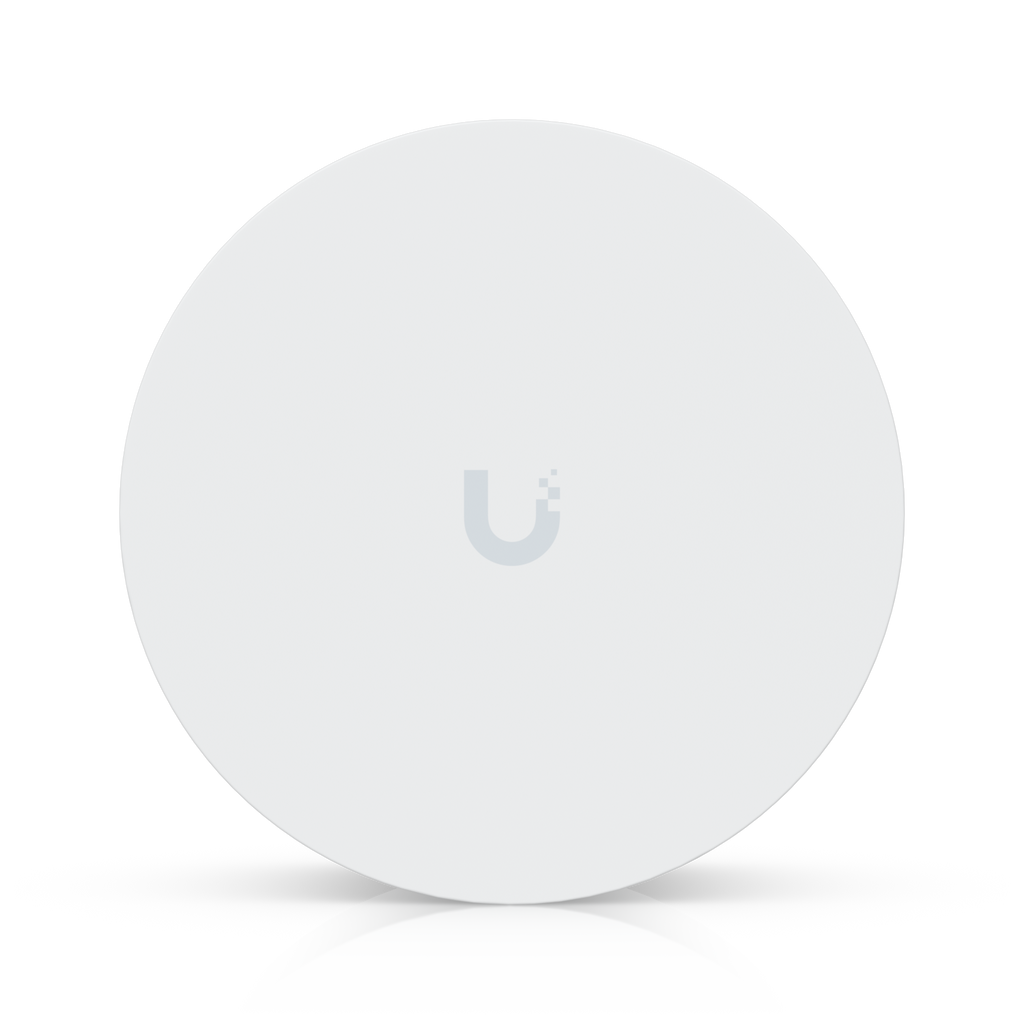

Vape Detection & Air Quality Sensor
UP-AirQuality
PoE-powered sensor delivering real-time vape detection, air quality monitoring, and instant alerts for schools, workplaces, hospitality, and commercial environments.SpecificationsOverview Dimensions ⌀93 x 40.5 mm (⌀3.7 x 1.6") Mounting Wall, ceiling...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
PoE-powered sensor delivering real-time vape detection, air quality monitoring, and instant alerts for schools, workplaces, hospitality, and commercial environments.
Specifications
Overview
| Dimensions | ⌀93 x 40.5 mm (⌀3.7 x 1.6") |
| Mounting | Wall, ceiling and table |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Ethernet |
| Air Quality | CO2, PM1, PM2.5, PM4, PM10, VOC, AQI, NOx, Vape |
| Sampling Rate | 1 Hz |
| Temperature Sensor | 0–40° C (32–104° F) |
| Humidity Sensor | 0–90% RH |
| Air Quality | 0–500 |
| CO2 Sensor | 0–40,000 ppm |
| PM1/PM2.5/PM4/PM10 | 0–1000 μg/m³ |
| VOC Index | 1–500 |
| Vape Index | 0–100 |
| NOx Index | 1–500 |
| PM1/PM2.5 | 0–100: ±(5 µg/m³ + 5% m.v.) 100–1000: ±10% m.v. |
| PM4/PM10 | 0–100: ±25 µg/m³ 100–1000: ±25% m.v. |
| VOC | ±5% |
| CO2 | 400–2000: ±(50 ppm + 3% of reading) 2000–5000: ±(50 ppm + 5% of reading) |
| Temperature | ±1° C (1.8° F) |
| Relative Humidity | ±8% RH |
Hardware
| Max. Power Consumption | 2.2W |
| Supported Voltage Range | 37–57V |
| Power Method | PoE |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Aluminum alloy, stainless steel |
| LEDs | (1) Status: White/Blue (1) Air quality indicator: Red/Green/Yellow/Violet |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | Recommended 10 to 35° C (50 to 95° F) Short-term exposure outside this range is supported. Accuracy and long-term reliability are not guaranteed. |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect: Version 7.1 or later. |
| Mobile App | UniFi Protect iOS™: Version 3.6.0 or later. Android™: Version 3.5.0 or later. |
