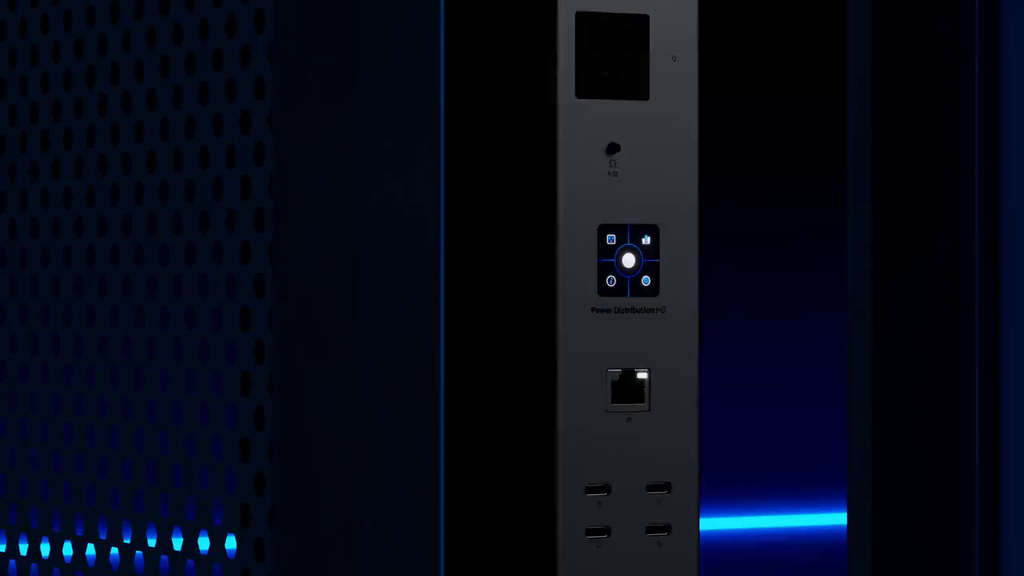

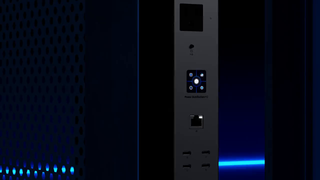

Power Distribution Hi-Density
USP-PDU-HD
Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.Key features (24) Remote-reset outlets (4) USB-C ports 3 m power cord with NEMA L5-30 plug 1.3" auto-rotating LCM touchscreen...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Power distribution unit designed to support large, rack-mounted UniFi hardware deployments.
Key features
(24) Remote-reset outlets
(4) USB-C ports
3 m power cord with NEMA L5-30 plug
1.3" auto-rotating LCM touchscreen

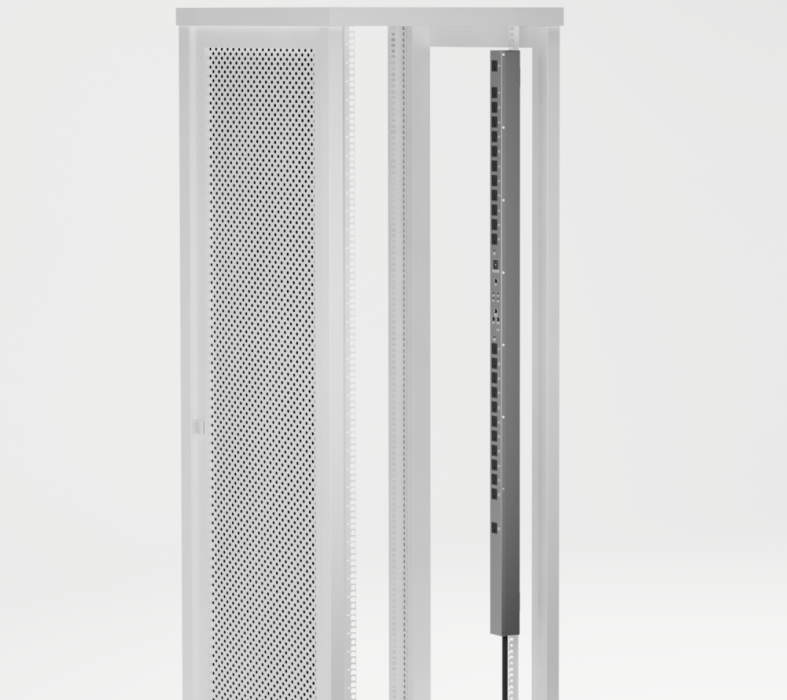

Compatible with 36U racks and taller
*Based on installation orientation.
Specifications
Mechanical
| Dimensions | 1485 x 55 x 56 mm (58.5 x 2.17 x 2.2") |
| Weight | 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
Hardware
| Management | Ethernet |
| Networking Interface | (1) 10/100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy |
| Power Method | 100–125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P) |
| Power Output | (24) Power control outlets: Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28): Rating output current: 12A at 125V AC (1500W) Max. output current: 15A at 125V AC (1875W) Total: Rating output current: 24A at 125V AC (3000W) Max. output current: 30A at 125V AC (3750W) (4) USB type C ports: 5VDC 2A per port, total 20W Max. power |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset (1) Circuit breaker |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC |
Software
| Mobile Apps | UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later |
| UniFi Network | Version 8.0.24 and later |
