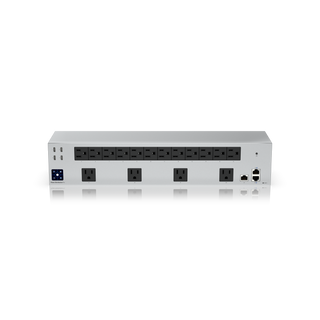

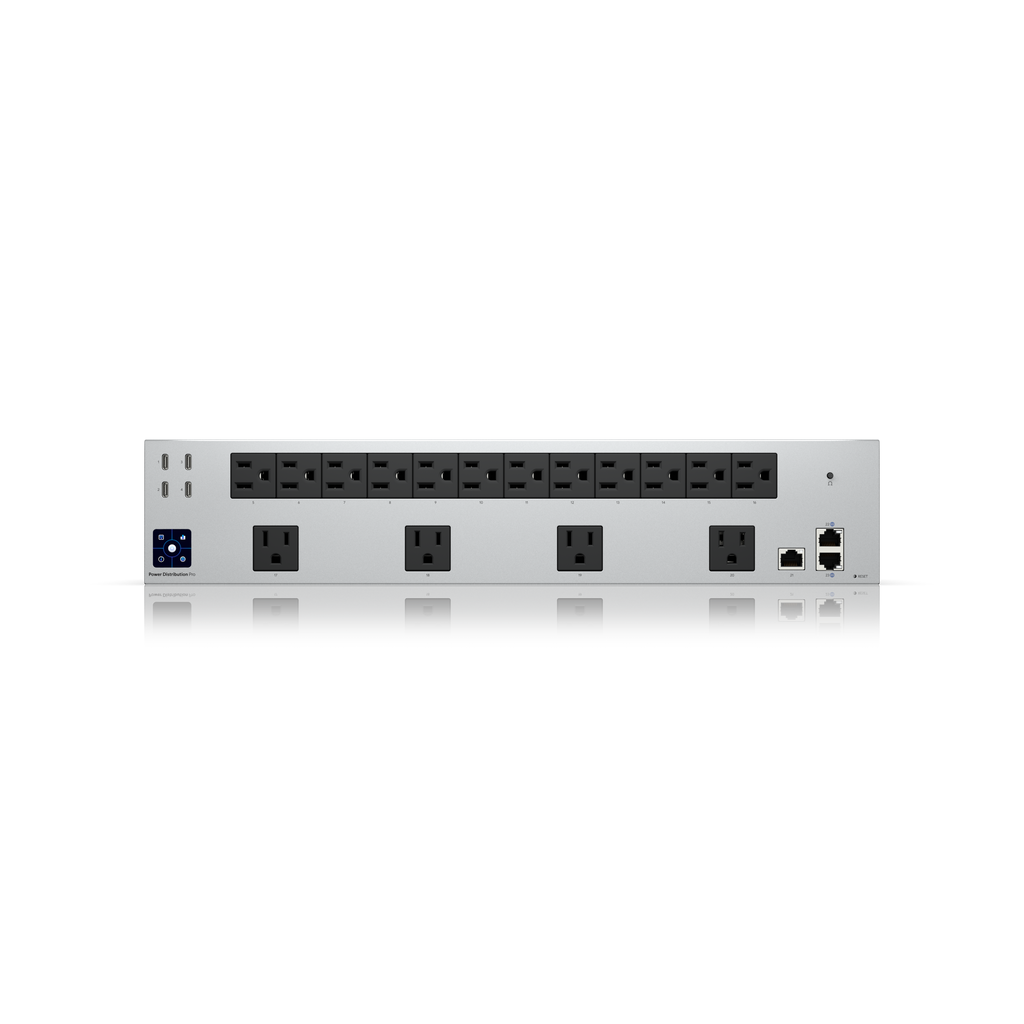

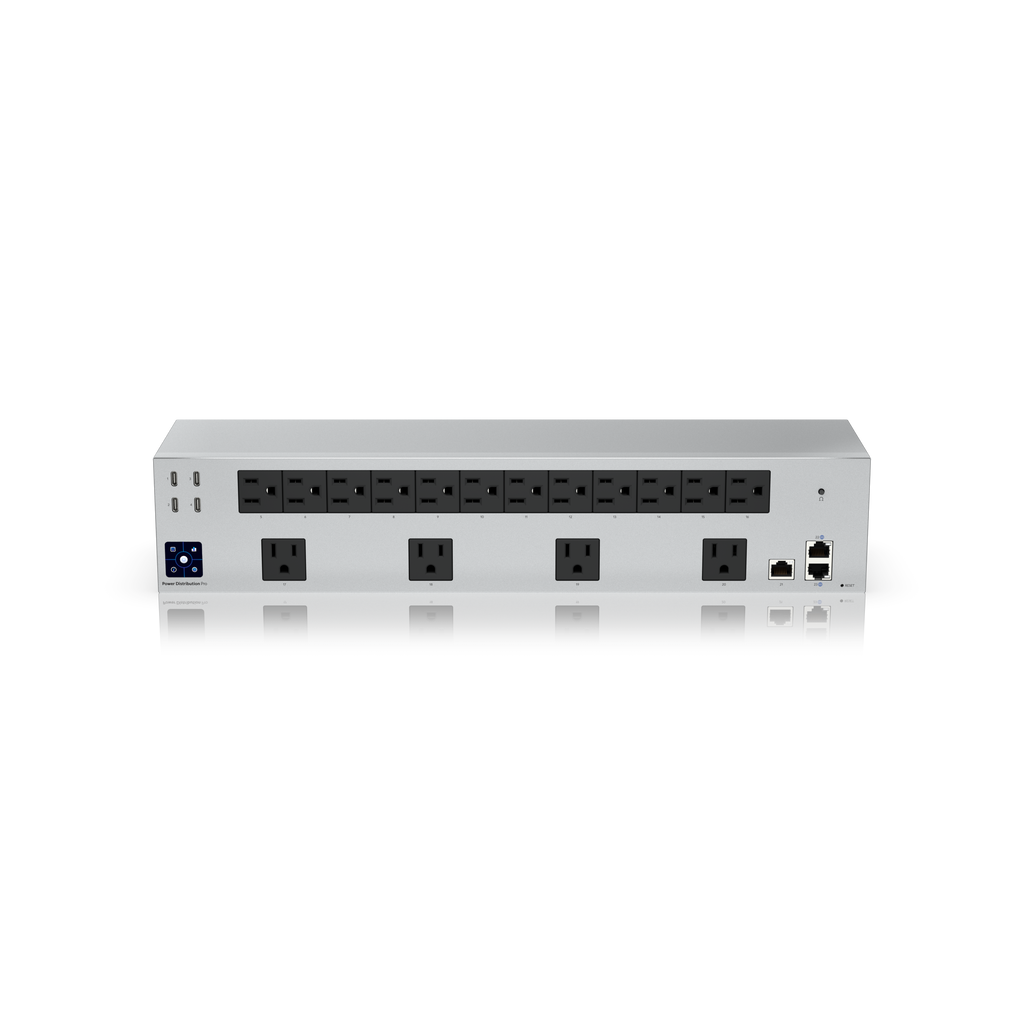

Power Distribution Pro
USP-PDU-Pro
Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.Note. Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.Key features (16) Remotely resettable outlets...

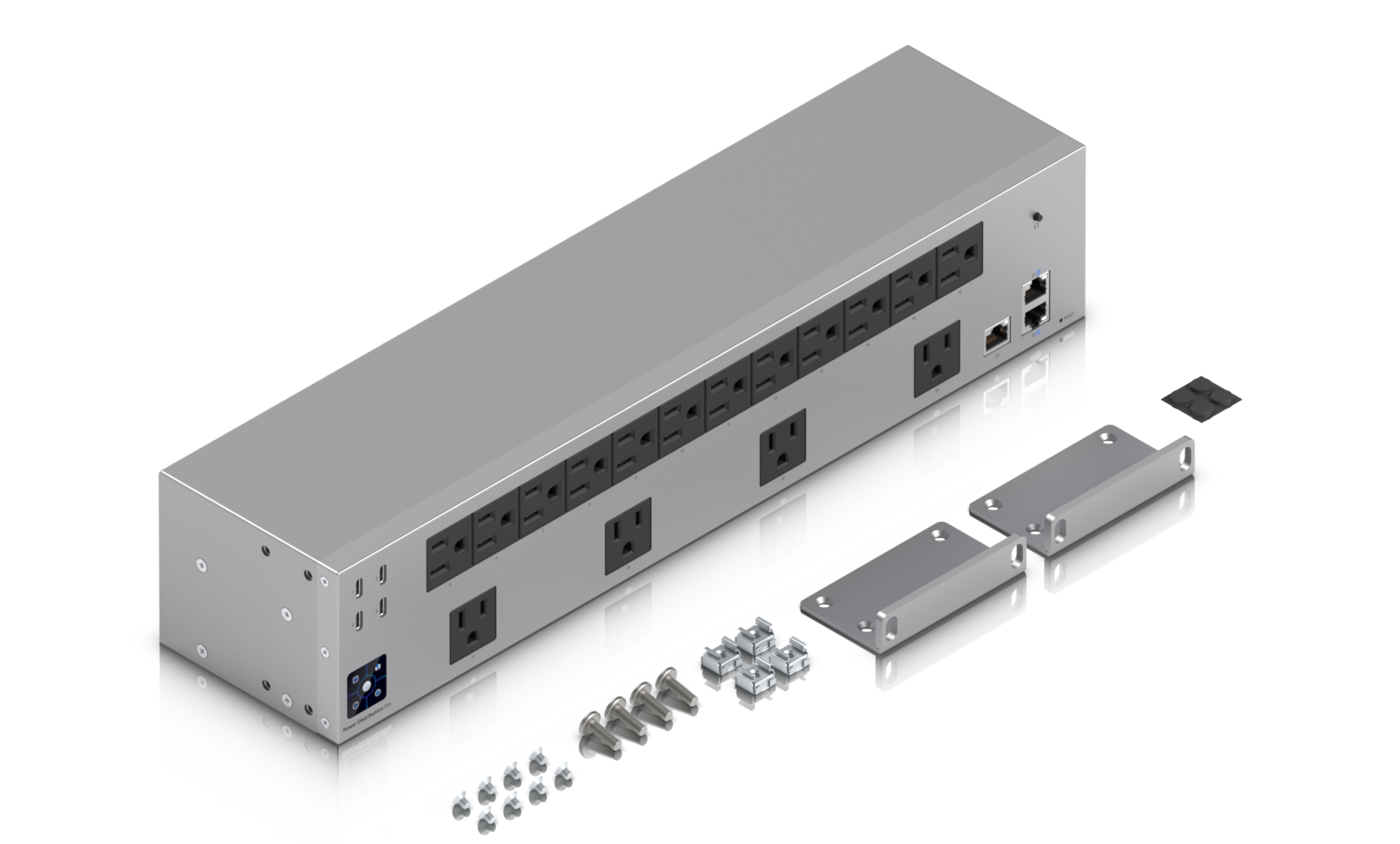

What’s in the box
Everything that ships with your Power Distribution Pro — straight from the manufacturer.
What it is, and who it is for.
Right-sized for a small team — punches well above its price, no rack or specialist needed.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.
Note. Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.
Key features
(16) Remotely resettable outlets
(4) USB-C ports
1.3" LCM touchscreen
Virtual Router Redundancy*
*Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.
Specifications
Mechanical
| Dimensions | 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2") |
| Weight | Without mount: 3.5 kg (7.6 lb) With mount: 3.7 kg (8.2 lb) |
| Enclosure Material | SGCC steel |
Hardware
| Management | Ethernet |
| Networking Interface | (1) 100 MbE RJ45 port (3) GbE RJ45 ports |
| Power Method | 125V AC, 15A Max., 50/60 Hz |
| Power Supply | AC/DC internal, 40W |
| Max. Power Consumption | 125V AC: 1,875W |
| Power Output | (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total) (4) USB-C ports, 2A Max. per port (4A/20W Max. total) |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset (1) Circuit breaker |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC |
Downloads & documents
