Redundant Power
USP-RPS
950W redundant power supply for rack-mounted UniFi devices.Key features 950W DC power availability (6) DC SmartPower ports 1.3" LCM touchscreenSpecificationsMechanical Dimensions 442.4 x 325.6 x 43.7 mm (17.4 x 12.8...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.

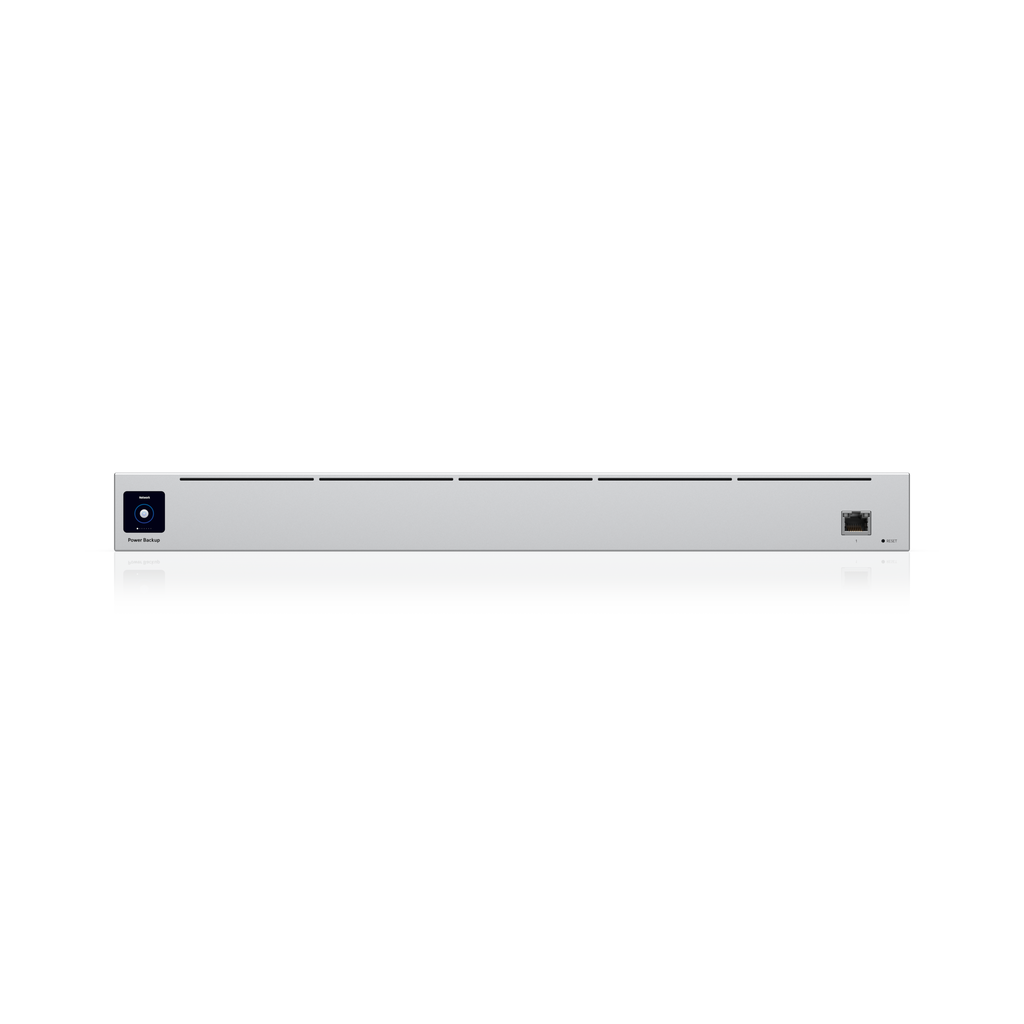

950W redundant power supply for rack-mounted UniFi devices.
Key features
950W DC power availability
(6) DC SmartPower ports
1.3" LCM touchscreen
Specifications
Mechanical
| Dimensions | 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mount brackets : 5.5 kg (12.1 lb) With mount brackets: 5.6 kg (12.3 lb) |
| Enclosure Material | SGCC steel |
Hardware
| Management | Ethernet |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | (1) Universal AC input, 100–240V AC |
| Power Supply | 54V DC output: AC/DC, internal, 645W 12V DC output: AC/DC, internal, 350W |
| Supported Voltage Range | 100–240V AC |
| Max. Power Consumption | 995W |
| Power Output | (6) RPS DC ports |
| Max. Power Output | 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W) |
| Max. Output Power per RPS Port | 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W) |
| ESD/EMP Protection | Air: ± 16kV, contact: ± 12kV |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset |
| System | Status |
| USP RPS | Activity |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
