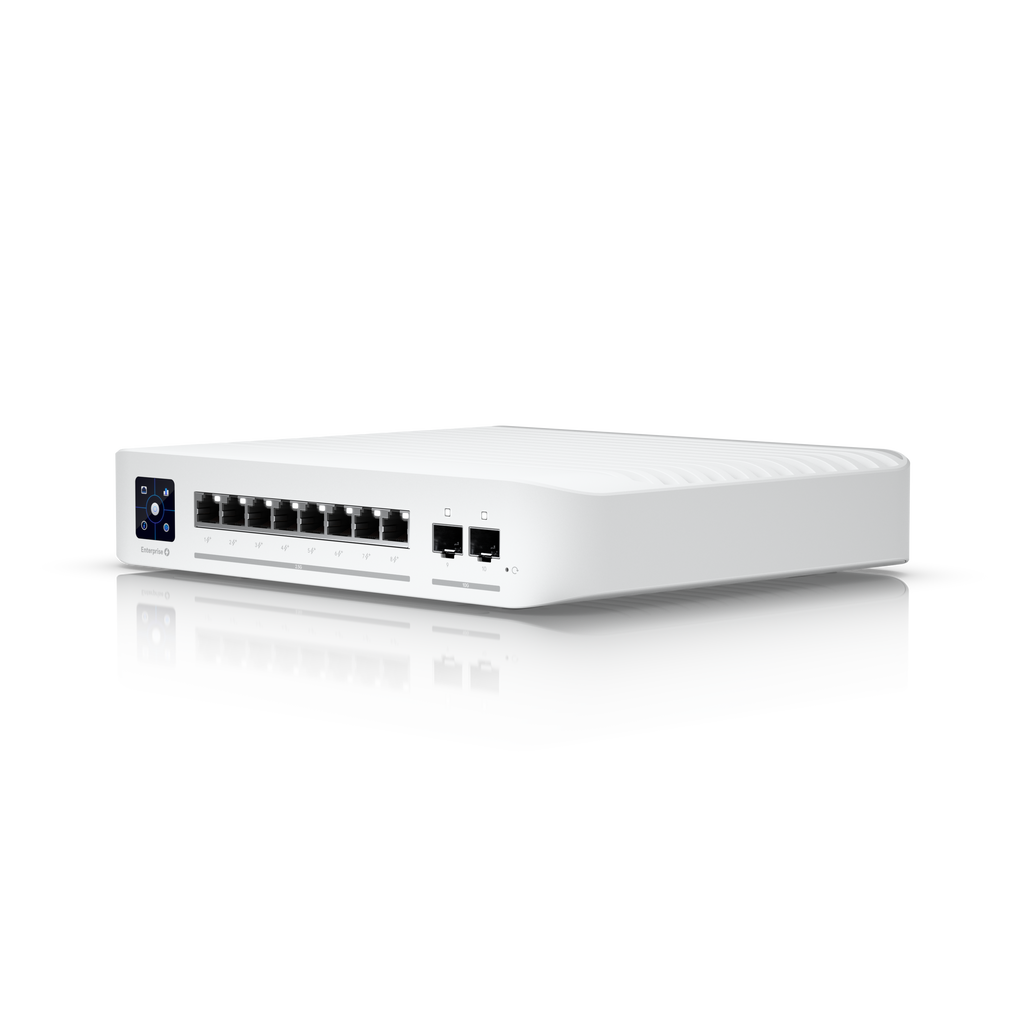

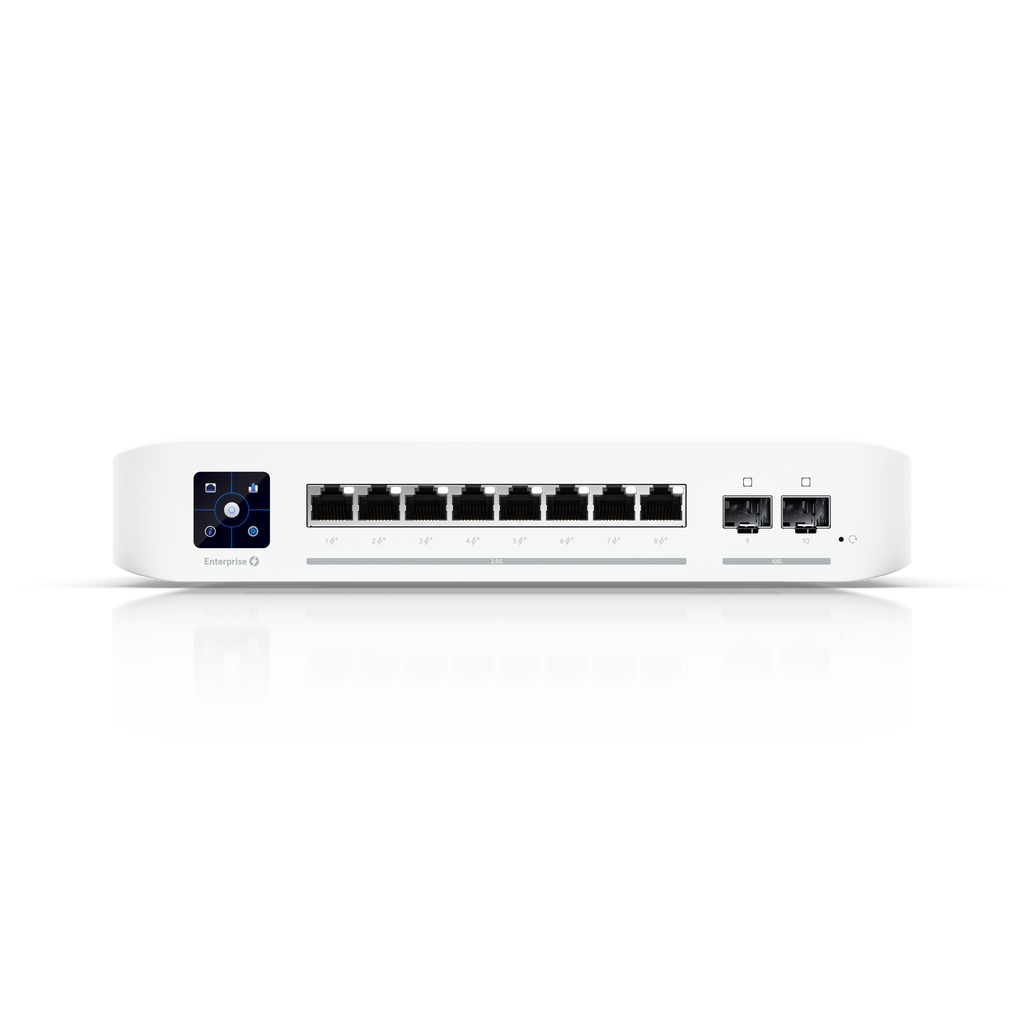

Switch Enterprise 8 PoE (Vintage)
USW-Enterprise-8-PoE
An 8-port, Layer 3 switch with 2.5 GbE PoE+ output.Note. These switches are not compatible with the PoE++ requirements of the new U7 and E7 Access Points. We recommend using...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
An 8-port, Layer 3 switch with 2.5 GbE PoE+ output.
Note. These switches are not compatible with the PoE++ requirements of the new U7 and E7 Access Points. We recommend using Enterprise Campus switches for such deployments.
Key features
(8) 2.5 GbE PoE+ ports
(2) 10G SFP+ ports
120W total PoE availability
Note. These switches are not compatible with the PoE++ requirements of the new U7 and E7 Access Points. We recommend using Enterprise Campus switches for such deployments.
Specifications
Overview
| Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
| 2.5 GbE RJ45 | 8 (All PoE+) (2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 120W |
| Form Factor | Compact desktop Do not physically stack |
Performance
| Switching Capacity | 80 Gbps |
| Total Non-Blocking Throughput | 40 Gbps |
| Forwarding Rate | 60 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 12 |
| MAC | 10 |
Hardware
| PoE+ | 8 |
| PoE+ | 32W |
| Max. Power Consumption | 30W (Excluding PoE Output) 150W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 150W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102.4 BTU/hr (Excluding PoE Output) |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06645-23-08356 |
Software
| UniFi Network | Version 6.3.51 and later |
Downloads & documents
Build around the Switch Enterprise 8 PoE (Vintage).
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from switches. Most buyers reading this page should buy the middle column.
Switch Pro Max 24
Switch Enterprise 8 PoE (Vintage)

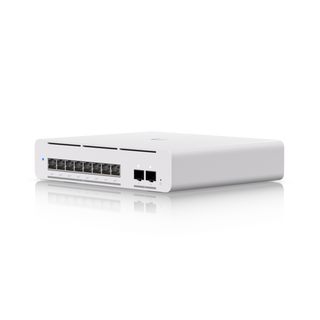

Switch Pro XG 8 PoEAsked before checkout
