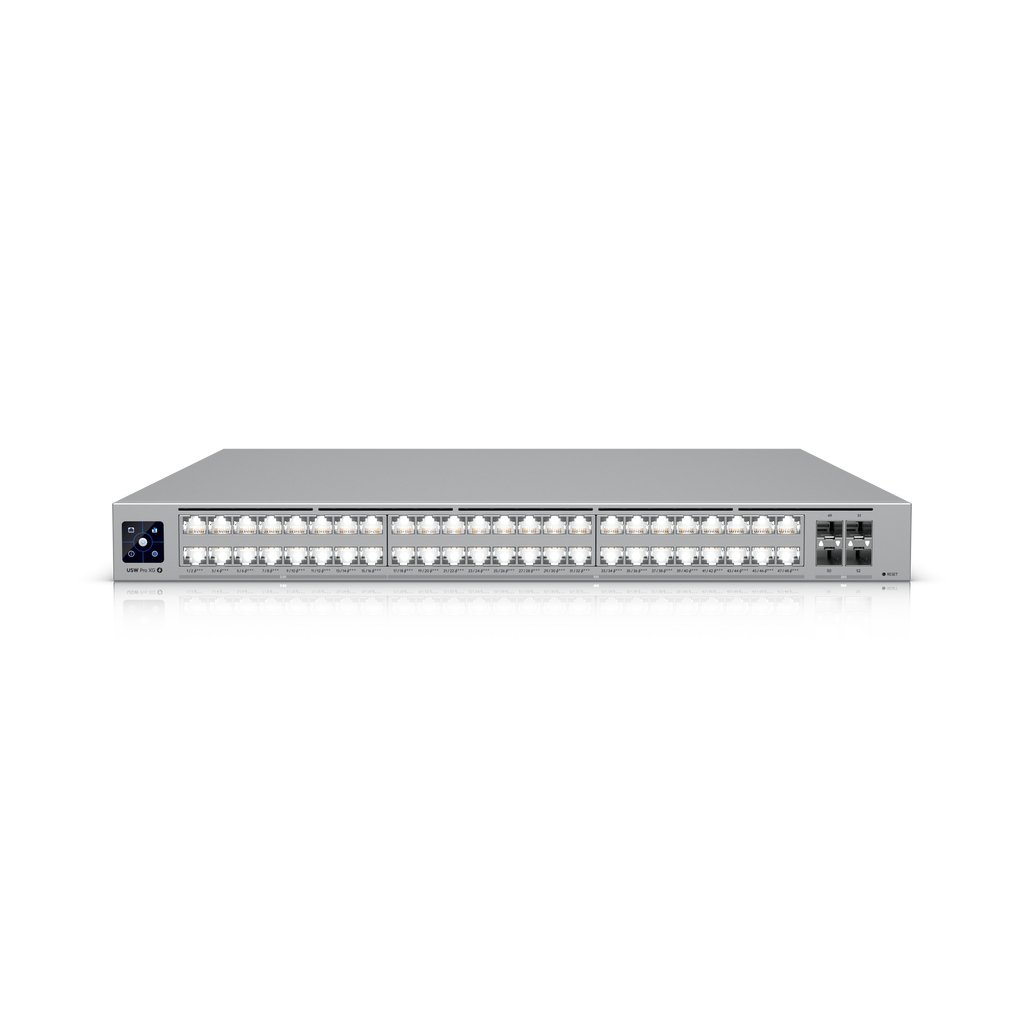

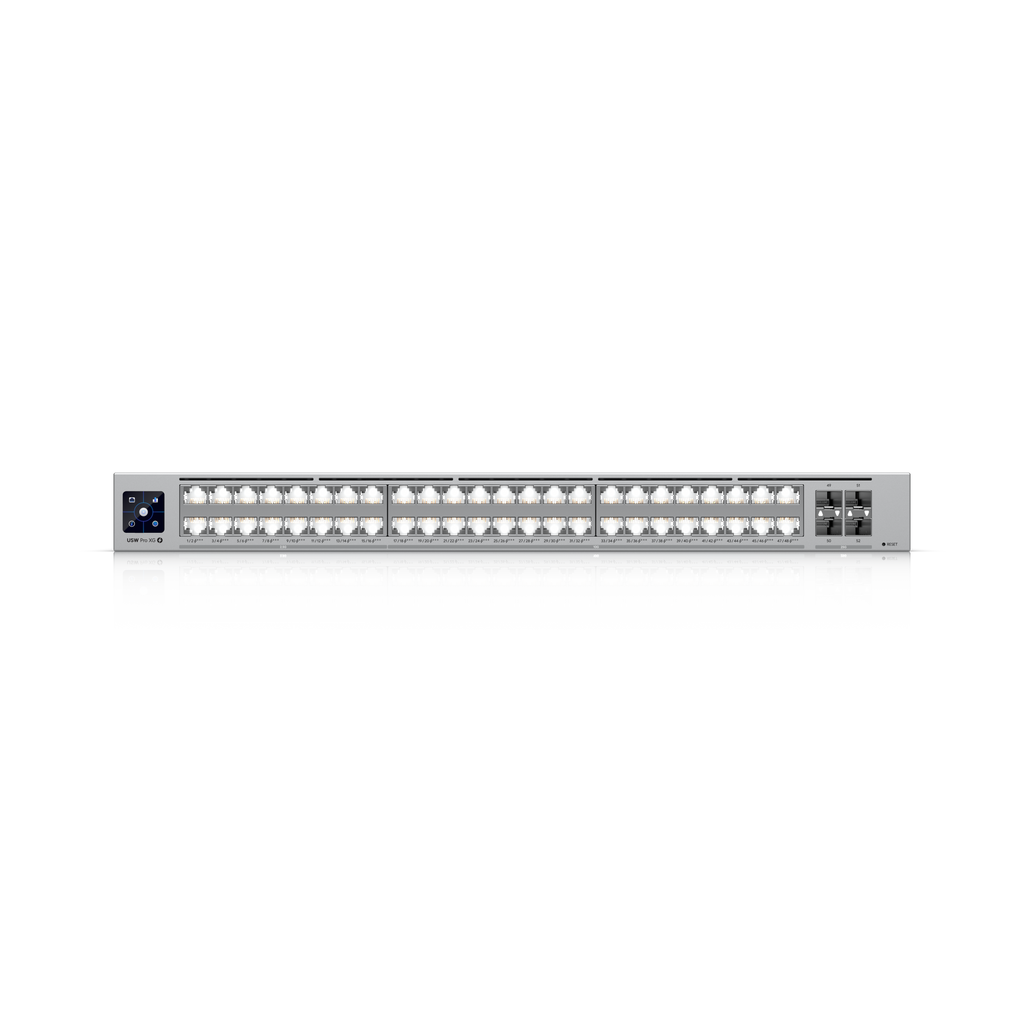

Switch Pro XG 48 PoE
USW-Pro-XG-48-PoE · US Version
Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.Key features Etherlighting™ ports that illuminate to indicate port location, speed/link,...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
Key features
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable)
(4) 25G SFP28 ports
DC power backup ready**
1,080W total PoE availability
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires UniFi RPS.
Specifications
Overview
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| 2.5 GbE RJ45 | 16 (All PoE+++) (2.5G/1G/100M/10M) 10/100M half-duplex not supported |
| 10 GbE RJ45 | 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 10/100M half-duplex not supported |
| 25G SFP28 | 4 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ 802.3bt Type 4, Class 8 |
| Total PoE Availability | 200-240V AC: 1080W 100-120V AC: 972W |
| Redundancy | DC Power Backup With UniFi RPS |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Hardware
| PoE+++ | 48 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 1,350W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 8.7 kg (19.2 lb) With mounting brackets: 8.8 kg (19.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04322-25-08356 |
Software
| UniFi Network | Version 9.1.120 and later |
