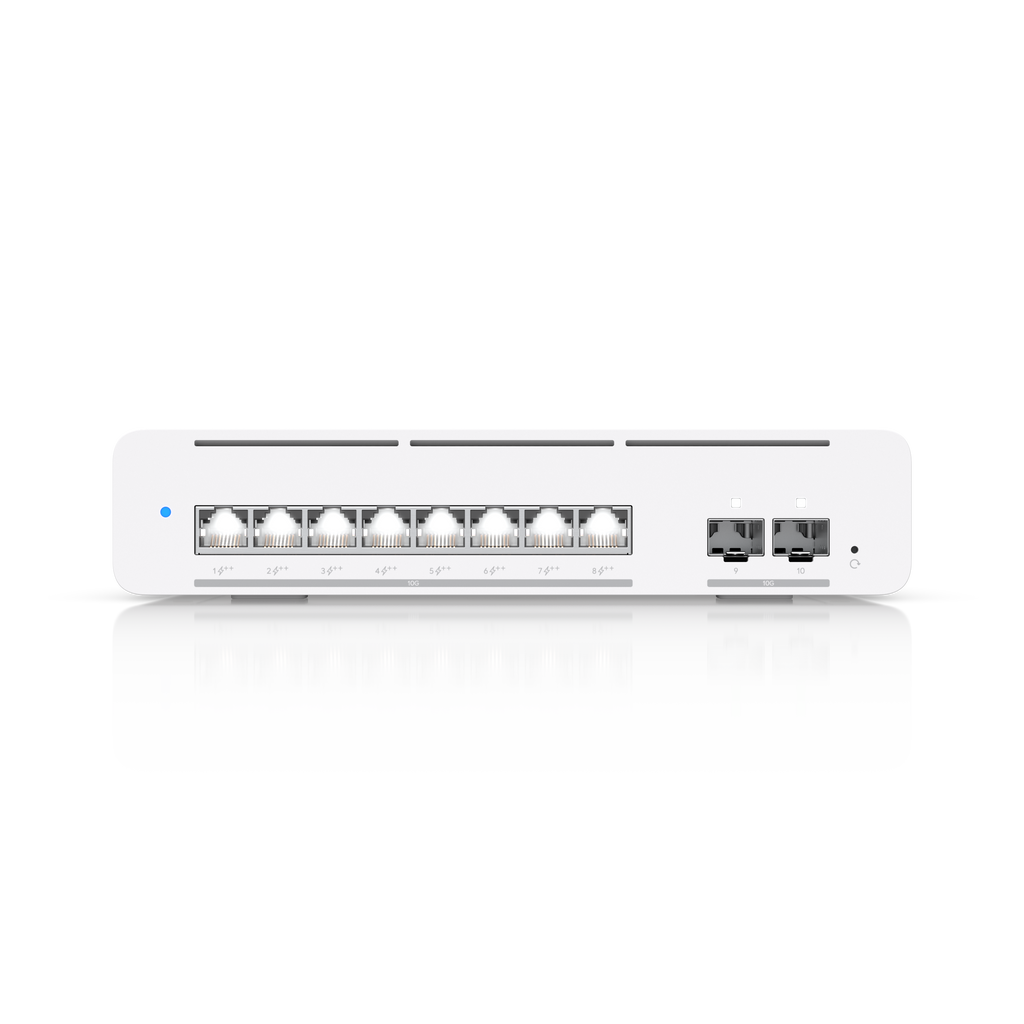

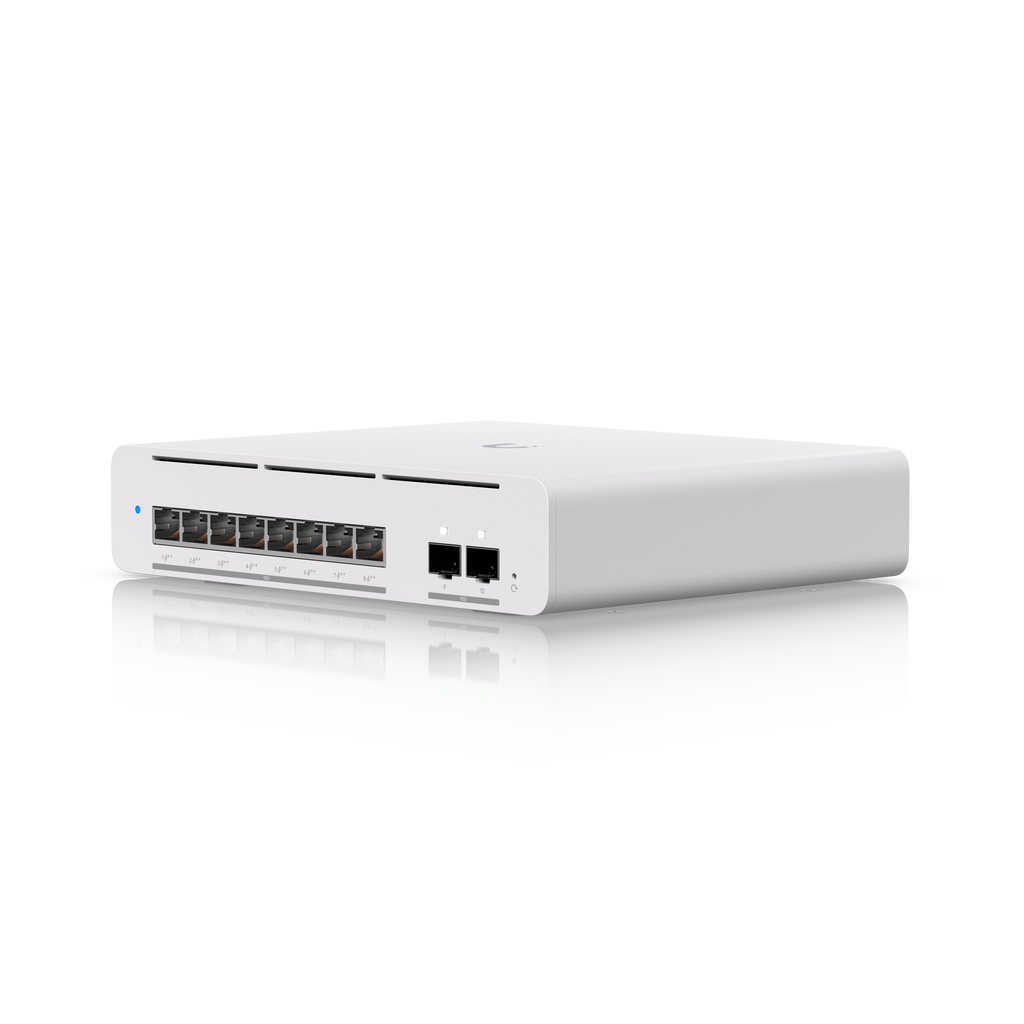

Switch Pro XG 8 PoE
USW-Pro-XG-8-PoE · US Version
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.Key features Etherlighting™ ports that illuminate to indicate port location, speed/link, and native...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
Key features
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 10 GbE PoE++ ports
(2) 10G SFP+ ports
155W total PoE availability
Versatile desktop and wall, mounting
*Pair with UniFi Enterprise Patch Cable for optimal brightness.
Specifications
Overview
| Dimensions | 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7") |
| 10 GbE RJ45 | 8 (All PoE++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 2 (10G/1G) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Form Factor | Compact desktop, wall |
Performance
| Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| PoE++ | 8 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| Max. Power Consumption | 61W (Excluding PoE output) 210W (Including PoE output) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–57V DC |
| Management | Ethernet |
| Weight | 1.6 kg (3.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04322-25-08356 |
Software
| UniFi Network | Version 9.0.114 and later |
Downloads & documents
