UVC-AI-Theta-Hub
Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.Note. License plate recognition supported with Long-Distance and Wide-Angle lenses.Key features (1) video...

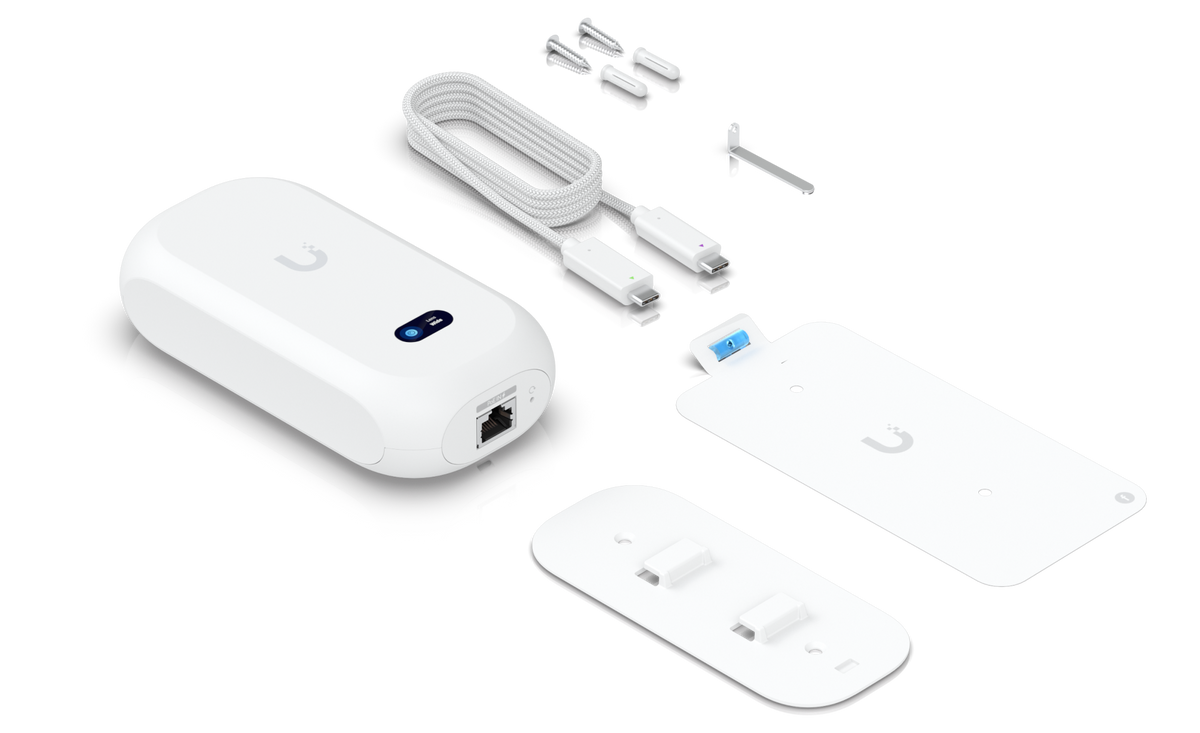

Or build it into a bundle — save up to 6% ↓What’s in the box
Everything that ships with your AI Theta Hub — straight from the manufacturer.
What it is, and who it is for.
Built for the home — serious networking that disappears into the walls, no IT department required.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.
Note. License plate recognition supported with Long-Distance and Wide-Angle lenses.
Key features
(1) video and (1) audio port for connecting a lens and audio module
Supports AI Theta Standard and Professional Lenses, with (1) included cable for connecting a lens
Advanced AI: Detect people, read license plates, and more*
0.96" color display for device status and configuration
Connect and power using PoE
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Specifications
Overview
| Dimensions | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) |
| Mounting | Wall, ceiling mount (Included) |
Performance
| Networking Interface | GbE RJ45 port Theta audio port Theta lens port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
Hardware
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Enclosure Material | Aluminum alloy |
| Mounting Material | Aluminum alloy |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) |
| Power Method | PoE |
| Supported Voltage Range | 37—57V DC |
| Max. Power Consumption | 12.5W |
| Power Output | 5V DC, 1A per port |
| LCM Display | 0.96" display |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
