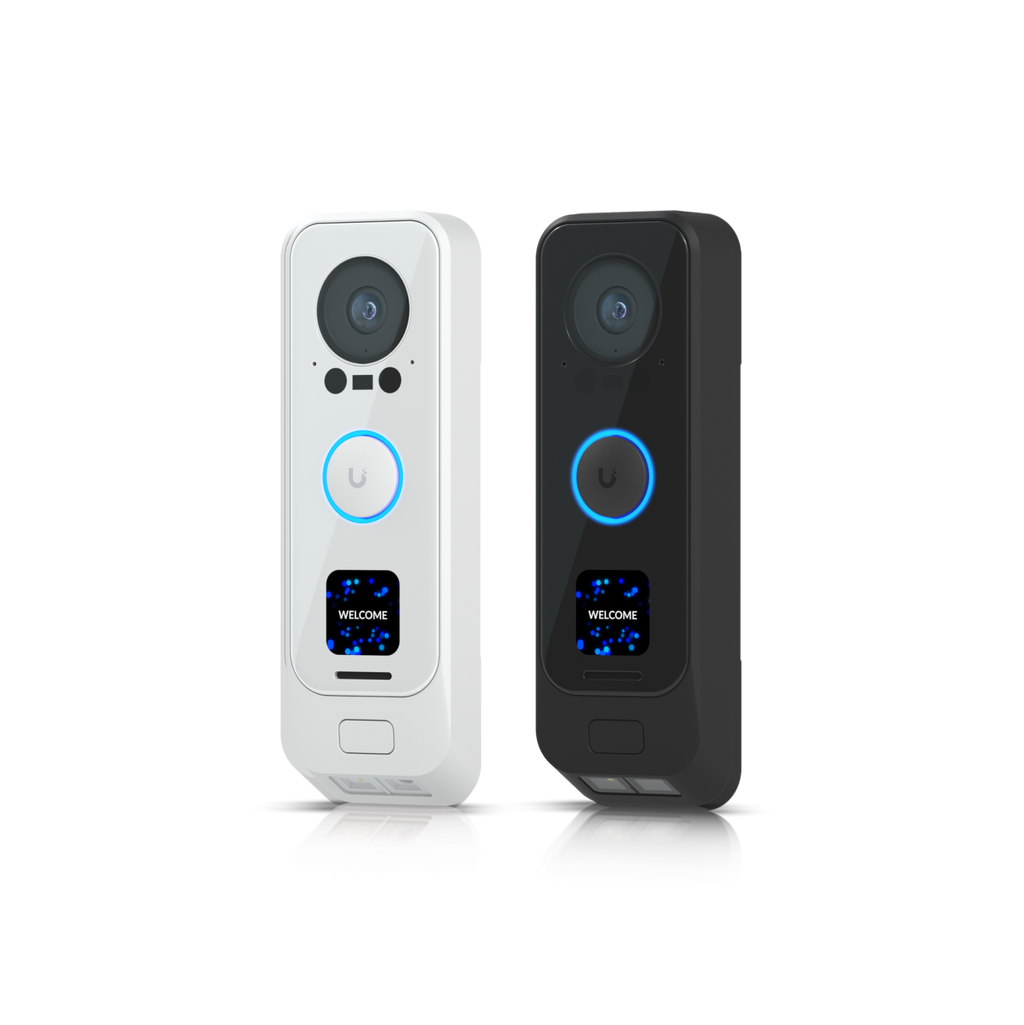

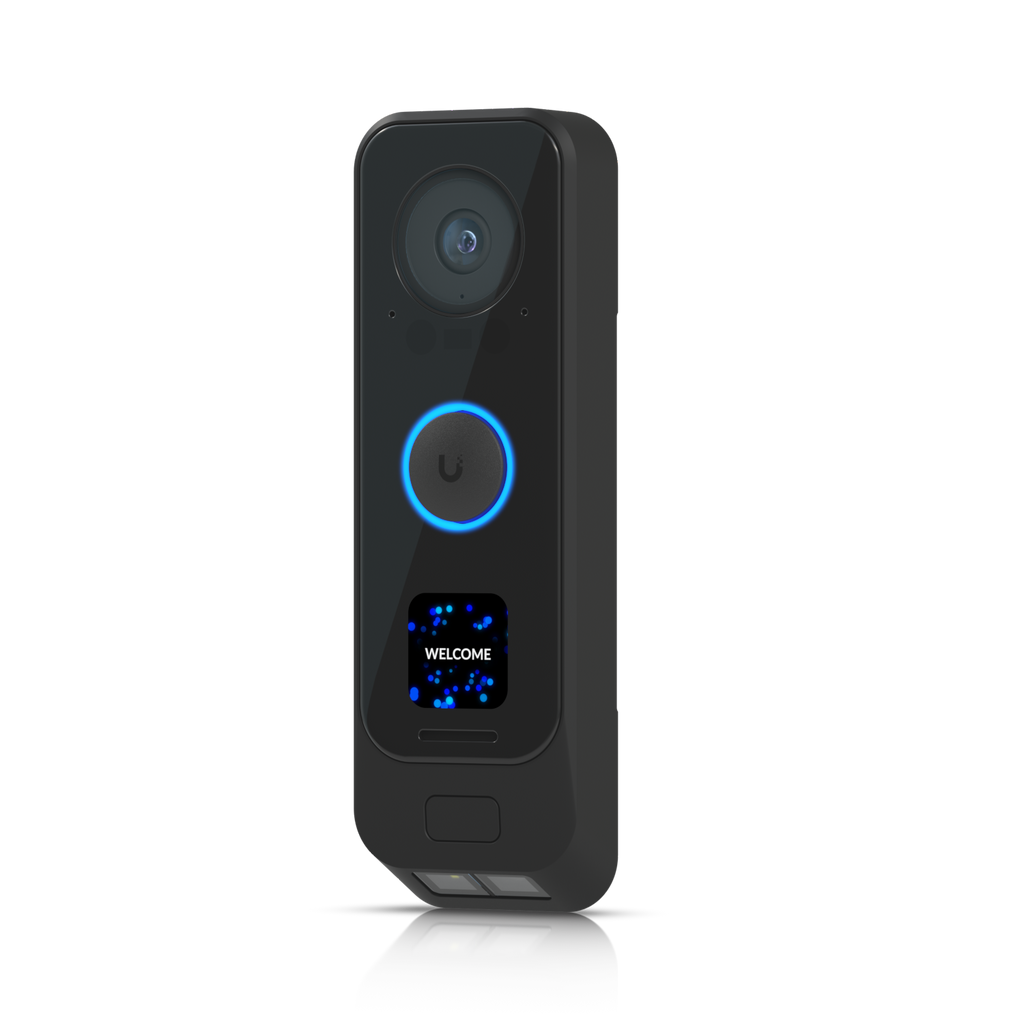

G4 Doorbell Pro
UVC-G4 Doorbell Pro-US · Black / US Version
Premium UniFi doorbell with an enhanced package detection camera and integrated display.Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.Key features Improved HDR and low-light performance...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Premium UniFi doorbell with an enhanced package detection camera and integrated display.
Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
Key features
Improved HDR and low-light performance
Programmable welcome display and secondary package-detection camera
6 m (20 ft) IR night vision
AI event detections
Wirelessly connected with UniFi WiFi Auto-Link*
Integrated 2-way audio
Weather-resistant (outdoor covered)
*Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
Specifications
Overview
| Dimensions | 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1") |
| IR Night Vision | 6 m (20 ft) |
| Resolution | FHD |
| Field of View | Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Audio | Two-way audio |
| Weatherproofing | IPX4 |
| Mounting | Flat wall, 20° wedge (Included) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (With UACC-Adapter-DBPOE) |
| Max. Frame Rate | 30 FPS |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 10W |
| Power Method | 16–24V AC, 1.25A Max., 50/60 Hz USB-C power cable, 5V DC, 2A |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | Device: 253 g (8.9 oz) With flat wall mount: 286 g (10.1 oz) With 20° wedge mount: 325 g (11.5 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Flat wall mount: aluminum alloy 20° wedge mount: polycarbonate |
| Button | (1) Ring button (1) Factory reset |
| Compatible Chimes | Mechanical Broan-NuTone: LA126WH, LA11WH, LA39WH Heath Zenith: SL-2735 Craftmade: CTPW-RG Newhouse Hardware: CHM3D Digital Broan-NuTone: LA600WH IQ AMERICA: DW-2850, DW-2840 |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Input Rating (5, 6) | 230V, 50/60Hz |
| Input Rating (1, 4) | 16V AC, 15VA |
| Ambient Operating Temperature | -5 to 35° C (23 to 95° F) |
Downloads & documents
Build around the G4 Doorbell Pro.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cameras & nvrs. Most buyers reading this page should buy the middle column.
Camera G6 Bullet
G4 Doorbell Pro

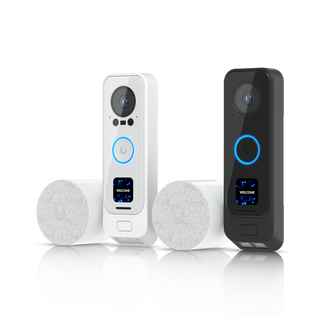

G4 Doorbell Pro PoE KitAsked before checkout
