Camera G4 Instant
UVC-G4-INS-US · White
Compact, wide-angle, WiFi-connected camera with two-way audio.Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.Key features 5MP (2K) resolution Ultra-wide viewing angle (102.4°) 6 m (20...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.

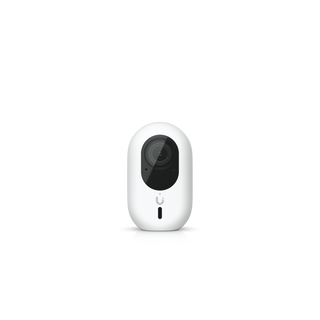

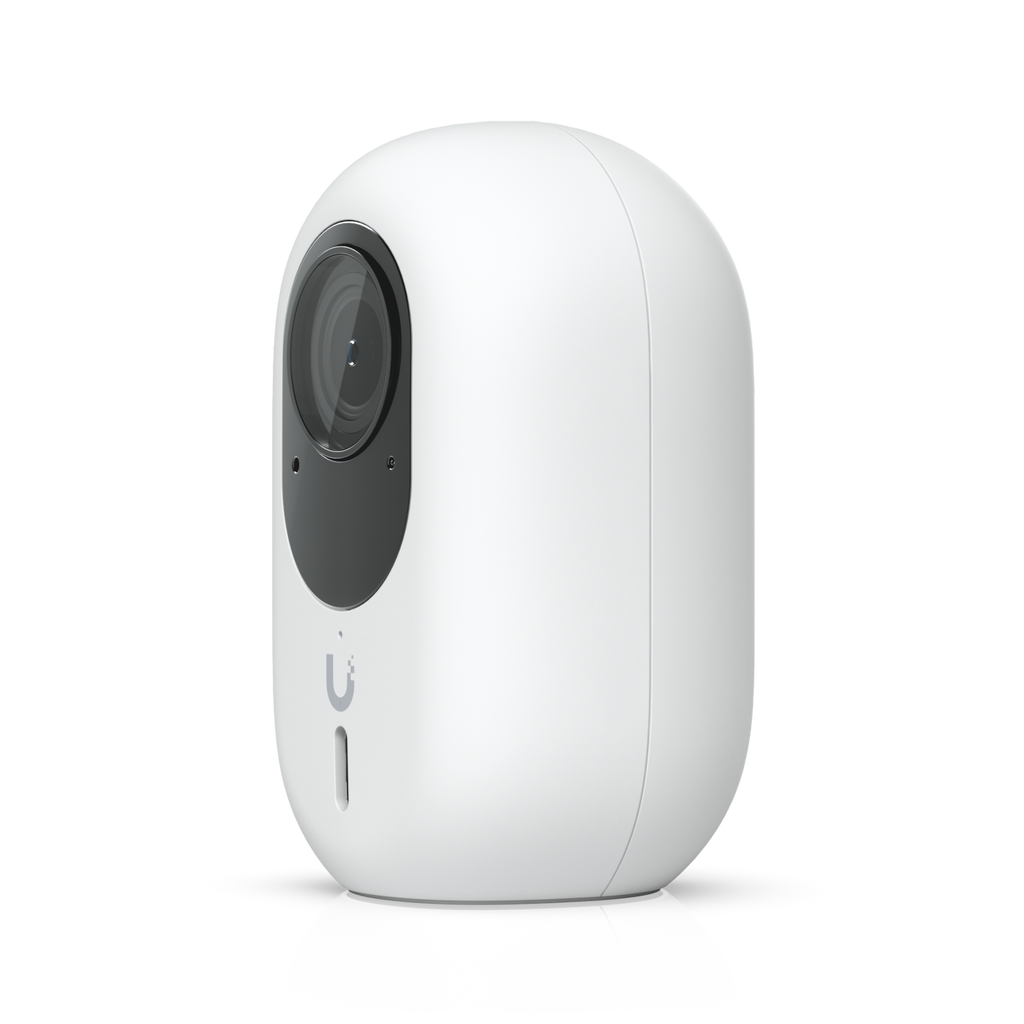

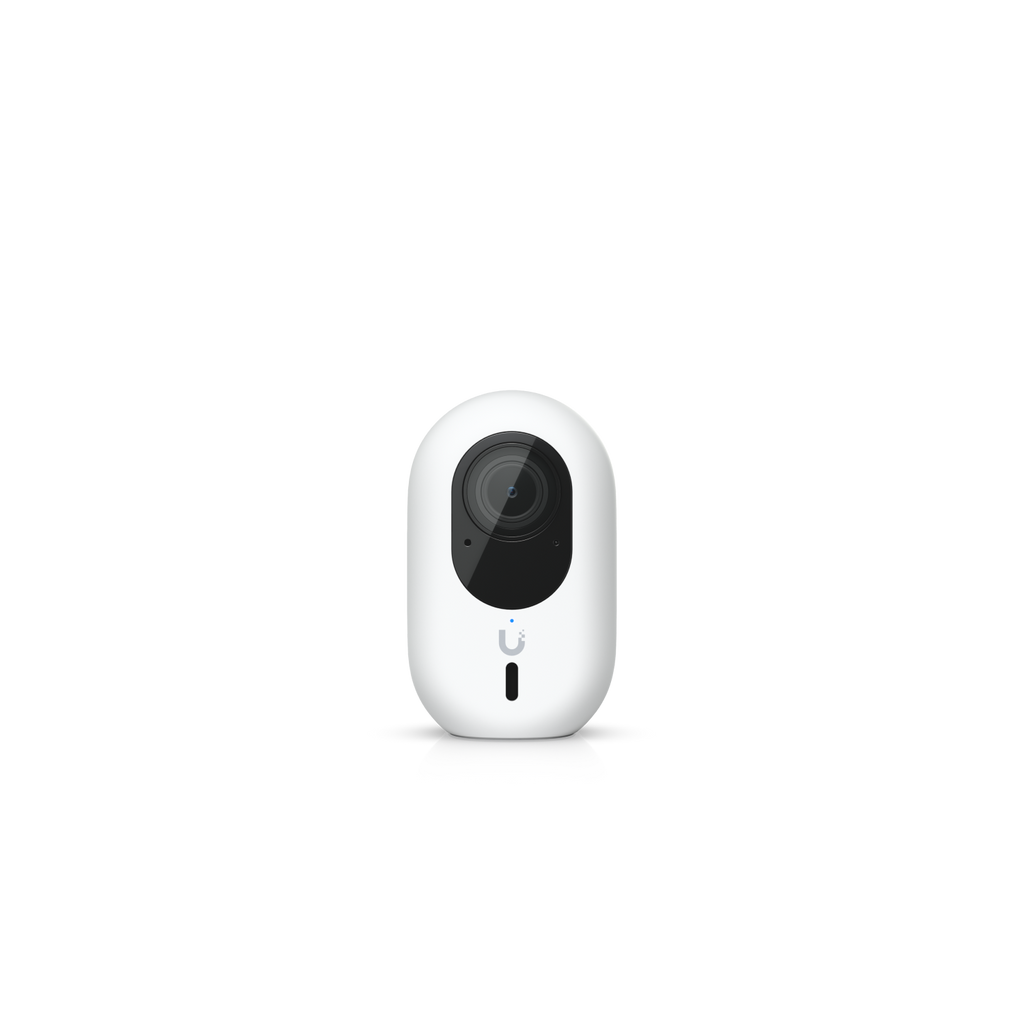

Compact, wide-angle, WiFi-connected camera with two-way audio.
Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
Key features
5MP (2K) resolution
Ultra-wide viewing angle (102.4°)
6 m (20 ft) IR night vision
Wirelessly connected with UniFi WiFi Auto-Link*
Versatile table or wall mounting
AI event detections
Integrated 2-way audio
Weatherproof
*Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
Note. EU version comes with EU power plug only.
Specifications
Overview
| Dimensions | 81.6 x 50 x 47.2 mm (3.2 x 2 x 1.9") |
| IR Night Vision | 6 m (20 ft) |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 |
| Tamper Resistance | IK04 |
| Mounting | Wall mount accessory (Included) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 802.11 a/b/g/n/ac WiFi Bluetooth |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 5MP CMOS |
| Lens | Fixed focal length EFL 2.8 mm, ƒ/1.6 |
| Night Mode | Built-in IR LED illumination and IR cut lter |
Hardware
| Max. Power Consumption | 6W |
| Supported Voltage Range | 5V DC, 2A |
| Power Method | 5V, 2A USB power adapter (Included) Instant PoE to USB adapter (Optional) |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | Without mount: 125 g (4.4 oz) With mount: 163 g (5.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| Cable Connector Type | USB Type-C to USB Type-C |
| Cable Diameter | 3 mm (0.12") |
| Cable Length | 2 m (6.6 ft) |
| Jacket Material | Thermoplastic elastomer |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 10585-22-08356 |
Downloads & documents
Build around the Camera G4 Instant.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from cameras & nvrs. Most buyers reading this page should buy the middle column.
G4 Doorbell Pro PoE Gang Box Mount
Camera G4 Instant
Camera G5 BulletAsked before checkout
The questions our support inbox actually gets.
Does it ship the same day?+
Orders placed before 2 PM ET on a business day leave the same day from our bench in Altamonte Springs, FL. Tracking is emailed the moment the label prints.
What if it's the wrong size for my building?+
Return it. 30 days, no restocking fee, refund to the original payment method. Better: send us your floor plan first and we'll size the kit for free — half of all returns are sizing problems.
Who handles the warranty?+
We do. Everything carries the manufacturer's warranty and we run the claim for you — one email to us instead of a ticket queue overseas.
How does the bundle discount work?+
Add items to a kit in the bundle builder: 2+ items saves 5%, 3+ saves 8%, 4+ saves 12%, and 5+ saves 15% off the whole kit.
