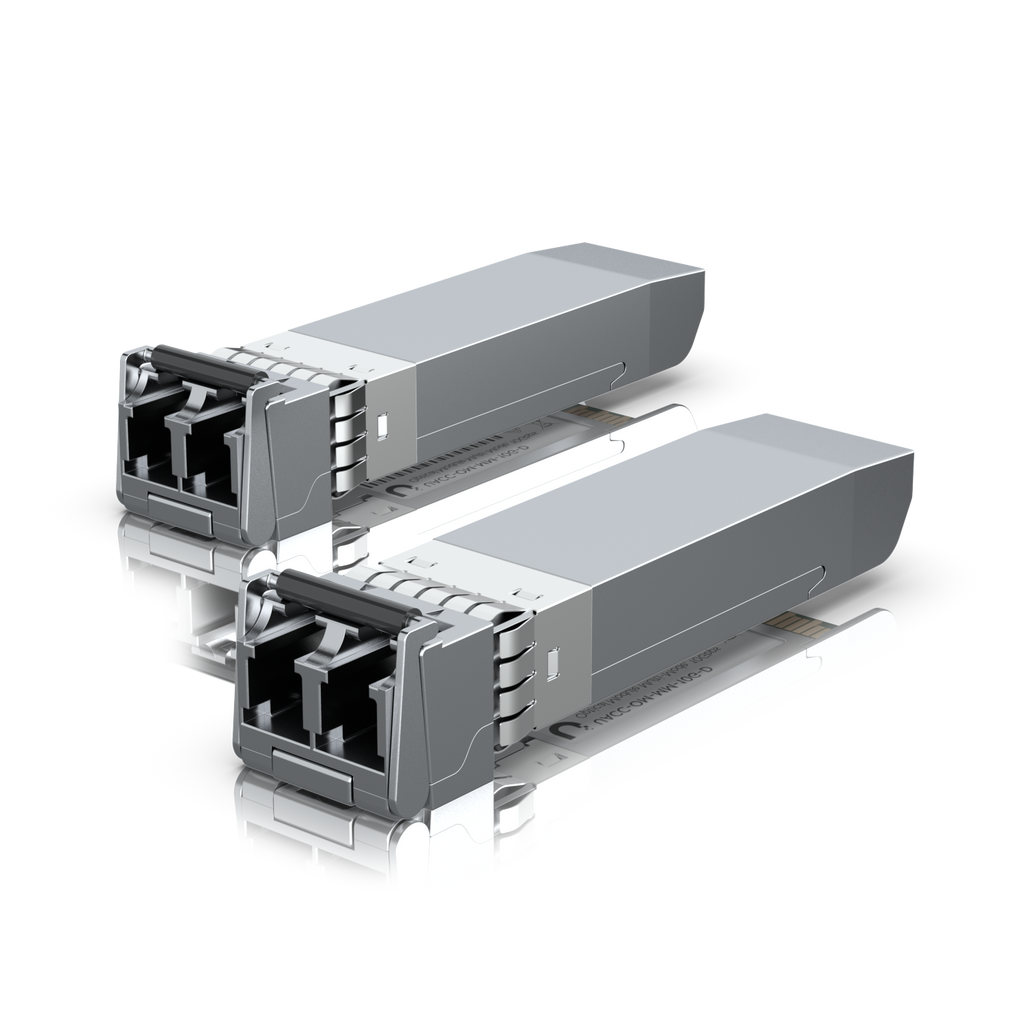

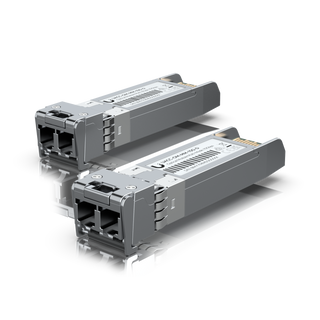

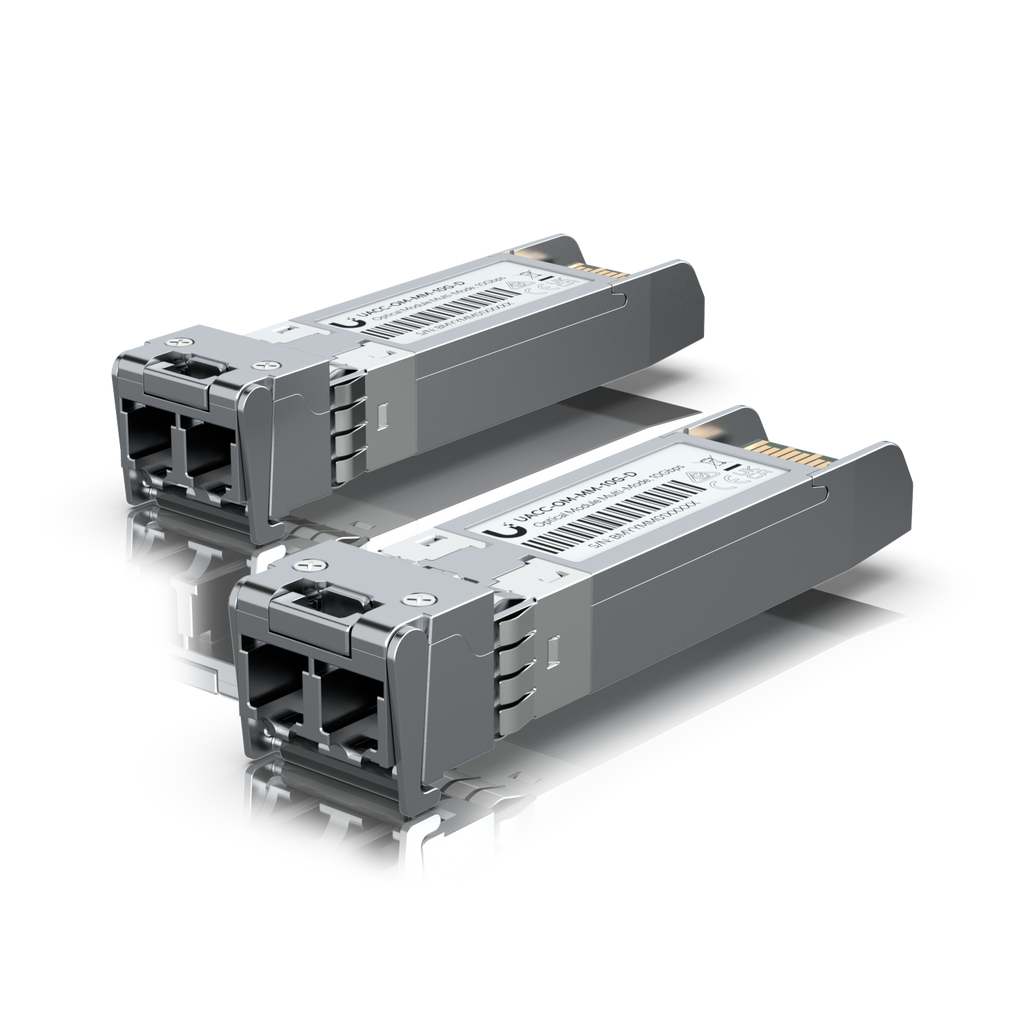

10G Multi-Mode Optical Module
UACC-OM-MM-10G-D · Single Unit
SFP+ transceiver that supports 10G connections up to 400 m using multi-mode fiber with a duplex LC UPC connector.Key features Max data rate: 10 Gbps Compatible with SFP+ and SFP...
Or build it into a bundle — save up to 6% ↓What it is, and who it is for.
Ready for the floor — the gear that runs a real business all day, every day.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
SFP+ transceiver that supports 10G connections up to 400 m using multi-mode fiber with a duplex LC UPC connector.
Key features
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 400 m*
*Up to 400 m with OM4 and 300 m with OM3. Fiber cable is not included.
Specifications
Overview
| Form Factor | SFP+ |
| Connector | Duplex LC UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 1 / 10 Gbps |
| Supported Cable Distance | OM4 - 400 m (1312 ft) OM3 - 300 m (984 ft) |
| Max. Power Consumption | 0.8 W |
| Pack Options | Single Unit 2-Pack 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
