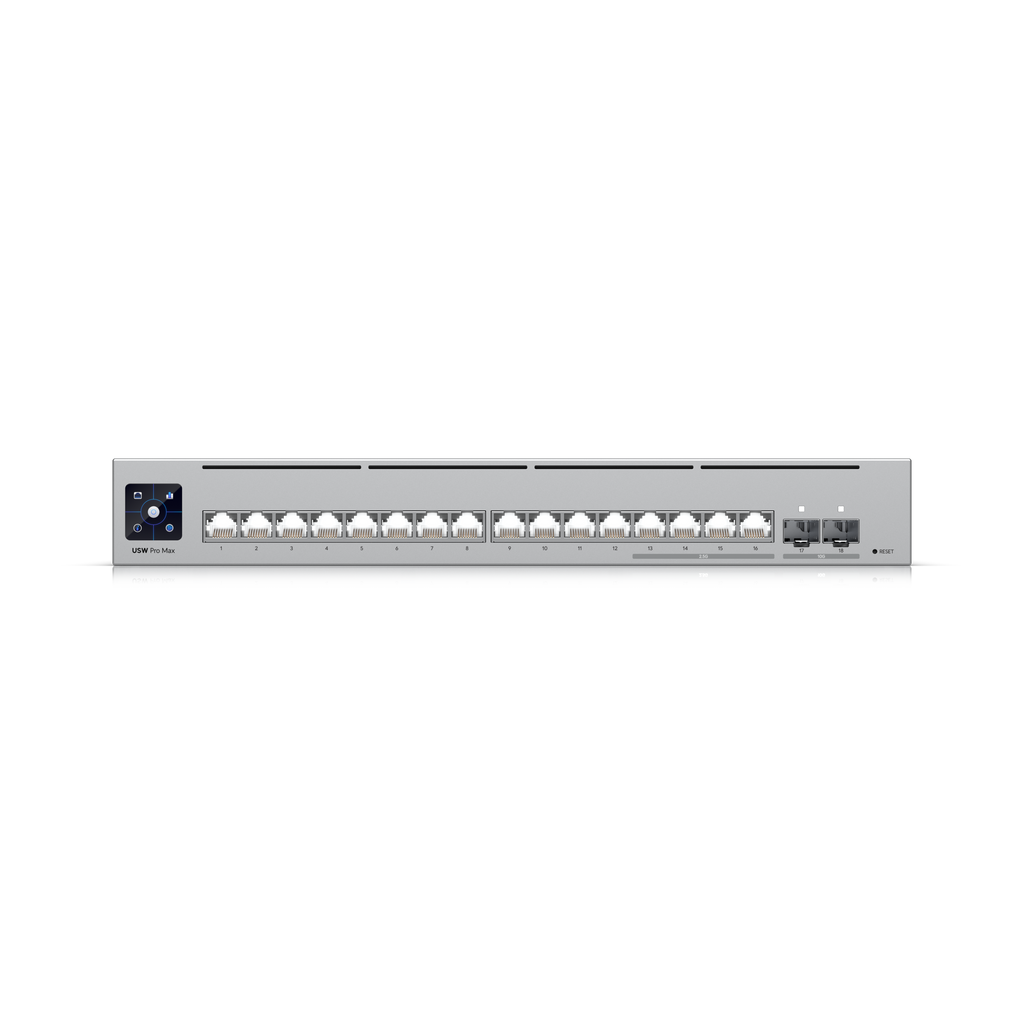

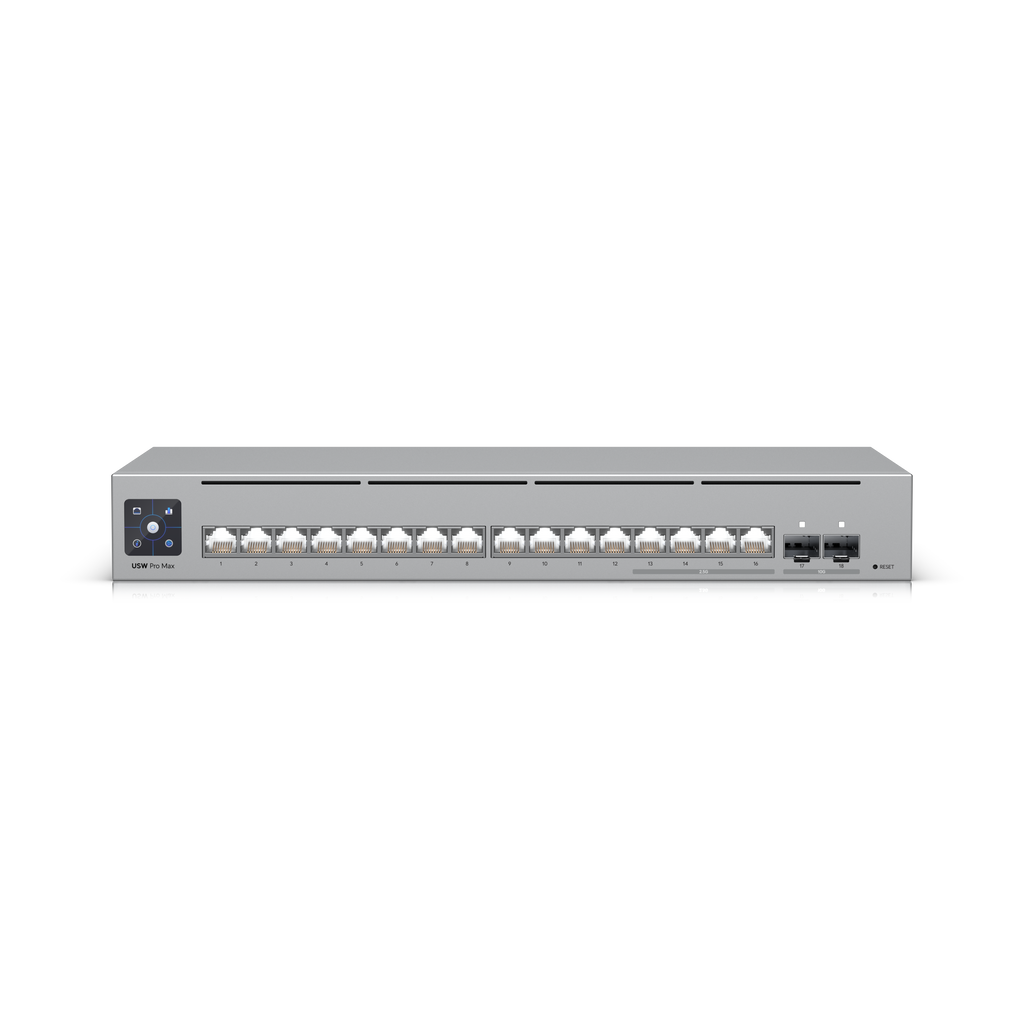

Switch Pro Max 16
USW-Pro-Max-16
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.Key features Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (4) 2.5 GbE RJ45 ports...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Key features
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports
Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Specifications
Overview
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| 1 GbE RJ45 | 12 (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Form Factor | Rack mount (1U), desktop, wall 1U rack-mounting requires add-on Rack Mount accessory |
Performance
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| Max. Power Consumption | 25W |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | USB Type-C, 5V DC, 5A |
| Power Supply | AC/DC, external, 25W |
| Supported Voltage Range | 4.8—5.2V DC/USB |
| Management | Ethernet AR |
| Heat Dissipation | 85.3 BTU/hr |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
Software
| UniFi Network | Version 8.1.127 and later |
