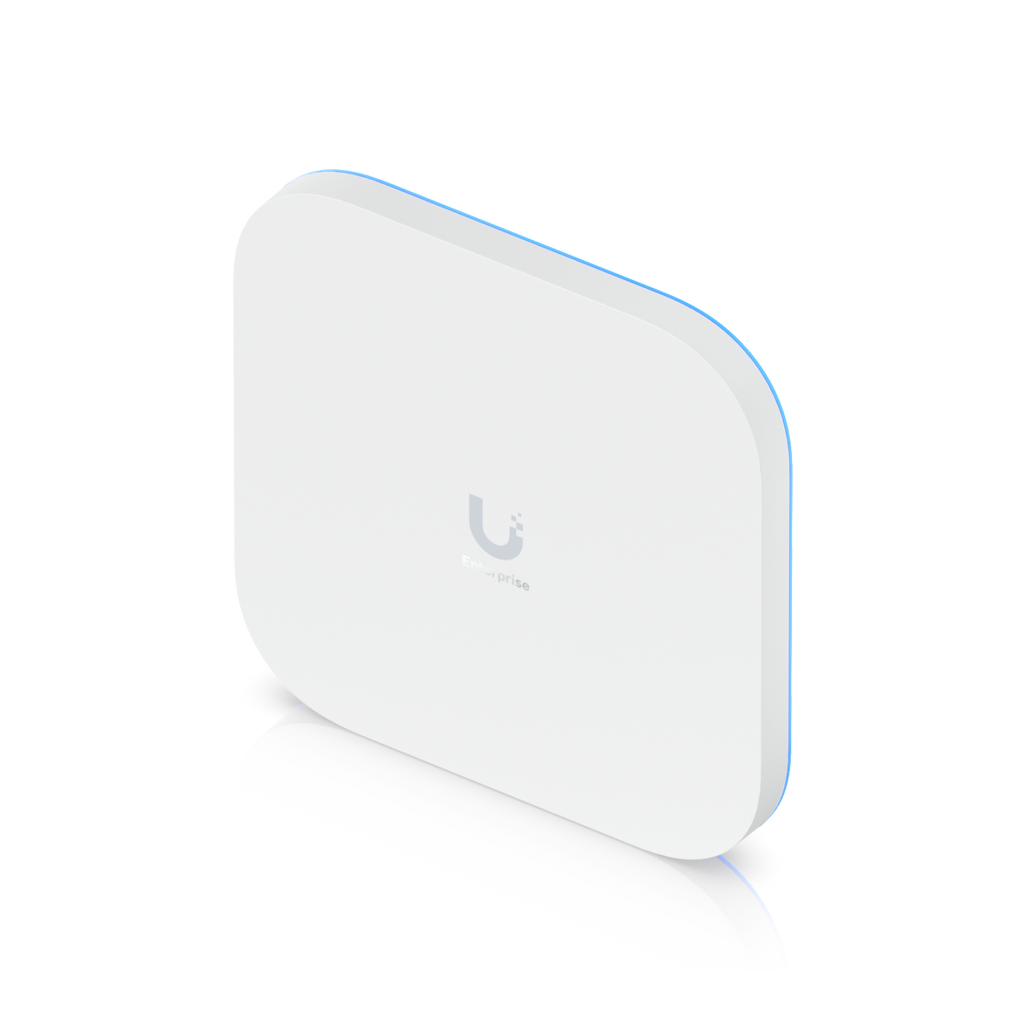

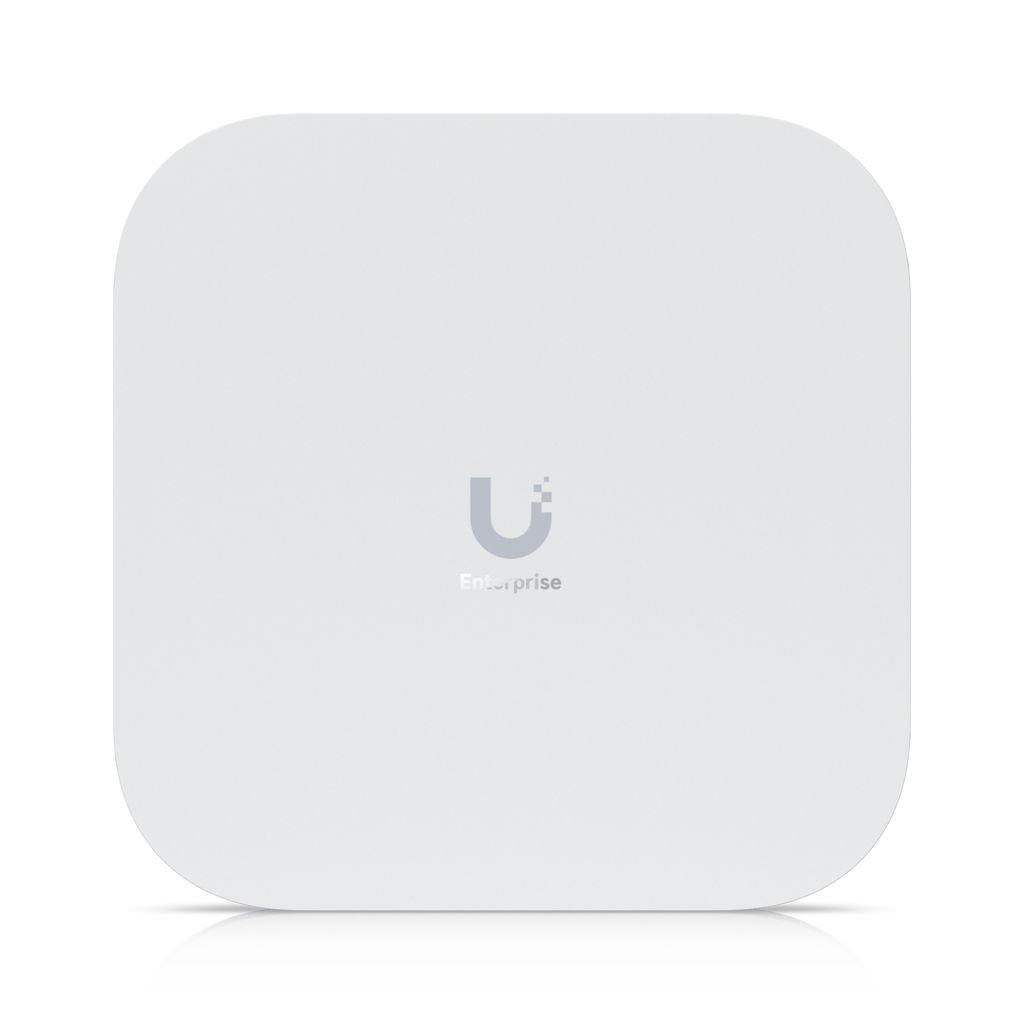

Access Point E7
E7-US
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.Note. 6 GHz operation is supported in these countries.Long-range 6...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Note. 6 GHz operation is supported in these countries.
Long-range 6 GHz performance with AFC available in FCC/IC region only.
Key features
WiFi 7 with 6 GHz support
10 spatial streams
Real-time spectral analysis for enhanced channel selection
Dedicated spectral analyzer radio
Long-range 6 GHz performance with AFC*
185 m² (2,000 ft²) coverage
1,000+ connected devices
(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

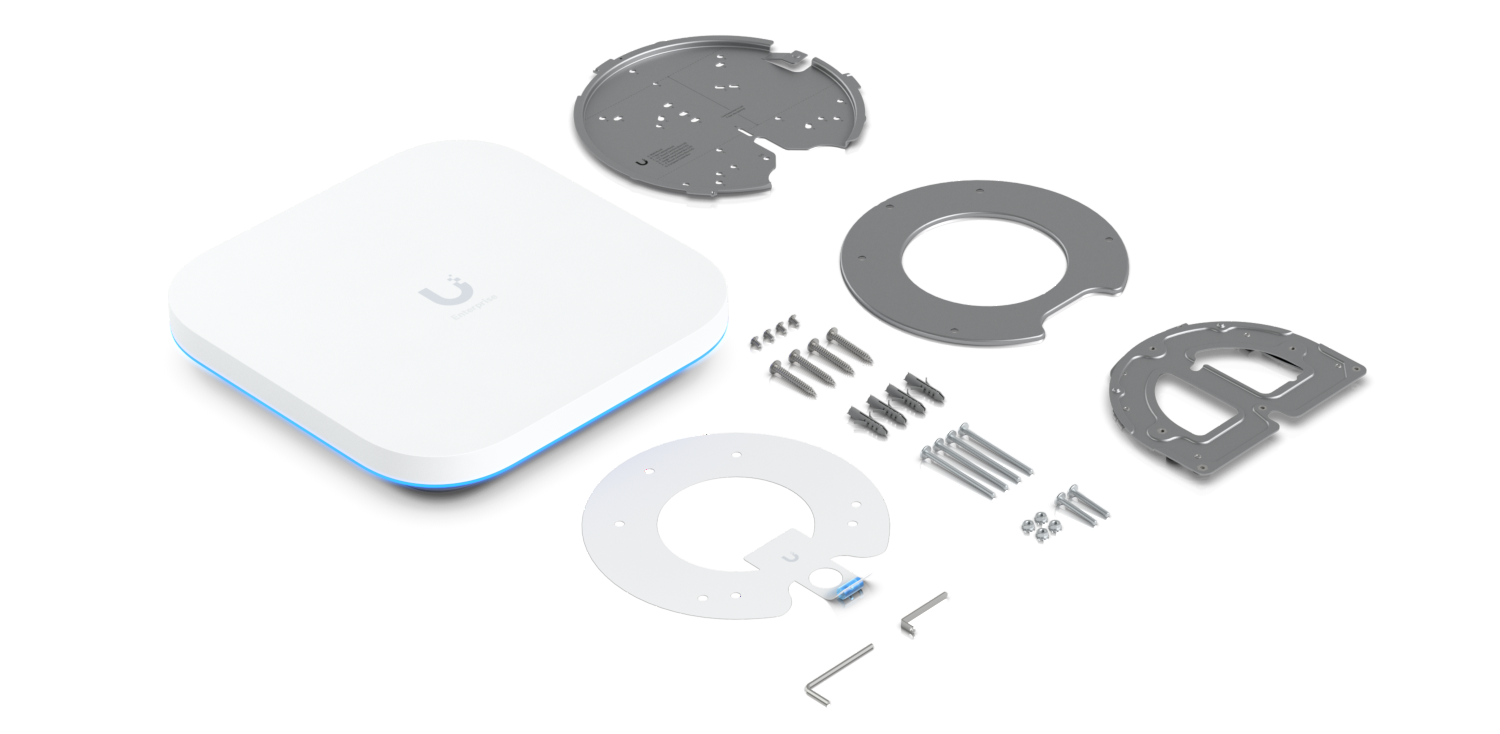

Backwards compatible mounting system**
Powered using PoE++
Note. 6 GHz operation is supported in these countries.
*Available in FCC/IC region only.
**WiFi Access Point Ceiling Mounts
Specifications
Overview
| Dimensions | 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7") |
| WiFi Standard | WiFi 7 With 6 GHz support |
| Spatial Streams | 10 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink | 10 GbE 1 GbE |
| Mounting | Ceiling, Wall, VESA (Pro Mount Included) |
| Power Method | PoE++ |
Performance
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 11.5 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 5 dBi |
| 6 GHz | 24 dBm / 30 dBm 30 dBm with 6 GHz Extended Range mode. Available in FCC/IC region only |
| 5 GHz | 30 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Hardware
| Max. Power Consumption | 43W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port |
| Weight | 1.8 kg (4 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| System | R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Certifications | CE, FCC, IC, Anatel: 06372-24-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 9.2.87 and later |
| Mobile App | iOS™ version 10.24.1 and later Android™ version 10.25.2 and later |
