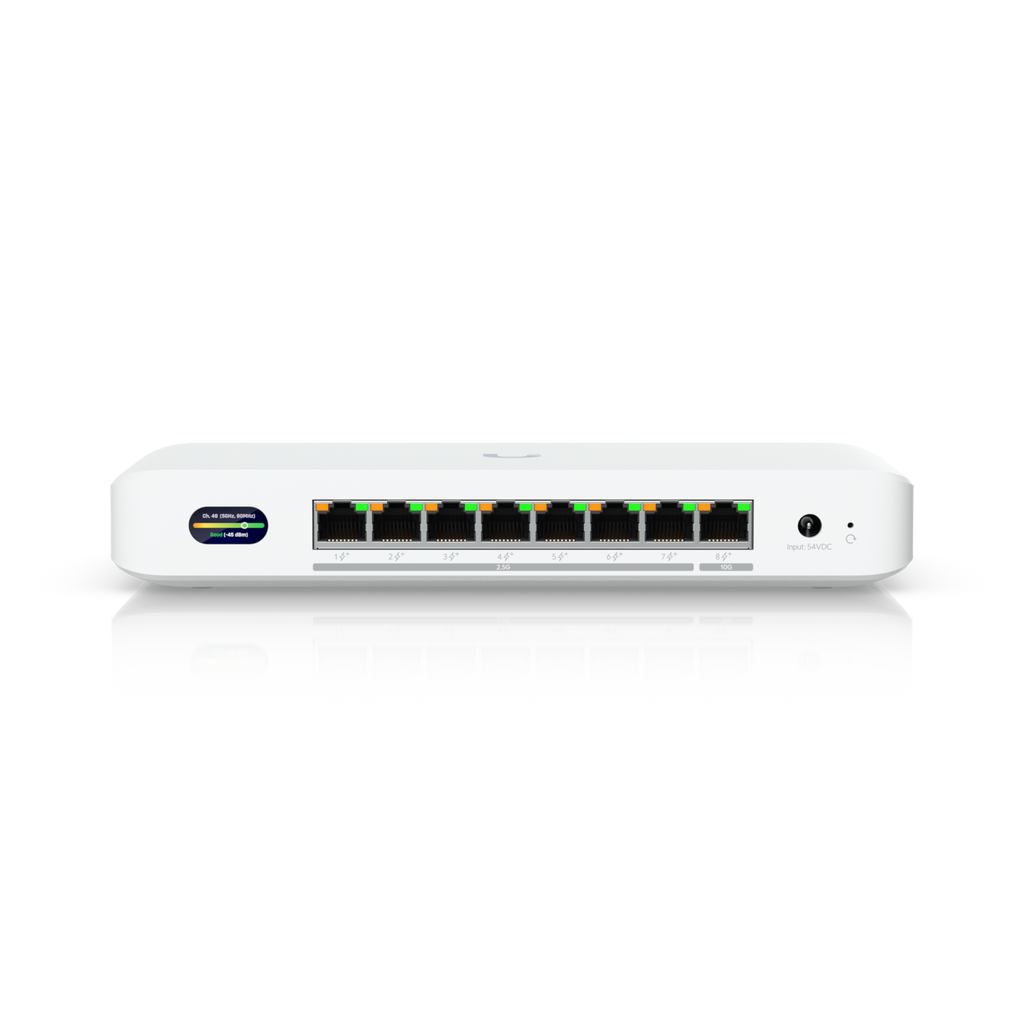

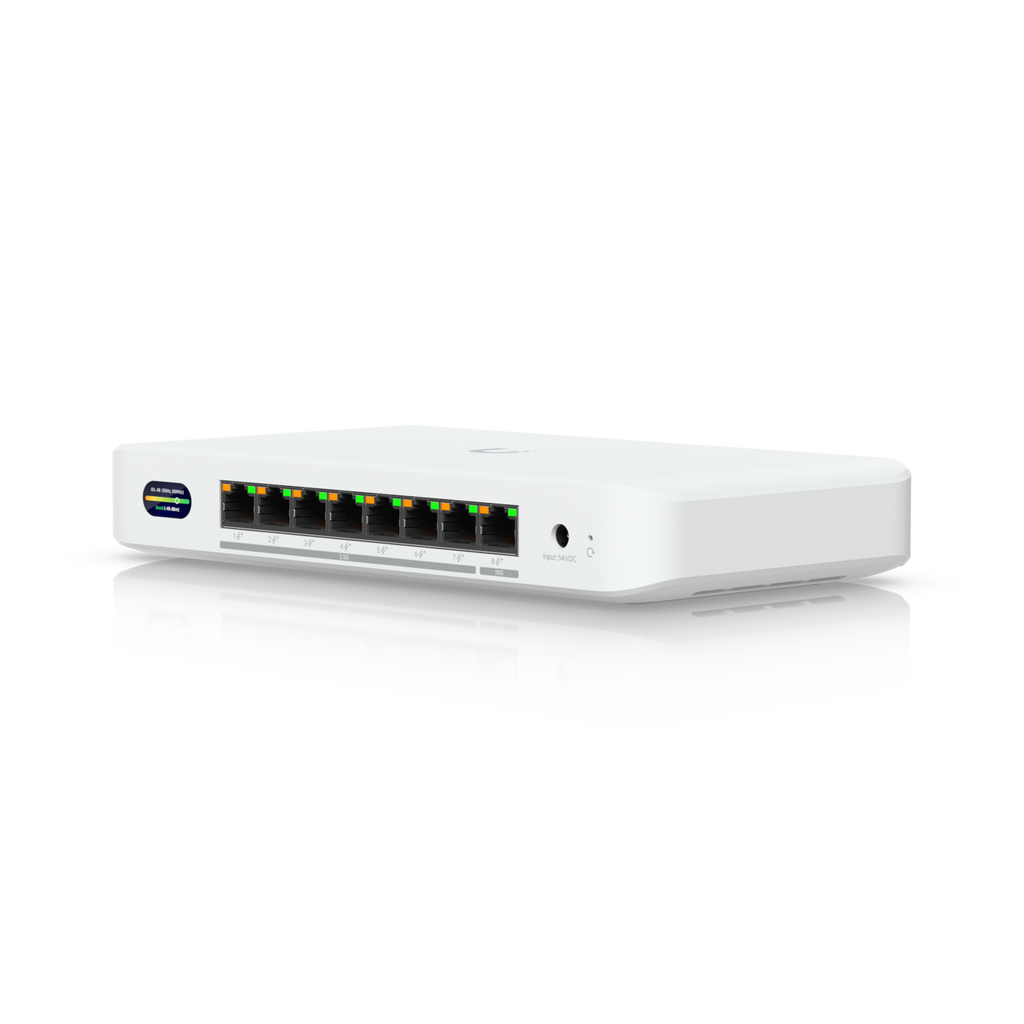

Device Bridge Switch
UDB-Switch-US
Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.*The Device Bridge Switch...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.
*The Device Bridge Switch provides 35W of PoE power with the included 60W adapter, or up to 185W with the optional 210W adapter.
Specifications
Overview
| Dimensions | 212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Mounting Locations | Desktop, wall |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
Performance
| 6 GHz | 2 x 2 |
| 5 GHz | 2 x 2 |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 6 GHz | 8 dBi |
| 5 GHz | 8 dBi |
| 6 GHz | 23 dBm |
| 5 GHz | 26 dBm |
| Max. Conducted TX Power | 26 dBm (Combined) |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA3 SAE (Always On) |
Hardware
| Max. Power Consumption | 25W (Excluding PoE output) |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports |
| PoE Interface | (8) PoE+ ports |
| Max. PoE Wattage per Port | 30W |
| Total PoE Availability | 60W AC adapter input: 35W 210W AC adapter input: 185W |
| Antennas | (1) Internal |
| Management | Ethernet WiFi |
| Channel Bandwidth | 20/40/80/160/240/320 MHz |
| Weight | Device: 548 g (1.21 lb) With mount: 563 g (1.24 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Button | (1) Factory reset |
| Certifications | CE, FCC, IC |
| Operating Frequency | Worldwide: 5150—5875 MHz 5945—7125 MHz |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 10.0.156 or later. |
