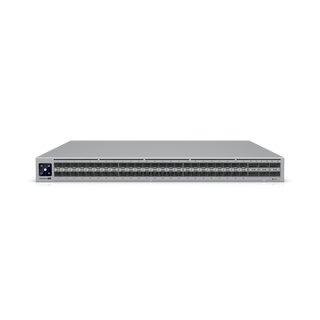

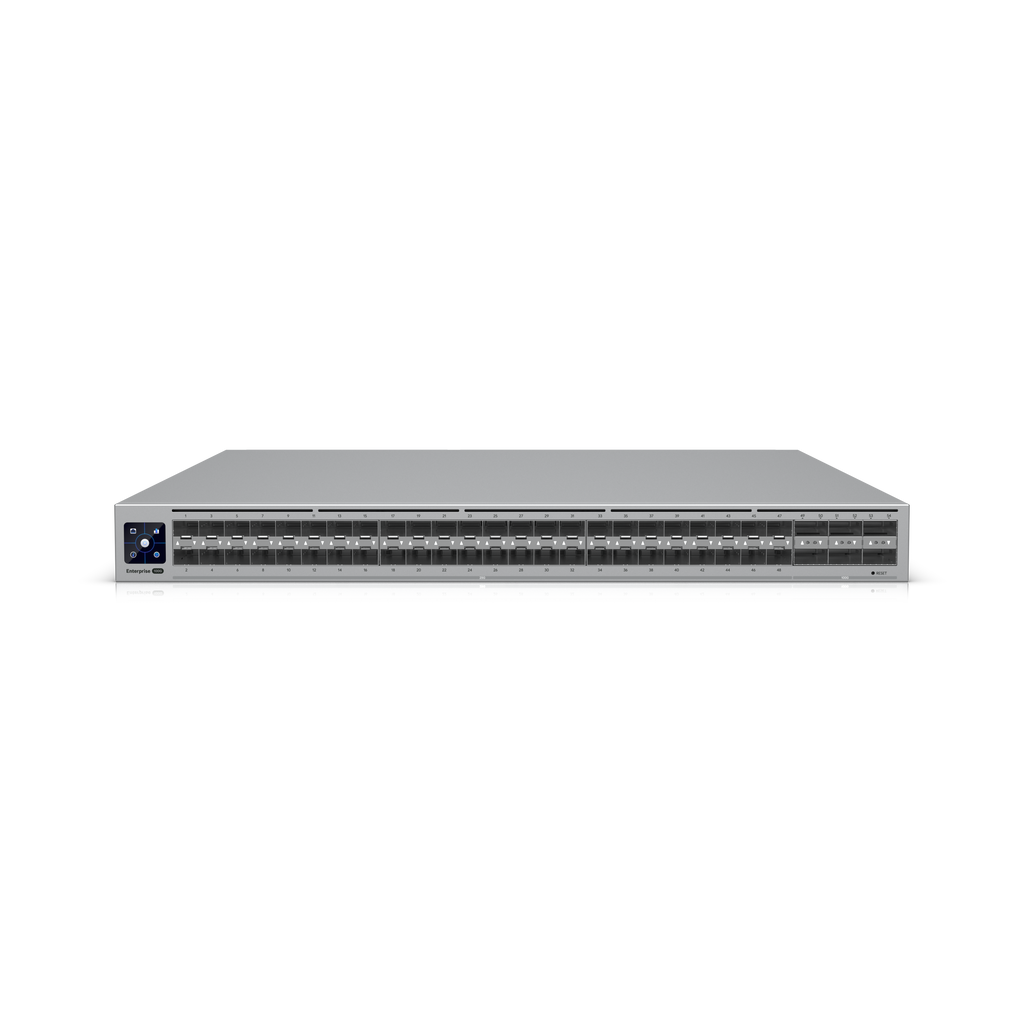

Switch Enterprise Campus Aggregation
ECS-Aggregation · US Version
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
Layer 3 automatic failover (VRRP) and OSPF support is scheduled for an upcoming UniFi Network Application release.
Key features
(48) 25G SFP28 and (6) 100G QSFP28 ports
Multi-Chassis Link Aggregation (MC-LAG) support*
Layer 3 automatic failover (VRRP) support**
BGP Dynamic Routing***

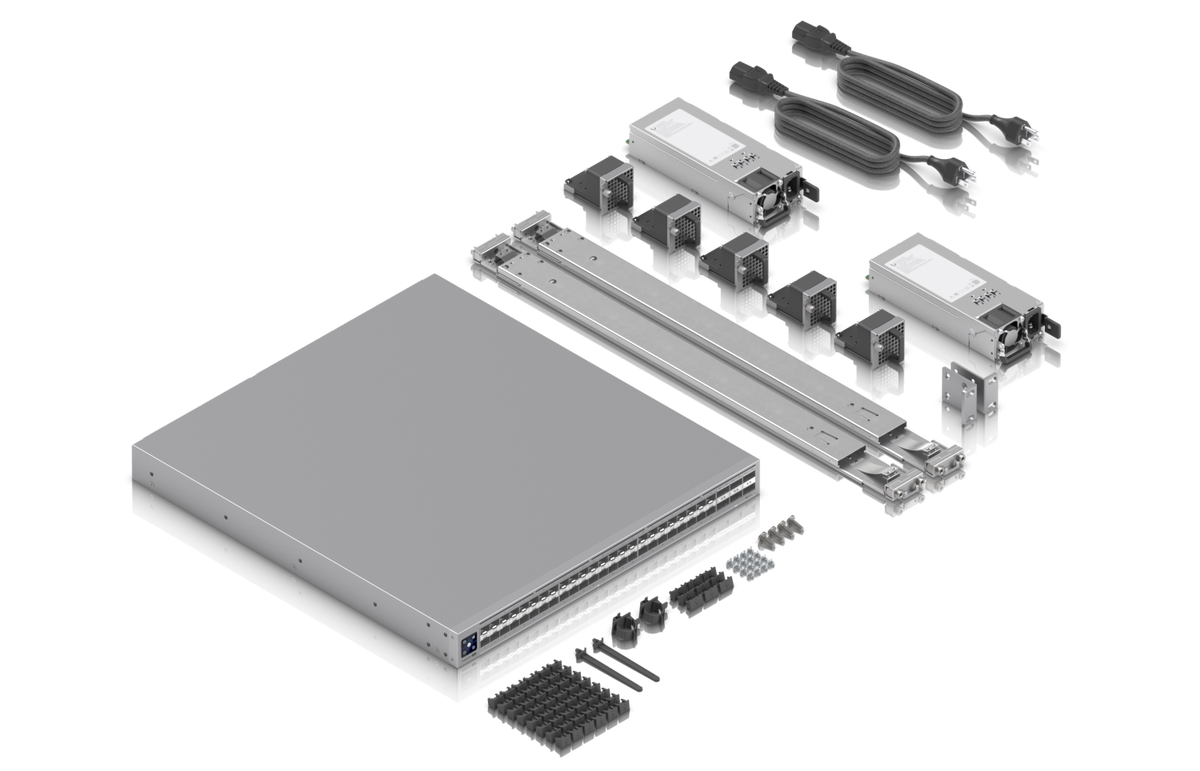

(2) included hot-swappable power modules, with 1 + 1 redundancy****
(5) included hot-swappable fan modules, with 4 + 1 redundancy
*Must be paired with another Enterprise Campus Aggregation.
**Scheduled for the next UniFi Network Application release.
***OSPF support is scheduled for an upcoming UniFi Network Application release.
****The second module is not pre-installed and ships in separate packaging.
Specifications
Overview
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
| 25G SFP28 | 48 (25G/10G) |
| 100G QSFP28 | 6 (100G/40G) Breakout cables are not supported |
| Redundancy | Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans |
| Form Factor | Rack mount (1U, Full-Depth) Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support. |
Performance
| Switching Capacity | 3.6 Tbps |
| Total Non-Blocking Throughput | 1.8 Tbps |
| Forwarding Rate | 2.4 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 24 MB |
| IPv4 | 512 |
| MAC | 512 |
Hardware
| Max. Power Consumption | 340W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 1160 BTU/hr |
| Weight | Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01327-25-08356 |
Software
| UniFi Network | Version 8.5.6 and later |
