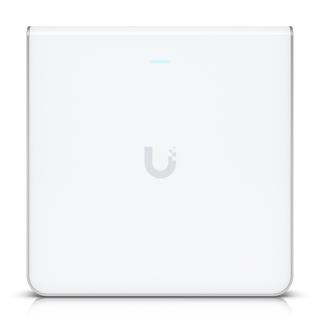

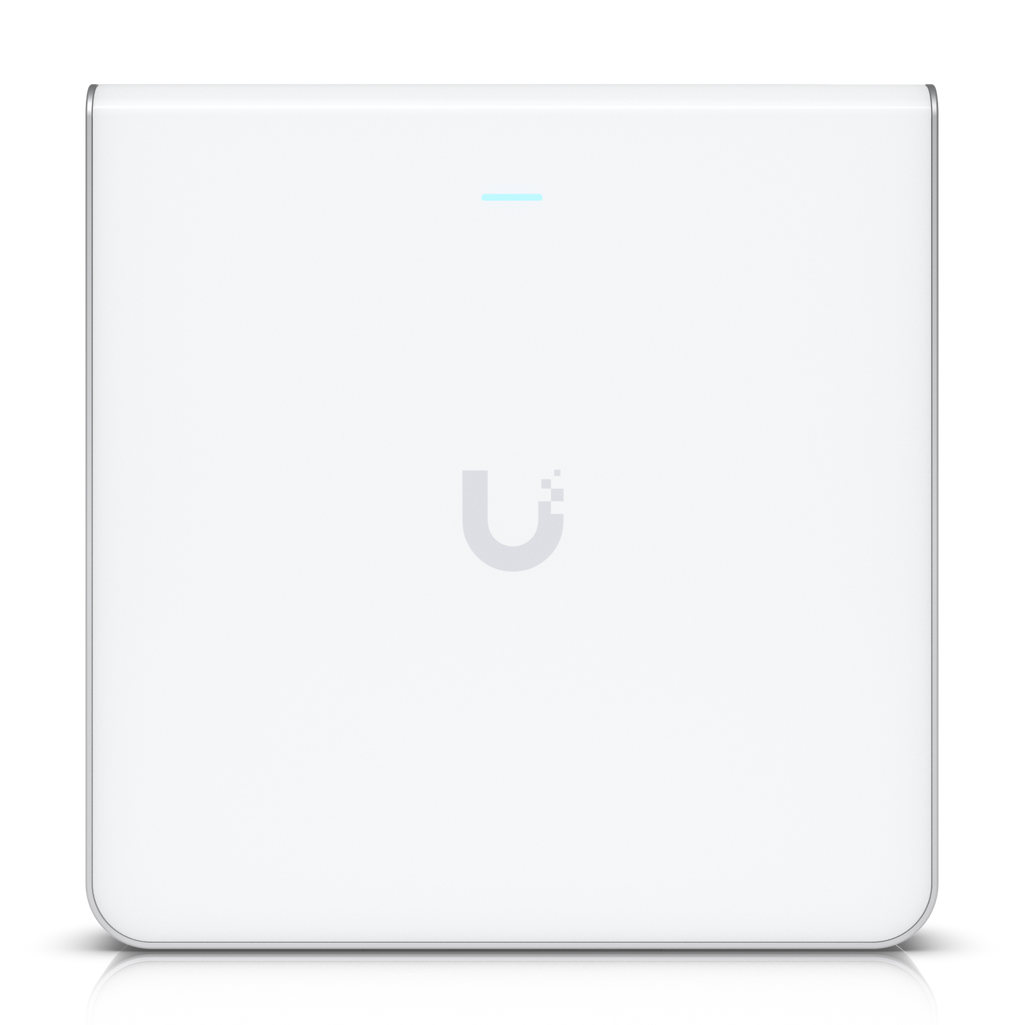

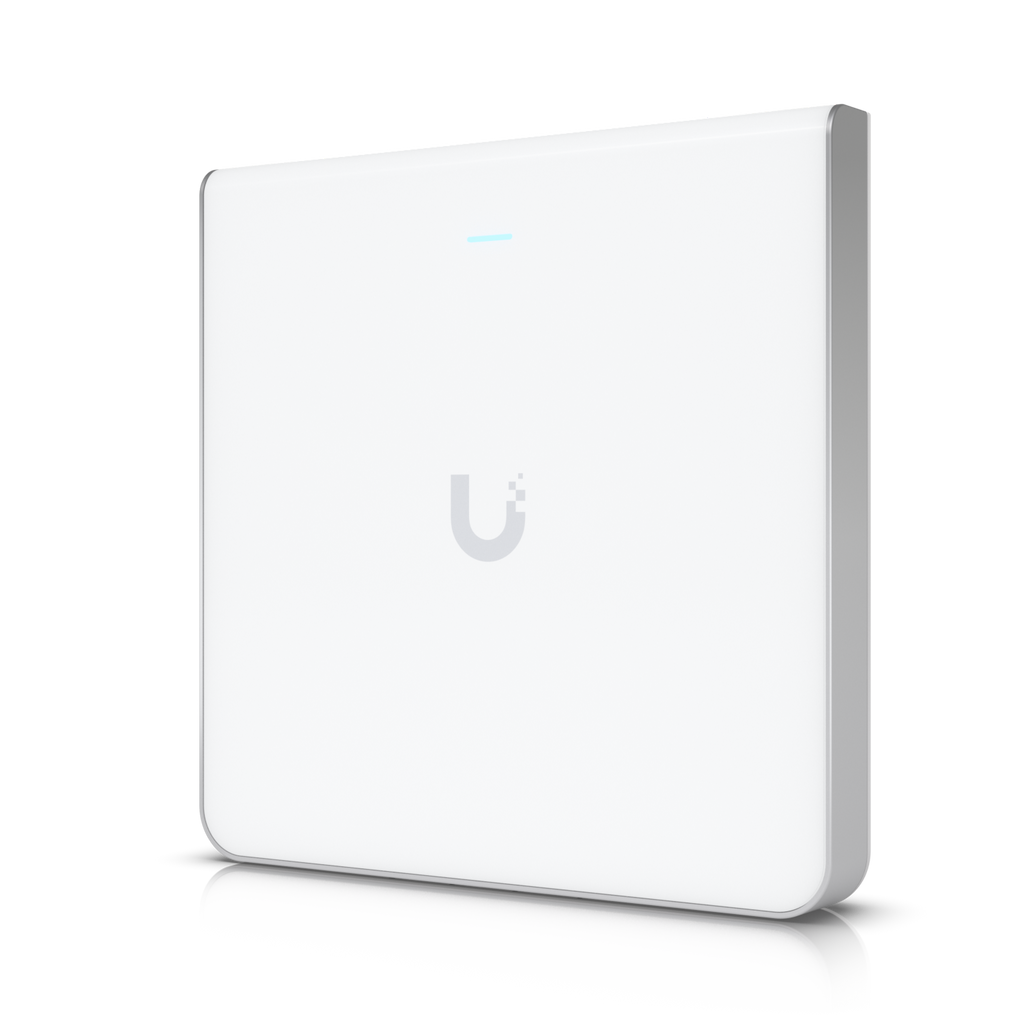

Access Point U6 Enterprise In-Wall
U6-Enterprise-IW-US
Wall-mounted WiFi 6E AP with 10 spatial streams, 6 GHz support, and a built-in 4-port switch. Designed for high-density office networks.Note. 6 GHz operation is supported in these countries.PoE++ required...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
Wall-mounted WiFi 6E AP with 10 spatial streams, 6 GHz support, and a built-in 4-port switch. Designed for high-density office networks.
Note. 6 GHz operation is supported in these countries.
PoE++ required for single-port PoE output.
Key features
WiFi 6E with 6 GHz support
10 spatial streams
115 m² (1,250 ft²) coverage
600+ connected devices
Powered using PoE+/PoE++*
(4) GbE ports with (1) PoE output
2.5 GbE uplink
Note. 6 GHz operation is supported in these countries.
*PoE++ input required for single-port PoE output.
Specifications
Overview
| Dimensions | 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3") |
| WiFi Standard | WiFi 6E With 6 GHz support |
| Spatial Streams | 10 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |
| Mounting | Wall (Mount Included) |
| Power Method | PoE+ PoE++ (Required for PoE output) |
Performance
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 4.8 Gbps (BW160) |
| 5 GHz | 4.8 Gbps (BW160) |
| 2.4 GHz | 573.5 Mbps (BW40) |
| 6 GHz | 5.8 dBi |
| 5 GHz | 5.8 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 26 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
Hardware
| Max. Power Consumption | 21W (Excluding PoE output) |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) Data in: 1/2.5 GbE RJ45 port (4) Data out: GbE RJ45 ports |
| Weight | 884 g (1.9 lb) |
| Management | Ethernet Bluetooth |
| Built-In Switch | (4) GbE ports with (1) PoE output |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Certifications | CE, FCC, IC, Anatel: 04643-24-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 6100 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz For worldwide, it depends on the regulatory region |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 6.0.45 and later |
Downloads & documents
Build around the Access Point U6 Enterprise In-Wall.
It's already in your kit below. Add a gateway and PoE and the discount starts working. Discount tiers climb with the bundle — the bars fill as you build.
Type your address. We'll spec the building.
Square footage, floors, rooms, construction type — turned into an AP count, a switch size, and a gateway that fits. No guesswork, no overbuying.
Four quick questions size the kit. Property-records autofill is in the build phase.
Enter an address and the plan appears here —
property facts first, then the kit.
Pick the right one, not the biggest one
The honest line-up from wifi & access points. Most buyers reading this page should buy the middle column.
Access Point U7 Pro XGS
Access Point U6 Enterprise In-Wall

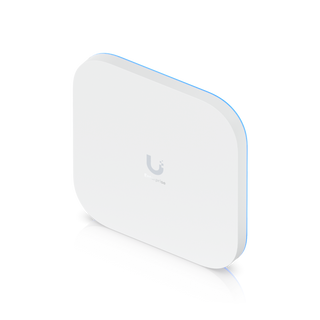

Access Point E7Asked before checkout
