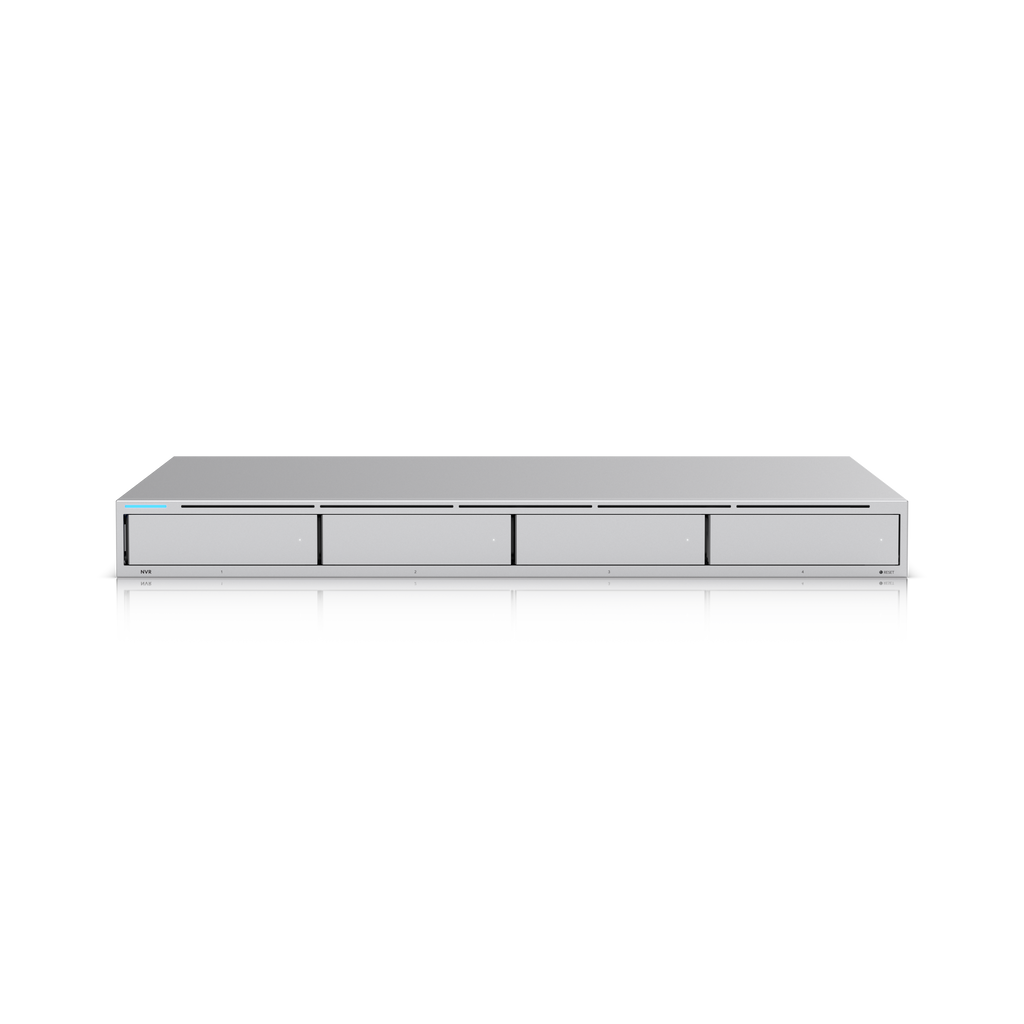

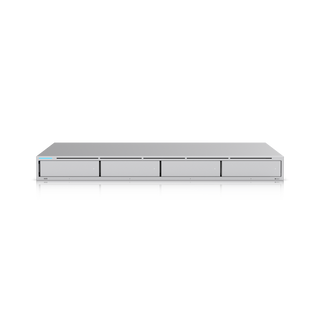

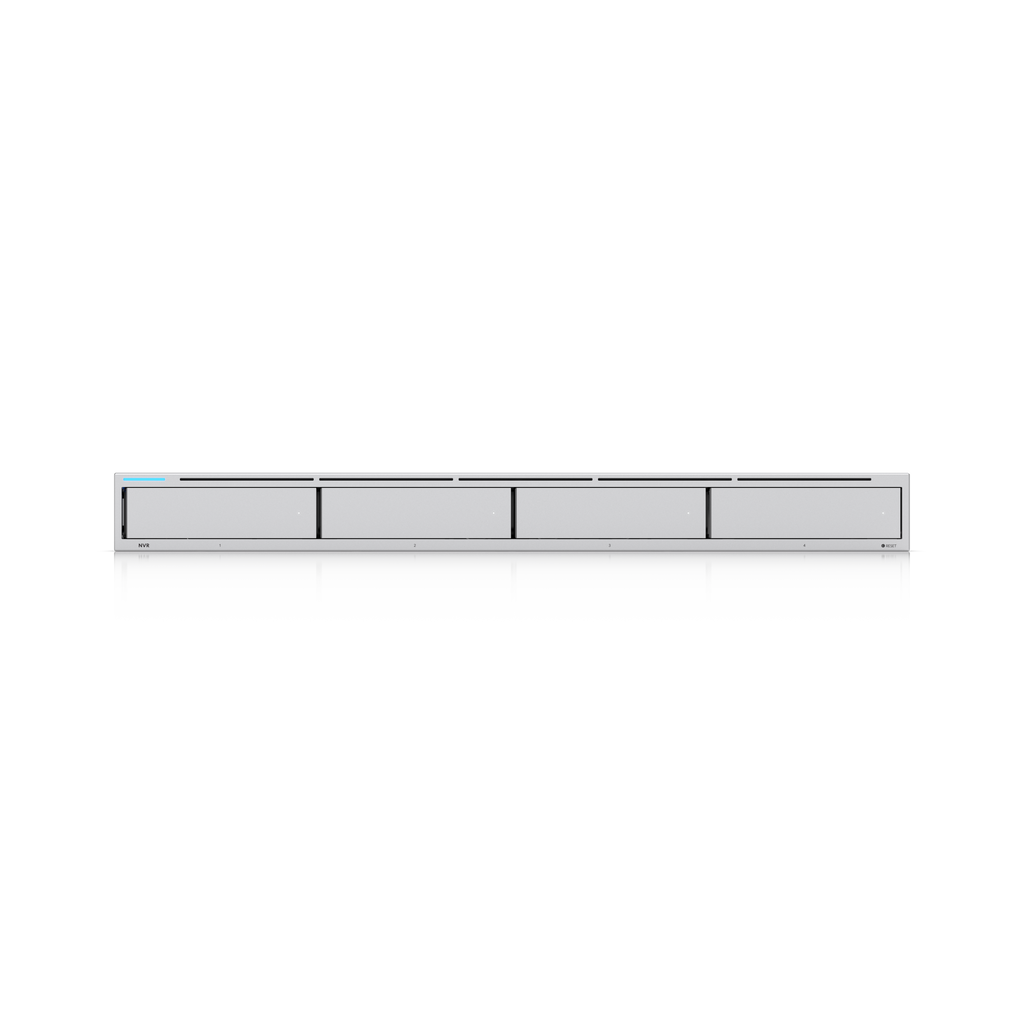

Network Video Recorder
UNVR
A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (18) 4K cameras or (60) Full HD cameras.Key features (4) 3.5" HDD...
Or build it into a bundle — save up to 15% ↓What it is, and who it is for.
What it needs to run
PoE power and a UniFi Network host. If you have neither, both are in the bundle builder below.
A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (18) 4K cameras or (60) Full HD cameras.
Key features
(4) 3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
DC power backup-ready
Specifications
Overview
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Managed Cameras | (60) HD (30) 2K (18) 4K |
| Managed Access Hubs | 150+ |
| Storage Capacity | (4) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ port (1) GbE RJ45 port |
| Form Factor | Rack mount (1U) |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
Hardware
| Hard Drive Capacity | (4) 2.5/3.5” HDD / SSD support |
| Max. Power Budget for Drives | 75W |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 10.43A |
| Power Supply | AC/DC, internal, 120W |
| Processor | Quad ARM® Cortex®-A57 cores at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet |
| Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 01924-21-08356 |
Downloads & documents
